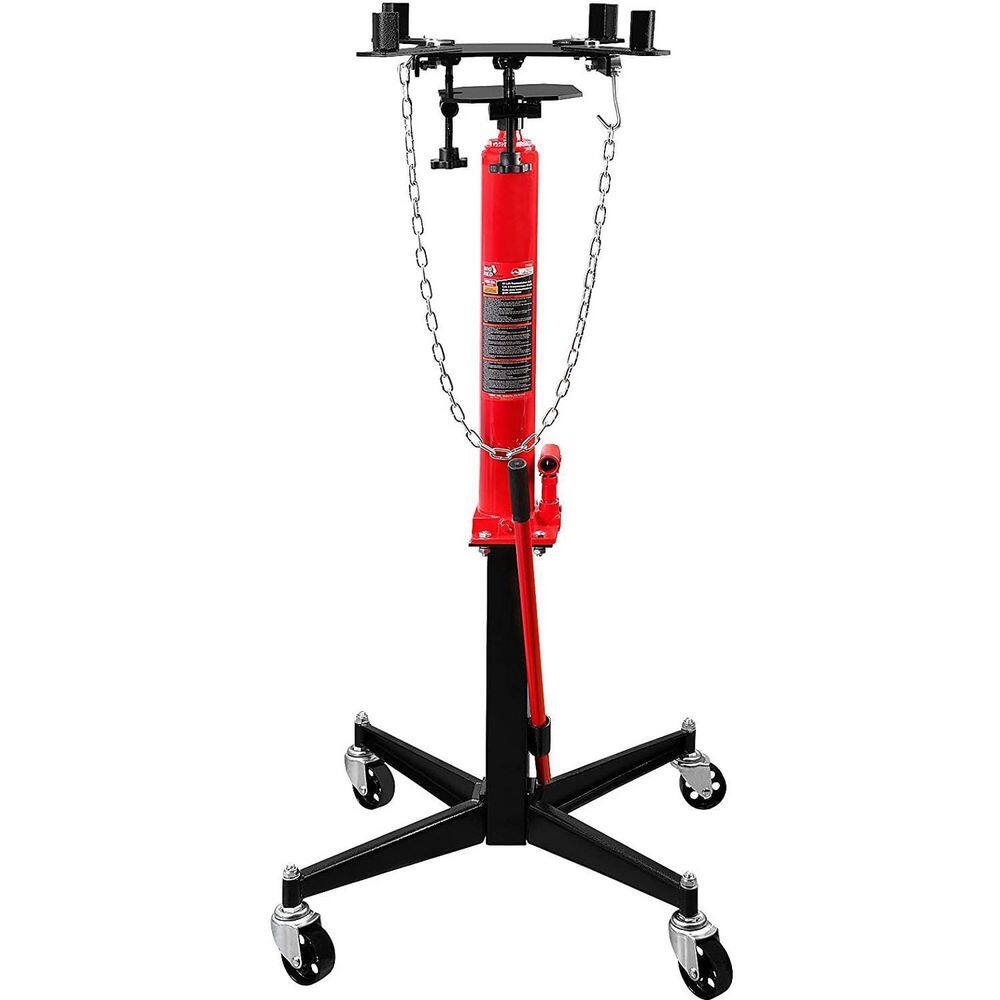

Big Red TR4053 1/2-Ton Telescoping Transmission Floor Jack
Original price was: $176.05.$158.45Current price is: $158.45.

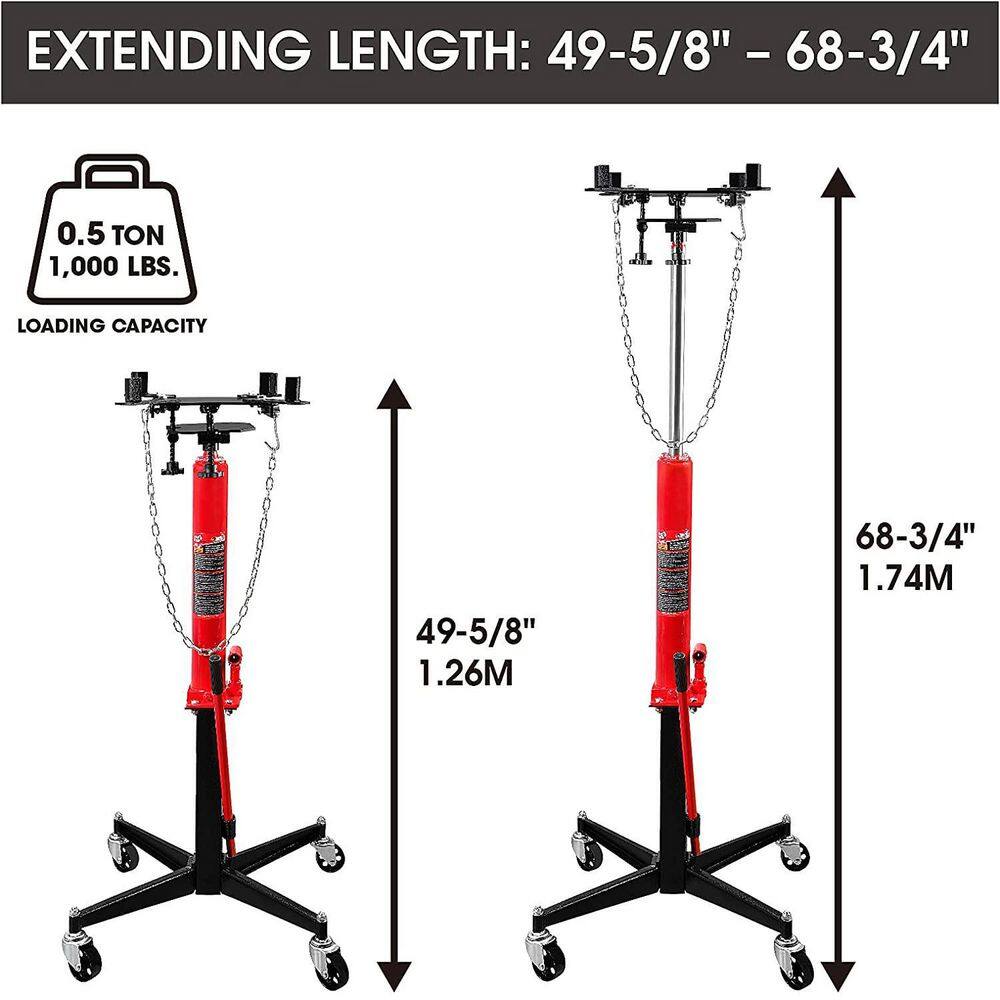

- 1/2 ton capacity pedestal transmission jack with 49.6 inches to 68.7 inches high lift range
- Durable steel and dipped enamel finish
- Designed to use with in-ground and above-ground lifts and easy to remove or install any transmission from car or light truck, manual or automatic

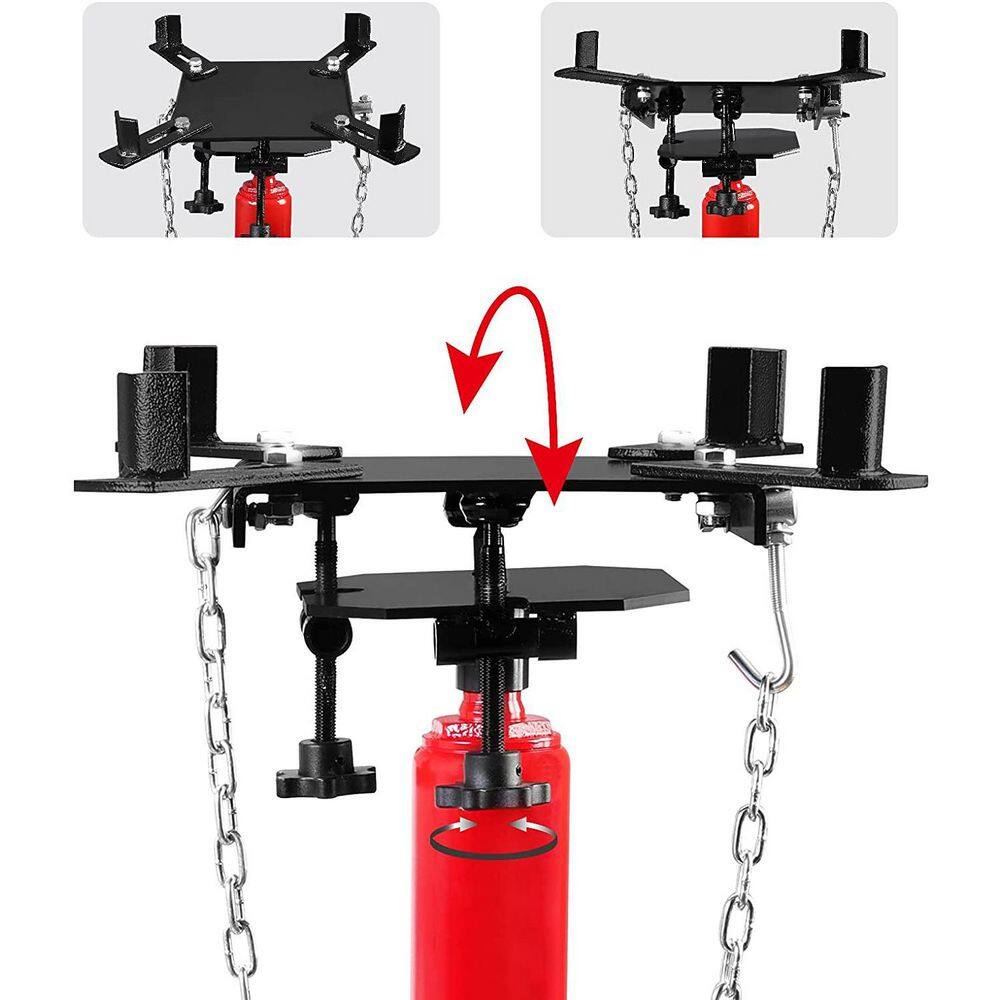

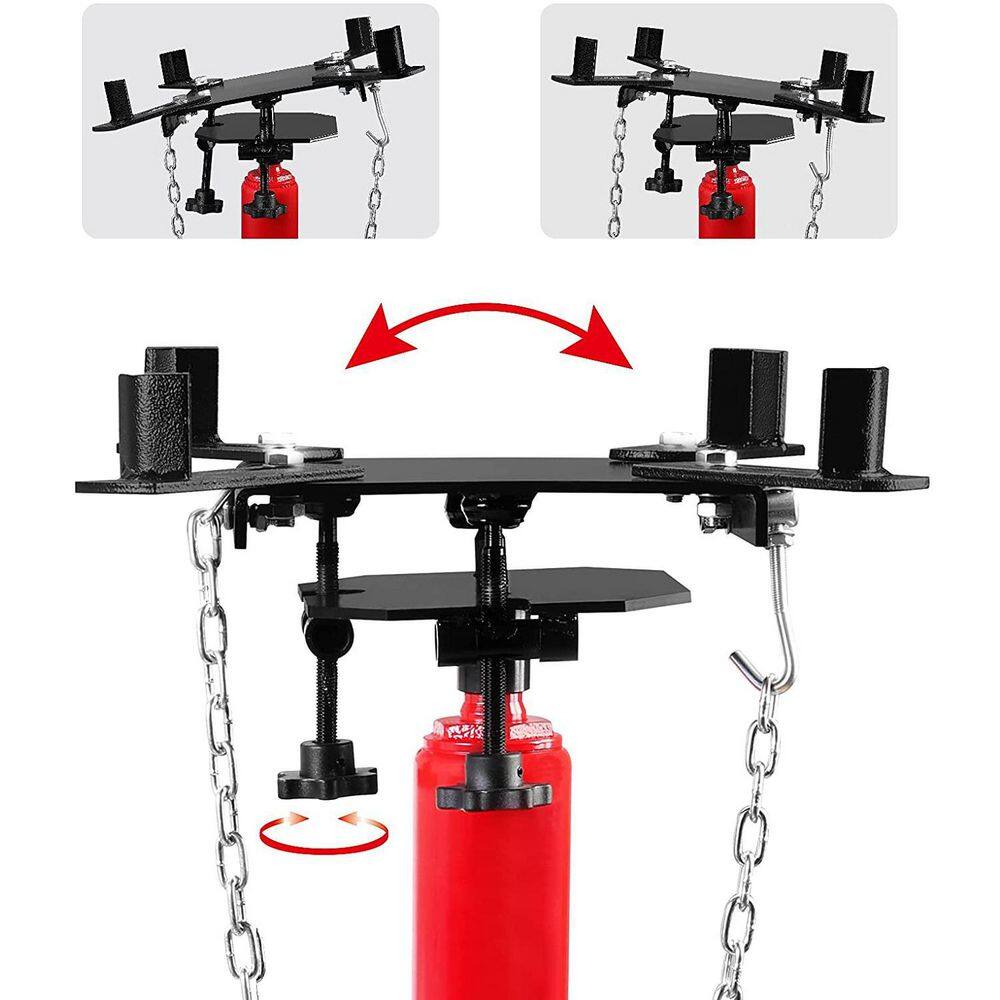

- Saddle adjusts to fit any transmission and safety chain tilts forward, backward and side-to-side
- 4-leg base with 3 inches steel wheels that swivel full 360 degrees on ball bearing casters
- California residents
Big Red TR4053 1/2-Ton Telescoping Transmission Floor Jack
This 1/2 ton capacity pedestal transmission jack has all the quality features you want. Durable steel, dipped enamel finish and 49.6 inches to 68.7 inches high lift range. Rolls smoothly under hoisted vehicle, making it easy to remove or install any transmission from car or light truck, manual or automatic. Designed to use with in-ground and above-ground lifts. Release valve for control of lowering. Adjustable saddle with corner brackets and safety chains. Hardware and instructions included. Saddle adjusts to fit any transmission, safety chain tilts forward, backward and side-to-side, 1 piece jack handle, stable 39-1/2 inches x 39-1/2 inches 4-leg base and 3 inches steel wheels swivel full 360 degrees on ball bearing casters.
- 1/2 ton capacity pedestal transmission jack with 49.6 inches to 68.7 inches high lift range
- Durable steel and dipped enamel finish
- Designed to use with in-ground and above-ground lifts and easy to remove or install any transmission from car or light truck, manual or automatic
- Saddle adjusts to fit any transmission and safety chain tilts forward, backward and side-to-side
- 4-leg base with 3 inches steel wheels that swivel full 360 degrees on ball bearing casters
- California residentssee Prop 65 WARNINGS
Dimensions
| Base Length (in.) | 23.03 | Base Width (in.) | 22.64 |
|---|---|---|---|
| Collapsed height (in.) | 49.61 | Handle Length (in.) | 21.65 in |
| Product Depth (in.) | 23.03 in | Product Height (in.) | 51.77 in |
| Product Width (in.) | 22.64 in |
Details
| Features | Rust Resistant | General Part Type | Transmission Jack |
|---|---|---|---|
| Ideally Used For | General | Included | Adjustable Saddle, Chain, Handle, Mounting Hardware, Swivel Ball Bearing Casters |
| Material | Steel | Maximum Lift Height (in.) | 68.9 in |
| Mechanism type | Hydraulic | Minimum Lift Height (in.) | 49.61 |
| Product Weight (lb.) | 73.85 lb | ||
| Tilt Capacity Back (degrees) | 7.5 | Tilt Capacity Front (degrees) | 7.5 |
| Tilt Capacity Side (degrees) | 7.5 | Weight Capacity (lb.) | 1000 lb |
Warranty / Certifications
| Manufacturer Warranty | Limited 1 Year Manufacturer Warranty |
|---|
