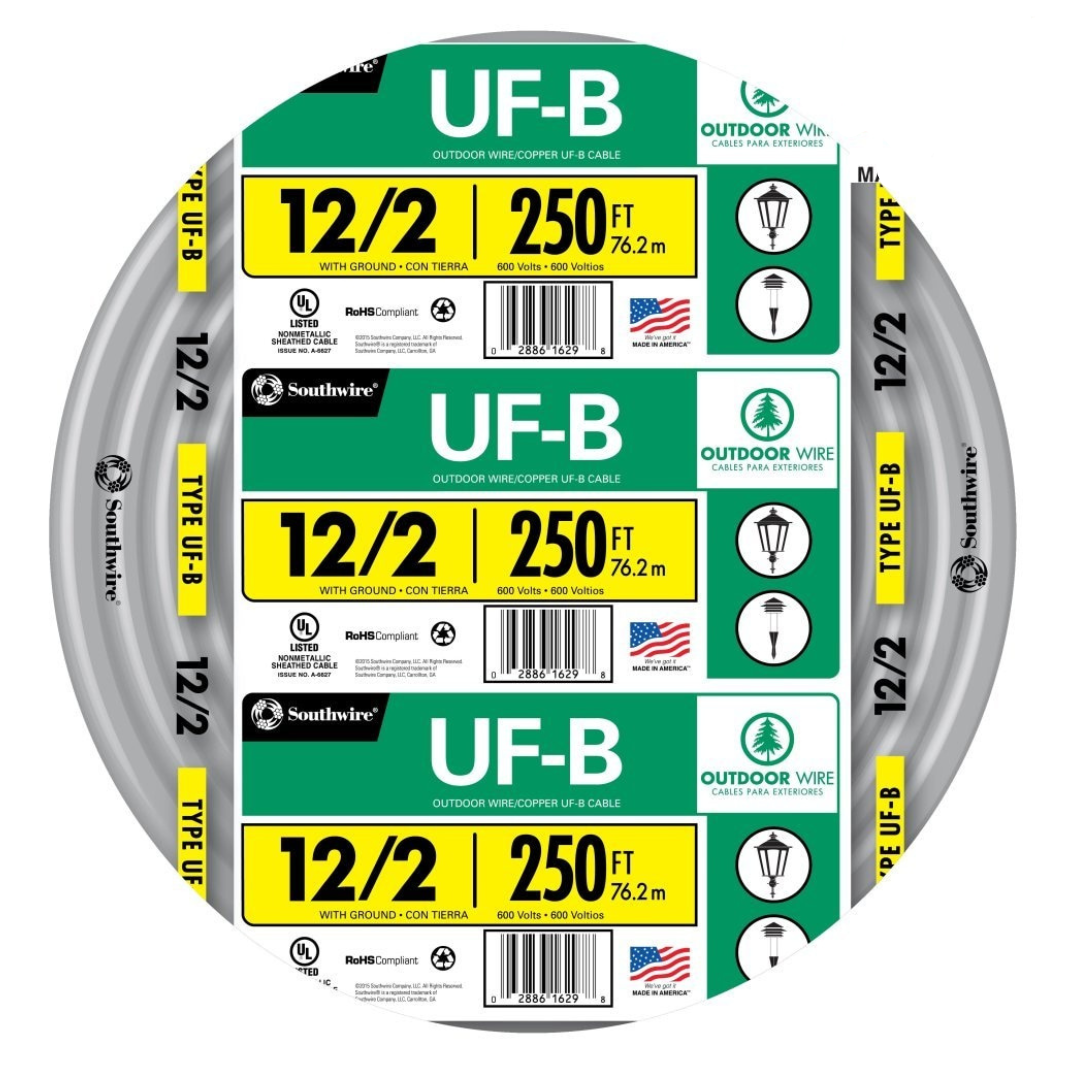

Southwire 250-Feet 12 / 2 Solid UF-B Wire W/G ( By-the-roll )
Original price was: $178.00.$154.86Current price is: $154.86.
- Cable Length (Feet): 250
- Weight (lbs.): 23.7835
Out of stock
Southwire 250-Feet 12 / 2 Solid UF-B Wire W/G ( By-the-roll )

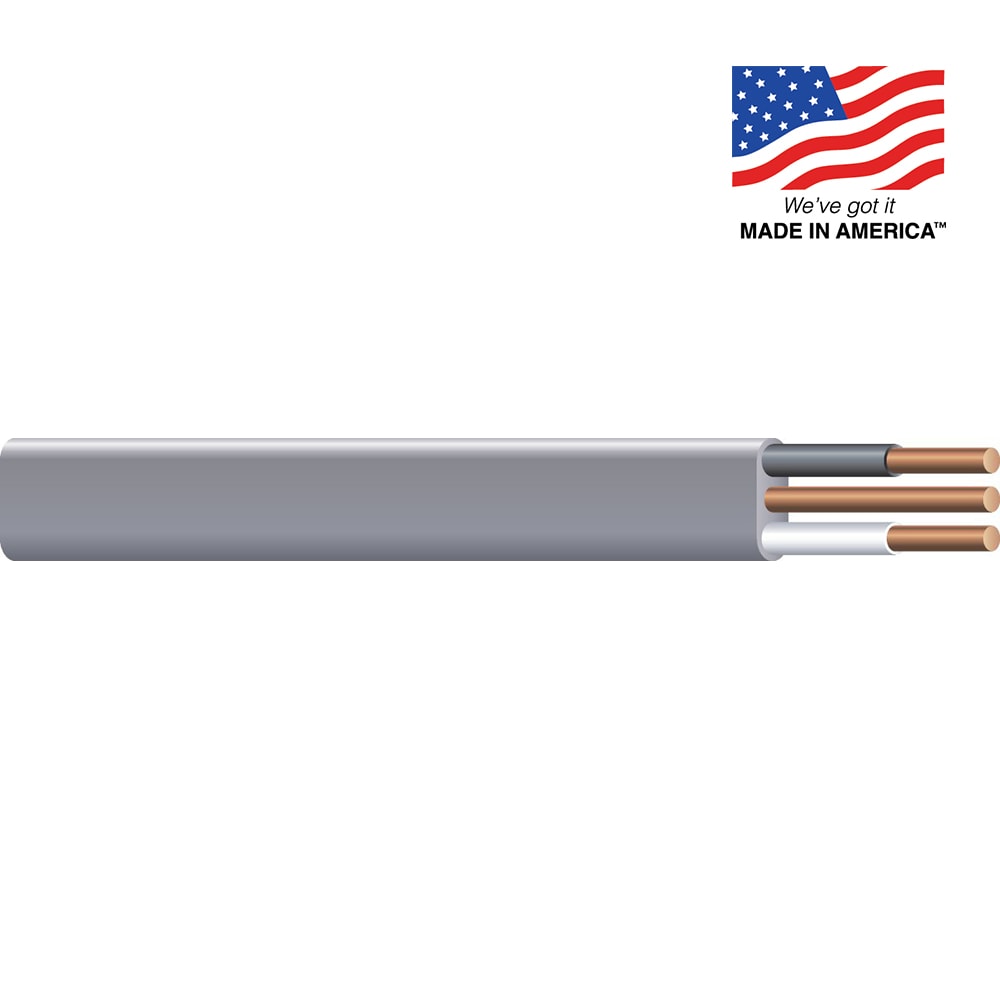

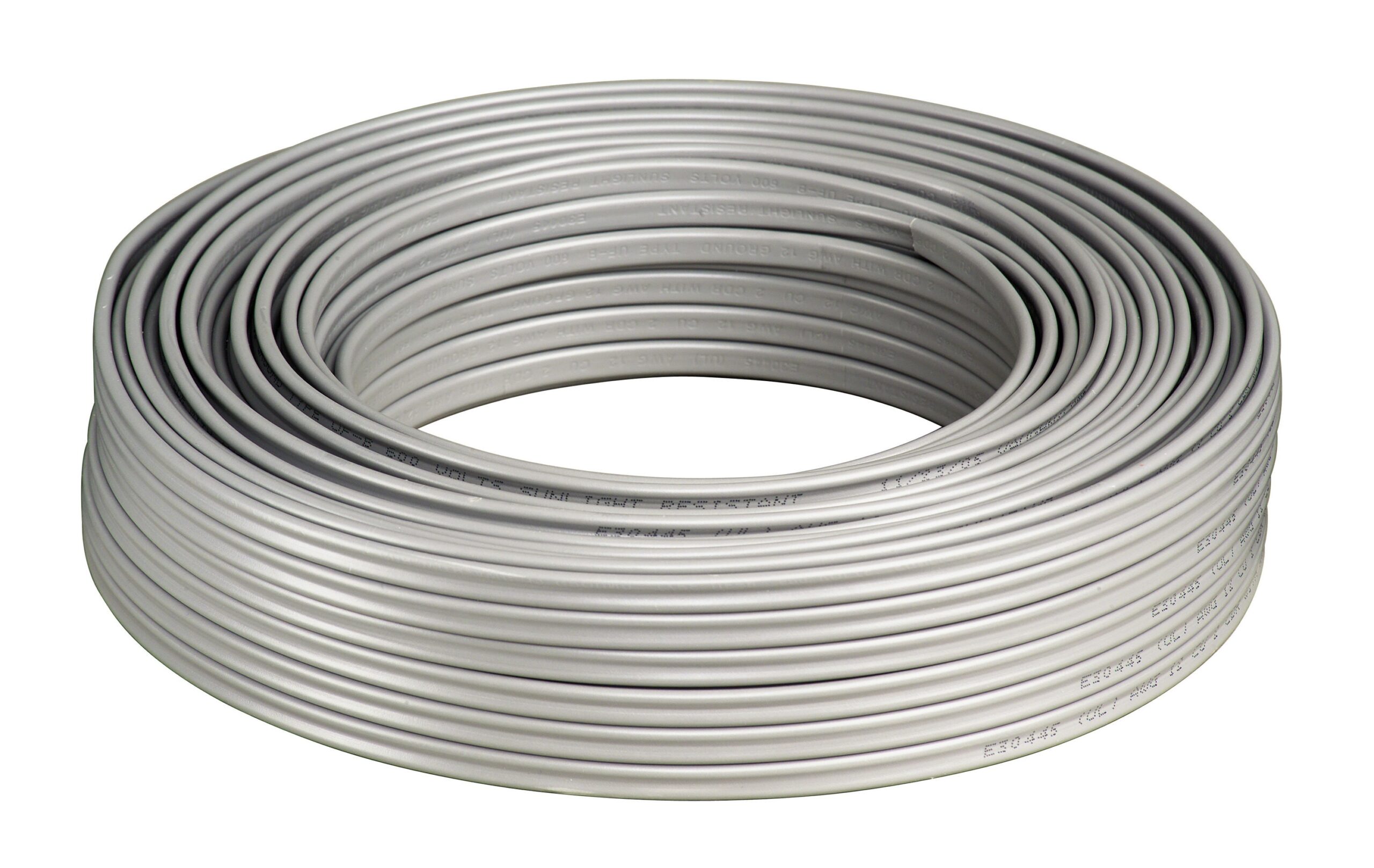

Southwire’s copper UF-B cable is used in applications that include outside lamp posts, pumps and other loads. It can also be used for outbuildings such as garages and barns. UF-B feeds from a distribution point in an existing building. UF-B has a heat capacity of 90°C and is rated at 600-Volt. UL Listed.
Highlights
- Conductors are made of annealed (soft) copper
- PVC insulation and a nylon, color coded jacket
- Used outdoors for direct burial
- Used indoors for wet or corrosive locations
- Jacketed with sunlight, moisture and fungus resistant gray PVC
Specifications
| General | |||
|---|---|---|---|
| Sub-Brand | N/A | ||
| Dimensions | |||
|---|---|---|---|
| Cable Length (Feet) | 250 | Weight (lbs.) | 23.7835 |
| Features | |||
|---|---|---|---|
| Commercial/Residential | Commercial/Residential | Shielded | No |
| Direct Burial | Yes | Stranded or Solid | Solid |
| Fire Resistant | No | Use Location | Indoor/Outdoor |
| Ground Wire | Yes | UV Resistant | Yes |
| Maximum Amperage | 20 | Voltage Rating | 600 |
| Moisture Resistant | Yes | Wire Cut Type | By-the-roll |
| Number of Conductors | 2 | Wire Gauge | 12 |
| RoHs Compliant | Yes | ||
| Compatibility | |||
|---|---|---|---|
| Conduit Compatible | No | ||
| Certifications | |||
|---|---|---|---|
| CA Residents: Prop 65 Warning(s) | No | Safety Listing | UL safety listing |
| Miscellaneous | |||
|---|---|---|---|
| UNSPSC | 60104900 | ||
| Brand |
|---|
