Square D Homeline 150 -Amp 30 -Spaces 60 -Circuit Indoor Main breaker Plug-On Neutral Load Center (Value Pack)
The Square D Homeline Value Pack 150 Amp 30-Space 60-Circuit Indoor Convertible Main Breaker Load Center for Plug-on Neutral breakers includes the cover and a selection of breakers. It is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and is compatible with Homeline circuit breakers. Square D Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline breaker boxes are engineered for fast installation and wire savings.
Highlights

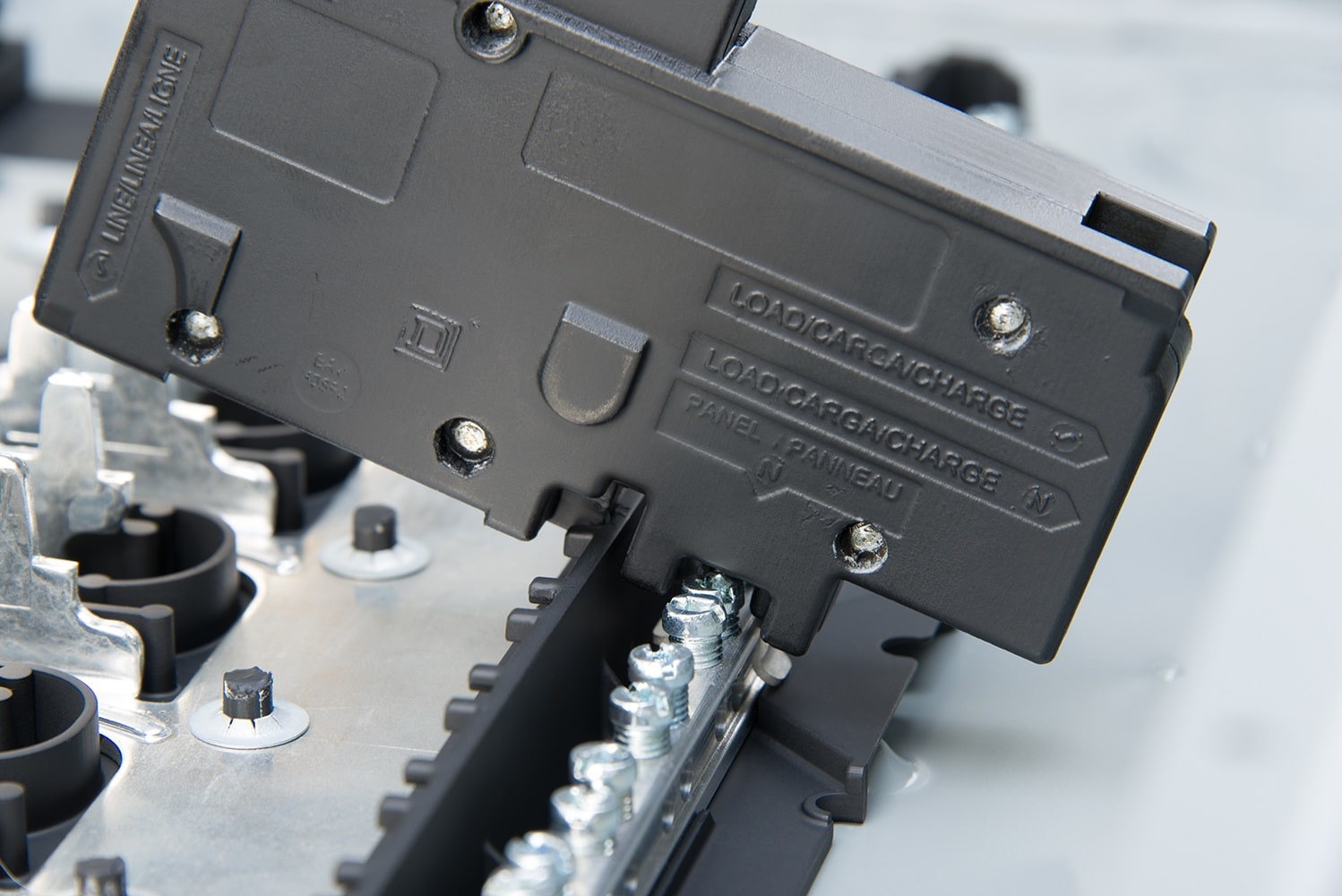

- Less wiring, clean gutter, fast installation with Plug-On Neutral
- Compatible with any Square D Homeline circuit breaker
- Homeline breakers, cover, and aluminum bus bar included
- Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
- Each pole space accepts full-size, tandem or quad breakers
- Ground and neutral bars accept up to (3) #10-14 equipment grounds

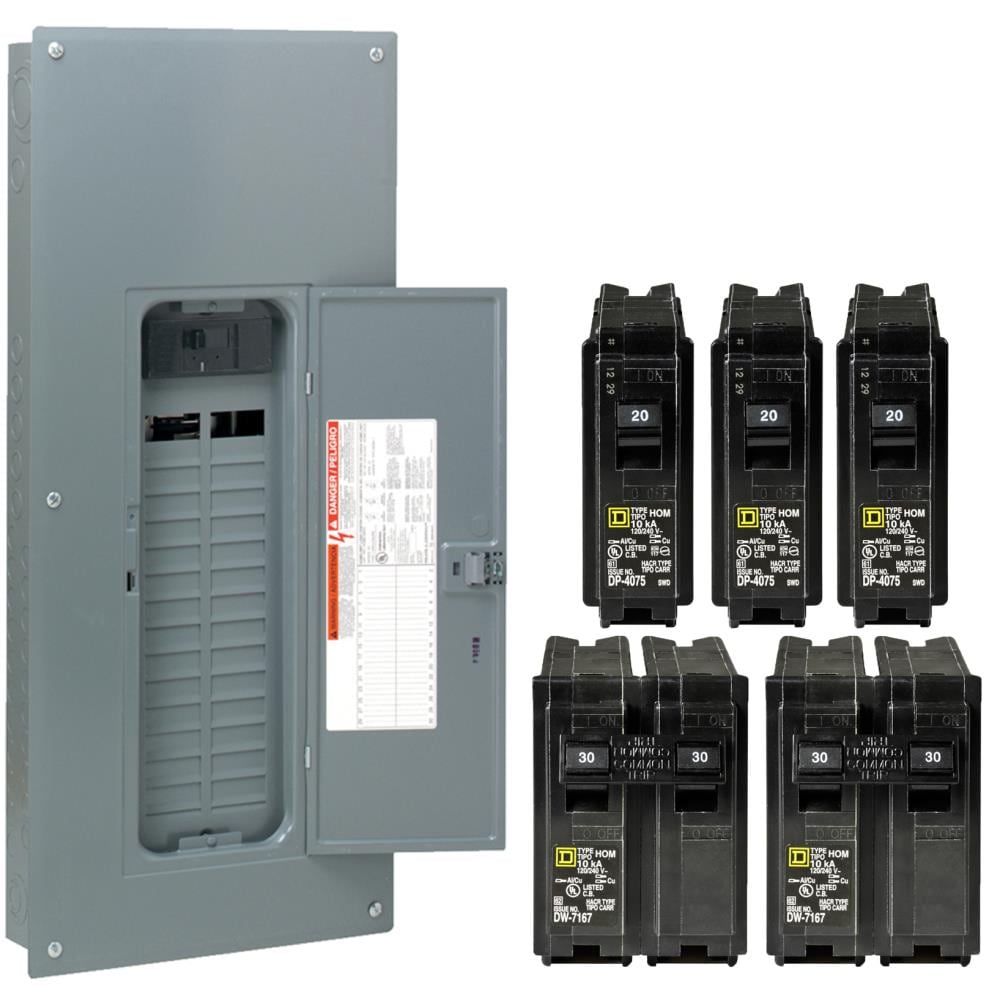

- Includes (3) HOM120 Homeline 20 Amp single-pole circuit breakers, (2) HOM230 Homeline 30 Amp double-pole circuit breakers and a combination flush/surface cover
- Accommodates plug-on secondary surge arrestor (sold separately)
- Overhead/underground feed simply by rotating the device before installing
Specifications
General | |||
---|---|---|---|
Manufacturer Color/Finish | Gray | Type | Main breaker |
Series Name | Homeline |

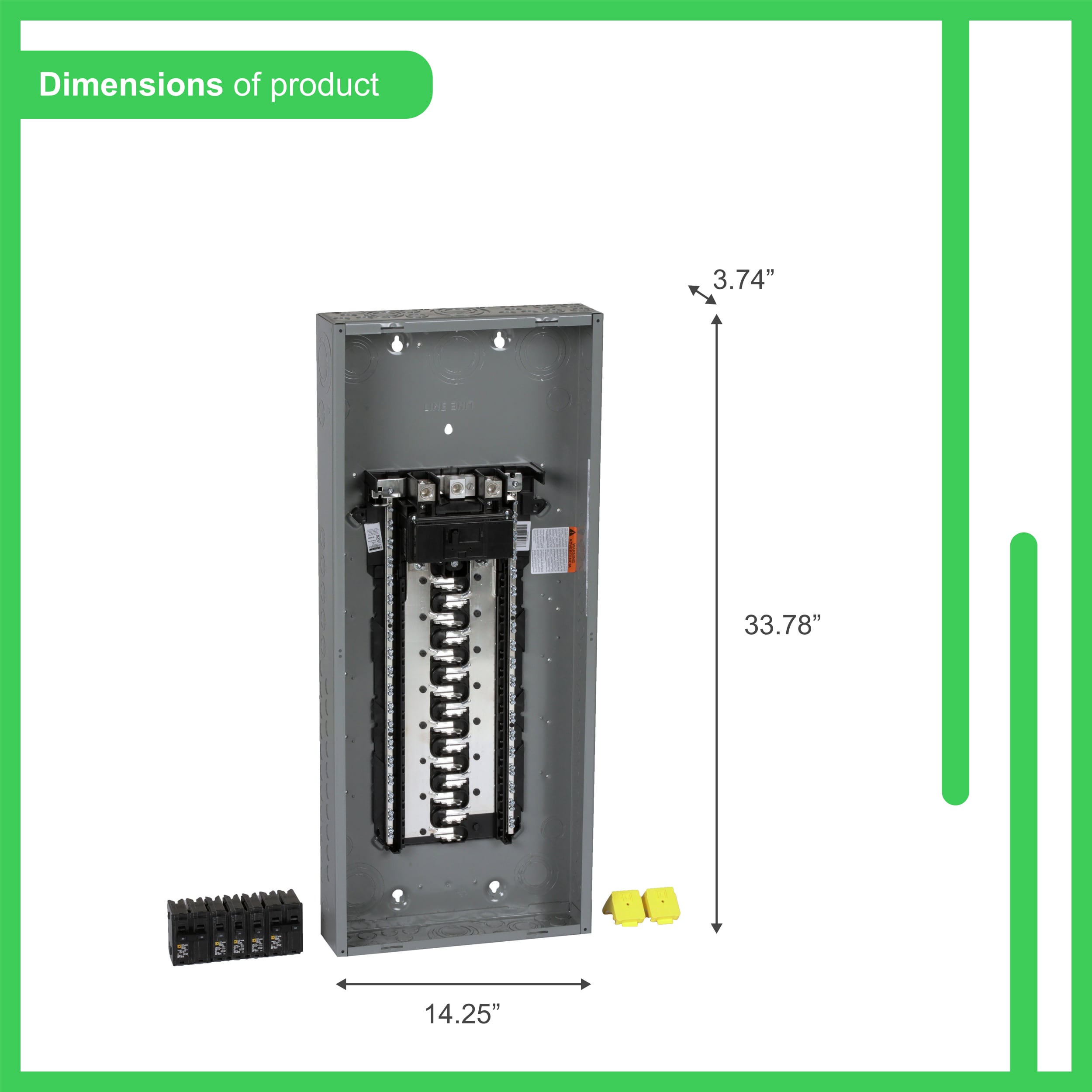

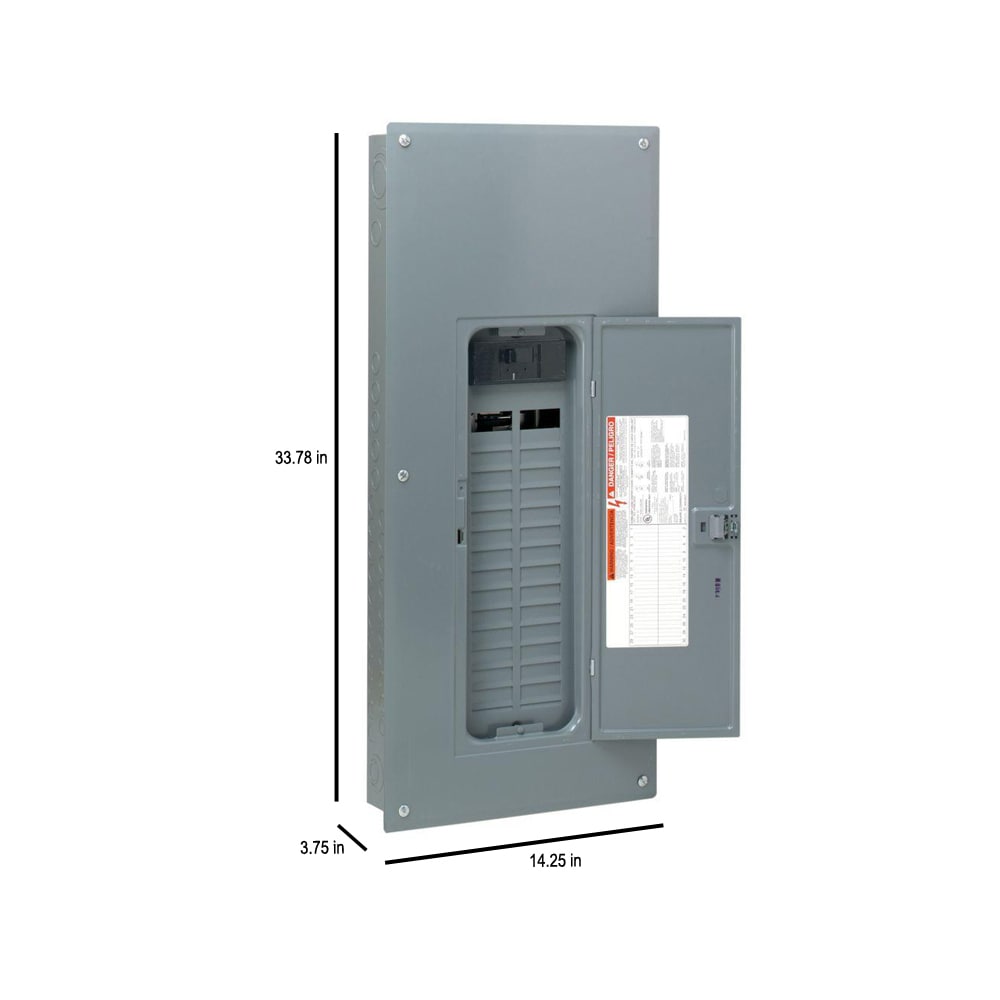

Dimensions | |||
---|---|---|---|
Depth (Inches) | 3.75 | Width (Inches) | 14.25 |
Height (Inches) | 33.78 |
Features | |||
---|---|---|---|
Amperage | 150 | Orientation | Over/Under |
Buss Bar Construction | Aluminum | Paintable | No |
Circuits | 60 | Phase Type | Single phase (120/240) |
Cover Included | Yes | Plug-On Neutral | Yes |
Feed-Through Lugs | No | Usage | Service entrance |
Ground Bar Installed | No | Use Location | Indoor |
Mounting Type | Combination | Value Pack | Yes |
Number of Spaces | 30 | Value Pack Contents | Includes (3) HOM120 Homeline 20 Amp single-pole circuit breakers, (2) HOM230 Homeline 30 Amp double-pole circuit breakers and a combination flush/surface cover |
Compatibility | |||
---|---|---|---|
Brand/Model Compatibility | Square D Homeline Brand Only |
Certifications | |||
---|---|---|---|
CA Residents: Prop 65 Warning(s) | Safety Listing | UL safety listing |
Miscellaneous | |||
---|---|---|---|
UNSPSC | 39121100 |
