Big Red T51201 12-Ton Shop Press with Stamping Plates

Big Red T51201 12-Ton Shop Press with Stamping Plates

The Torin Big Red T51201 heavy-duty steel H-frame hydraulic garage/shop floor press is designed for straightening, bending, pressing and stamping. Equipped with a 12 ton (24,000 lbs.) capacity bottle jack with a working range from 10-1/2 in. to 35 in. Manually raise and lower the table surface for the best working distance for the job. Includes arbor press stamping plates that feature V-blocks and a 180° guide design. Features high quality precision springs for slowly and safely bouncing back after pressing down operation. The piston-ram is treated and polished to resist skiving. After a thorough chemical wash to ensure a long-lasting finish and to help prevent rust, it’s treated with a powder-coated, lead-free paint, providing a durable coating which is oil, grease and dirt-resistant for easy cleanup.

• Heavy-duty steel H-frame hydraulic garage/shop floor press is designed for straightening, bending, pressing and stamping, Includes arbor press stamping plates that feature V-blocks and a 180° guide design
• Manually raise and lower the table surface for the best working distance for the job, Equipped with a 12 ton (24,000 lbs.) capacity bottle jack with a working range from 10-1/2″ to 35
• Features high quality precision springs for slowly and safely bouncing back after pressing down operation, Piston-ram is treated and polished to resist skiving
• Treated with a powder-coated, lead-free paint, providing a durable coating which is oil, grease and dirt-resistant for easy cleanup
• Includes a limited 1 year manufacturer warranty
• California residentssee Prop 65 WARNINGS

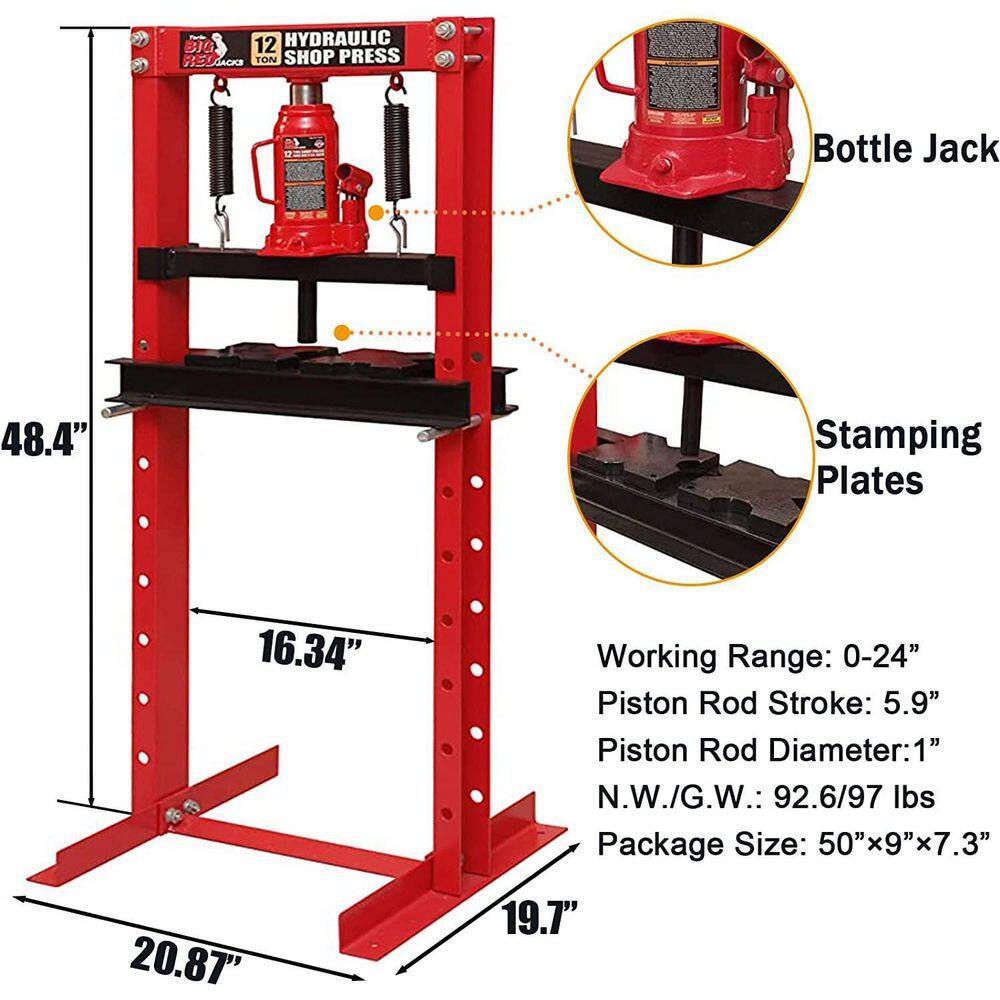

Dimensions

Base Length (in.)	20.87	Base Width (in.)	19.69
Collapsed height (in.)	48.43	Handle Length (in.)	16.73 in
Product Depth (in.)	20.87 in	Product Height (in.)	48.43 in
Product Width (in.)	19.69 in

Details

Features	Rust Resistant	General Part Type	Bottle Jack
Included	Handle, Mounting Hardware	Material	Steel
Maximum Lift Height (in.)	24 in	Mechanism type	Hydraulic
Minimum Lift Height (in.)	0	Product Weight (lb.)	92.59 lb
Weight Capacity (lb.)	24000 lb	Saddle Diameter (in.)	1

Warranty / Certifications

Manufacturer Warranty	Limited 1 Year Manufacturer Warranty
