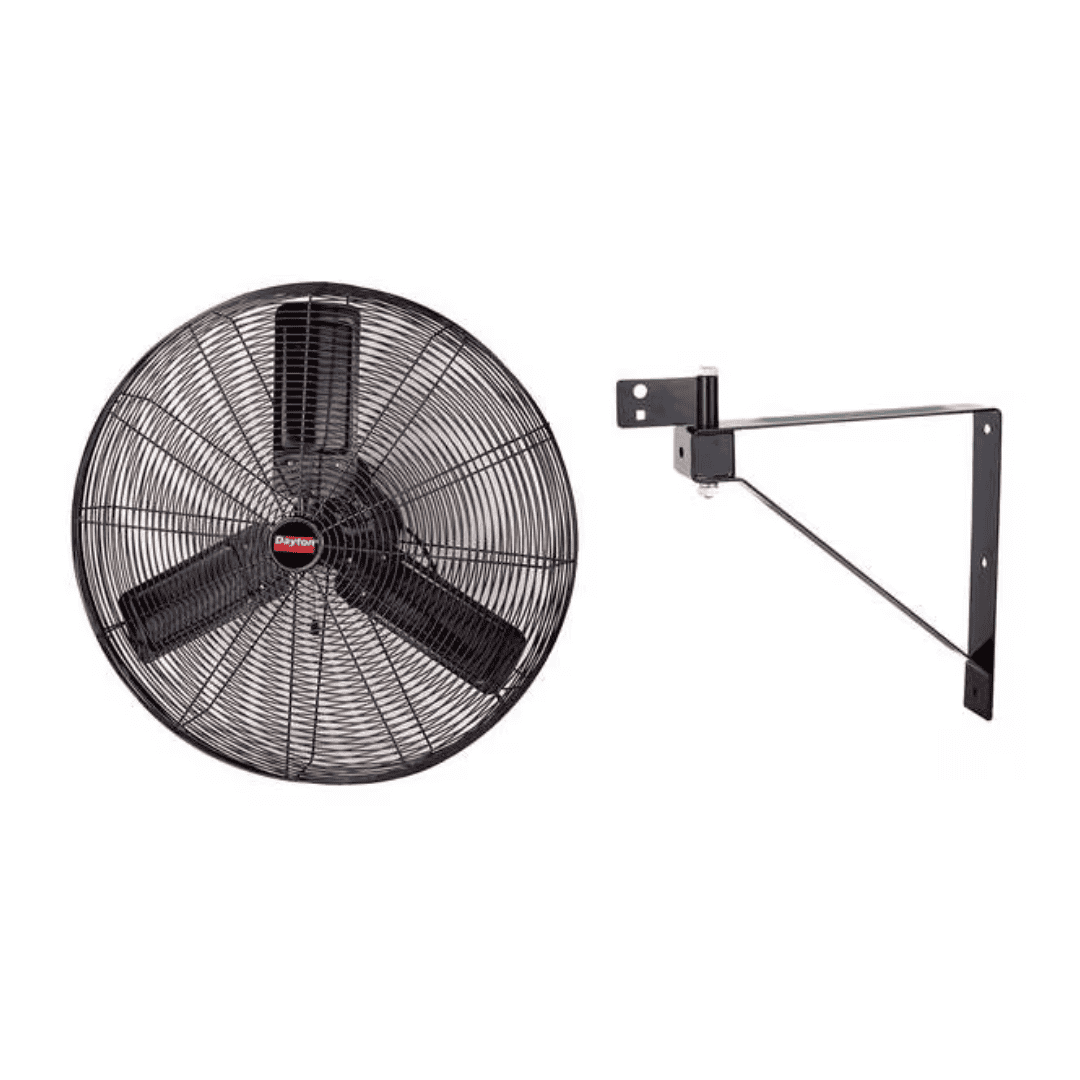

DAYTON Light Duty Industrial Fan, 30 in, Non-Oscillating, 115VAC, 4650/7250 CFM
$324.99
- Blade Diameter: 30″
- Oscillation: Non-Oscillating
- Air Flow: 4650/7250 CFM
- Voltage: 115VAC
- Number of Speeds: 2
-
Free shipping -
Estimated Delivery: 5-10 days -
Pickup not available
DAYTON Light Duty Industrial Fan, 30 in, Non-Oscillating, 115VAC, 4650/7250 CFM
Light-duty industrial wall-mount fans cool light manufacturing areas, warehouses, and other dry, clean spaces where floor space is limited. These air circulators are used where an office fan is inadequate and a heavier-duty or wet-location industrial fan isn’t needed. Compared to standard-duty industrial fans, these light-duty fans are made of lighter-gauge materials and have a lower-horsepower motor with less-robust bearings.
Dimensions
| Blade Diameter | 30″ |
| Height | 34-1/2″ |
| Width | 33″ |
| Shaft Dia. | 17mm |
| Blade Dia. | 30″ |
| Cord Length | 9 ft. |
| Outside Dia. | 33″ |
| Max. Depth | 24″ |
| Depth | 24 in |
| Fan Cord Length | 9 ft |
Details
| Promotion Restriction | Not eligible for promotion |
| Item | Light-Duty Industrial Fan |
| Oscillation | Non-Oscillating |
| Air Flow | 4650/7250 CFM |
| Voltage | 115VAC |
| Number of Speeds | 2 |
| Motor HP | 1/4 |
| Material | Steel |
| Number of Blades | 3 |
| Includes | Wall/Ceiling Bracket and Secondary Safety Support Cable |
| Phase | 1 |
| Guard Material | Steel |
| Motor Insulation | Class B |
| Sound Level | 77 dBA |
| Speeds | 2 |
| Oscillating / Non-Oscillating | Non-Oscillating |
| CFM High | 7250 |
| Motor Enclosure | Open Air-Over |
| Housing Material | Steel |
| Drive Type | Direct |
| Operating Amps | 2.9/1.9 |
| Motor Type | Permanent Split Capacitor |
| Assembled | No |
| Thermal Protection | Automatic Reset |
| Air Velocity @ 10 Ft. | 1010/680 |
| Application | Spot Cooling and People Cooling |
| Fan Mounting Location | Ceiling, Wall |
| Wire Guard Finish | Gloss Black |
| Watts | 320/225 |
| CFM/Watt | 19.9/24.3 |
| Standards | cULus Listed, OSHA compliant wire guards |
| Fan RPM | 1100/900 |
| Hz | 60 |
| CFM Low | 4650 |
| Oscillating | No |
| Air Velocity @ 60 Ft. | 280/250 |
| Max. Ambient Temp. | 104 Degrees F |
| Air Velocity (FPM) @ 40 Ft | 370/350 |
| Air Velocity (FPM) @ 10 Ft. | 1010/680 |
| Motor RPM | 1100/900 |
| Fan Accessory Style | Standard |
| Environmental Applications | Industrial |
| Air Velocity (FPM) @ 20 Ft. | 715/480 |
| Air Velocity (FPM) @ 60 Ft. | 280/250 |
| Mobile/Stationary | Stationary |
| Air Velocity @ 20 Ft. | 715/480 |
| Requires | Assembly |
| Air Velocity @ 40 Ft. | 370/350 |
| Blade Material | Aluminum |
| NEMA Plug Configuration | 5-15P |
| Number of Conductors | 3 |
| Fan Style | Standard |
| Bearing Type | Ball |
| Frame Material | Steel |
| Brand |
|---|
