DEWALT DWS780 15 Amp Corded 12 in. Double Bevel Sliding Compound Miter Saw with XPS technology, Blade Wrench and Material Clamp

DEWALT DWS780 15 Amp Corded 12 in. Double Bevel Sliding Compound Miter Saw with XPS technology, Blade Wrench and Material Clamp

The 12 in. Double Bevel Sliding Compound Miter Saw has a 15 Amp motor and integrated XPS crosscut positioning system for adjustment-free, accurate cut line indication. Tall sliding fences support 7-1/2 in. of nested crown and 6-3/4 in. of base molding vertically. Exclusive Back Fence Design cuts up to 2 x 14 dimensional lumber at 90. increased miter capacity of 60. (R) and 50. (L) features durable stainless-steel miter detent plate with cam lock for repeatable accuracy with easy adjustments.

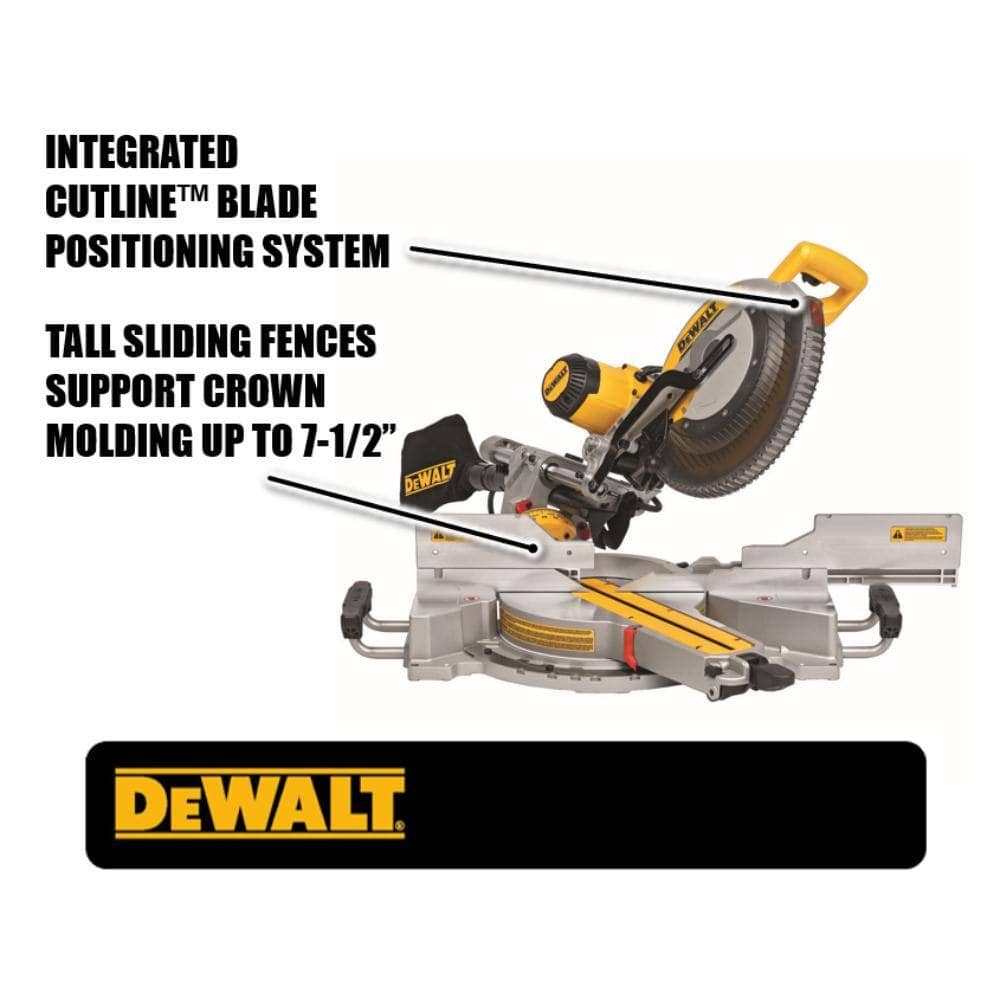

• Integrated cutline blade positioning system provides adjustment free cut line indication for better accuracy and visibility
• Powerful 15 Amp, 3,800 rpm motor delivers extended power and durability
• Super-efficient dust collection system captures over 75% of dust generated
• Tall sliding fences support crown molding up to 7-1/2 in. nested and base molding up to 6-3/4 in. vertically against the fence while easily sliding out of the way for bevel cuts
• Exclusive back fence design cuts up to 2 x 14 dimensional lumber at 90° and 2 x 10 at 45°

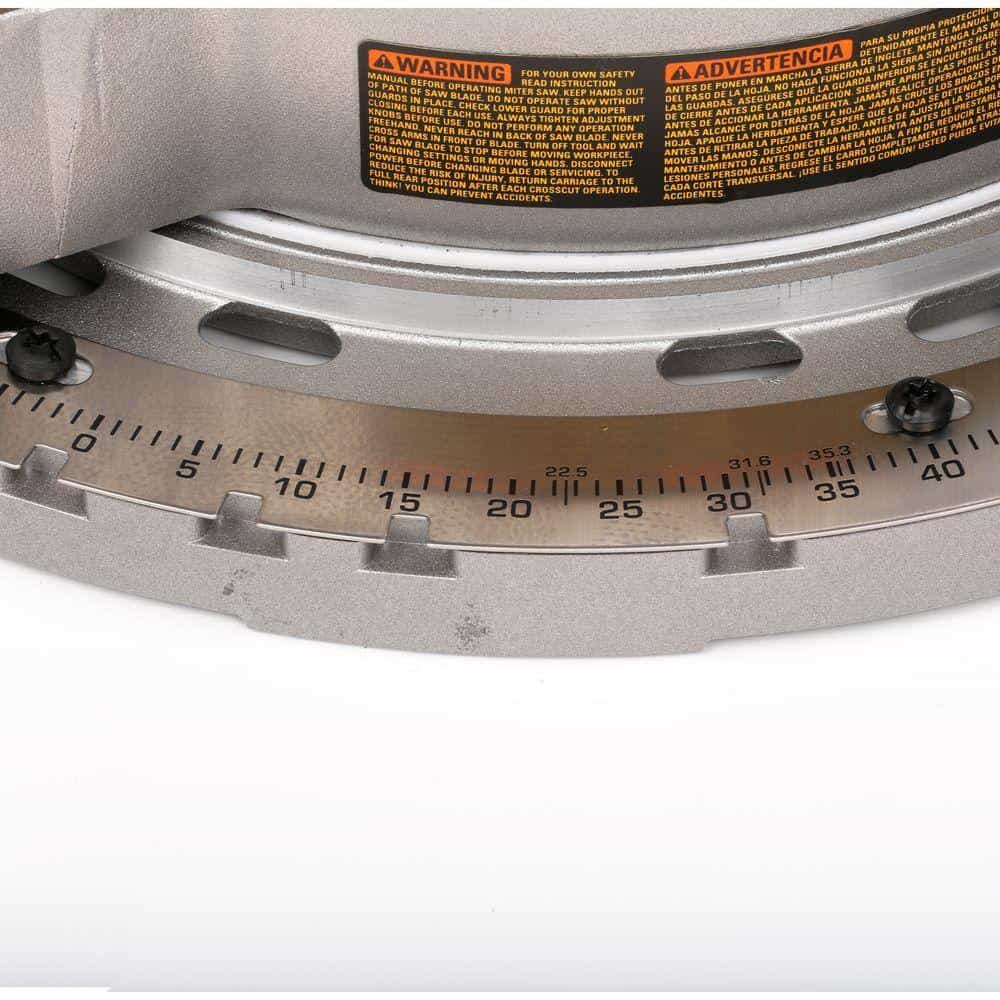

• Adjustable stainless-steel miter detent plate with 10 positive stops improves productivity and ensures cutting accuracy
• Miters 60° to the right and 50° to the left providing increased capacity

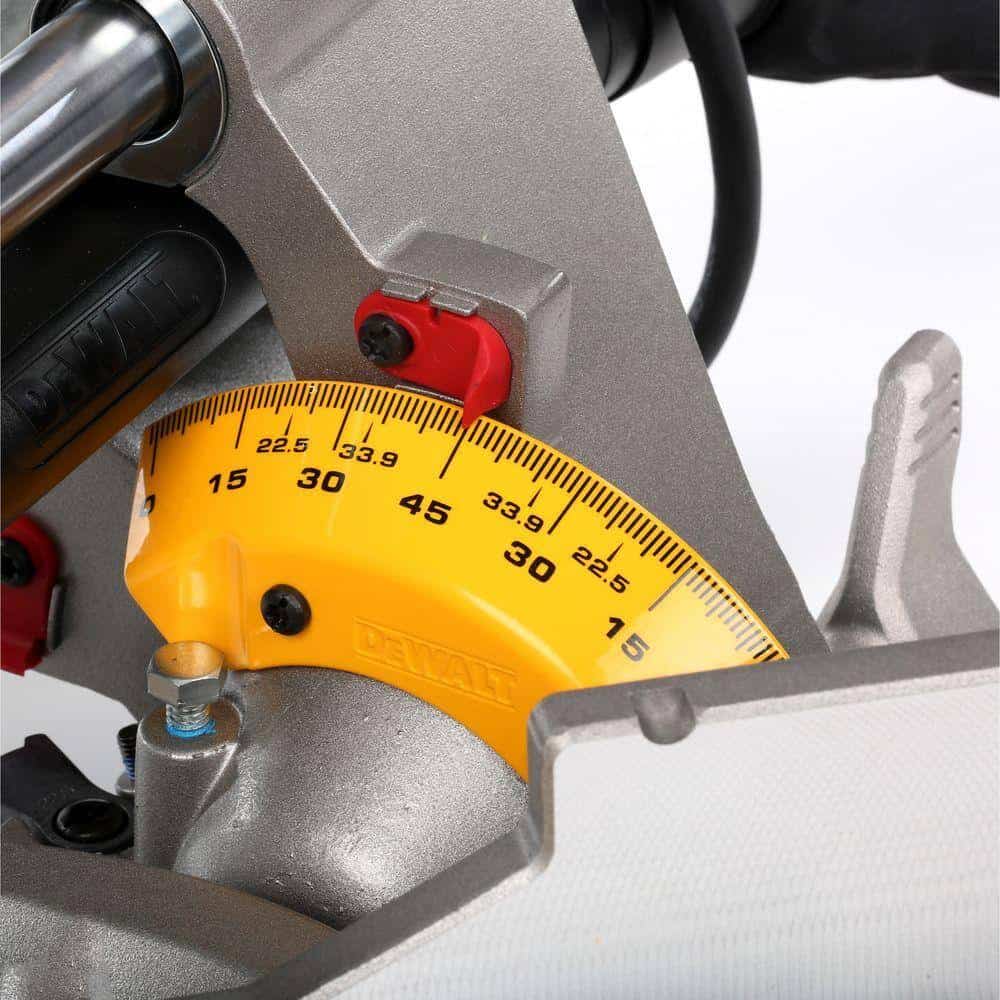

• Oversized bevel scale makes bevel angle adjustments accurate and easy
• Compact, lightweight design (58 lbs.) allows for easy transport and storage
• Cam lock miter handle with detent override deliver quick and accurate miter angles

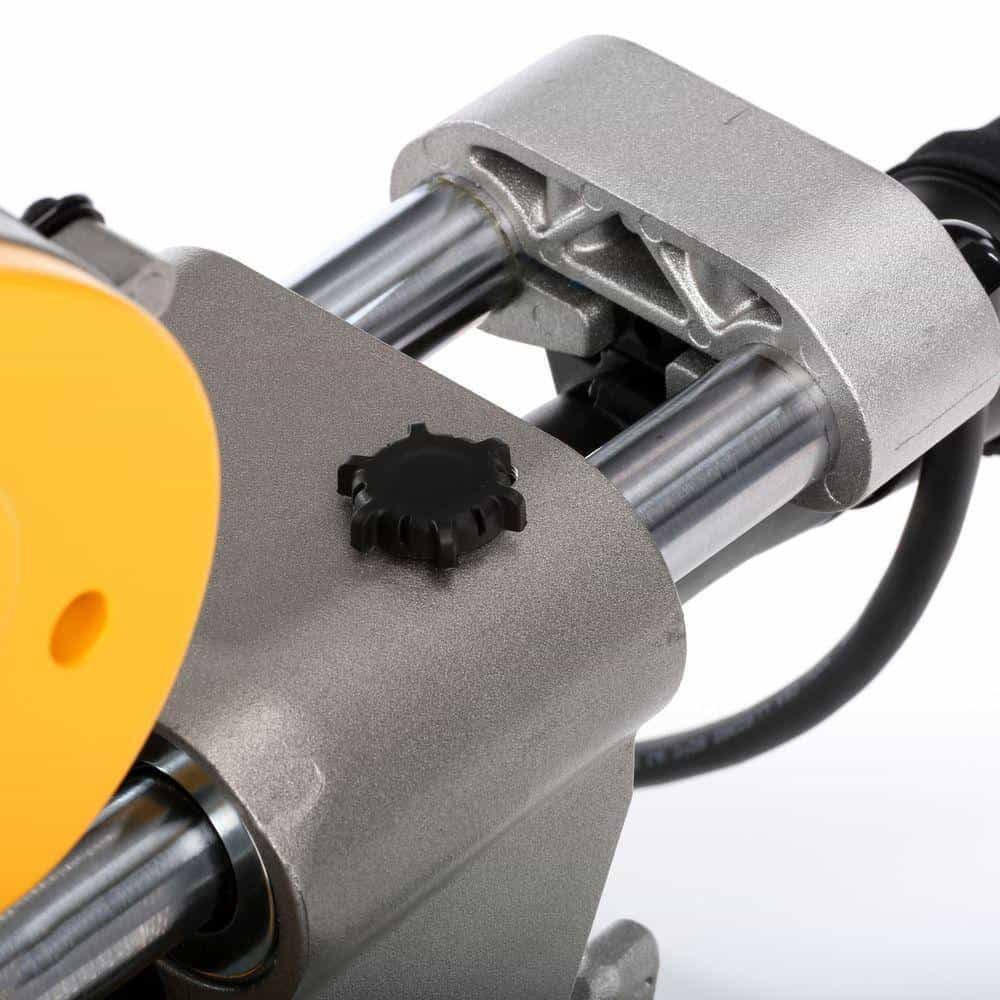

• Dual horizontal steel rails with innovative clamping mechanism and linear ball bearings deliver an accurate, durable and compact saw
• Innovative gearbox and belt-drive design increases vertical cutting capacity
• Precise miter system and machined base fence support optimize durability and cutting accuracy
• Dust bag and material clamp included
• California residentssee Prop 65 WARNINGS

Dimensions

Arbor Size (in.)	5/8 in	Blade Diameter (in.)	12 in
Product Depth (in.)	32.33 in	Product Height (in.)	19.5 in
Product Width (in.)	23 in

Details

Amperage (A)	15 A	Bevel Type	Dual Bevel
Color Family	Yellow	Condition	New
Construction Material	Composite	Cord Length (ft.)	6 ft
Corded Tool Type	Miter Saw	Cordless/Corded	Corded
Cuts Through	Wood	Dust Collection Method	Bag
Included Accessories	Clamp	Maximum Bevel Cut Angle – Left (degrees)	49 °
Maximum Bevel Cut Angle – Right (degrees)	49 °	Maximum Crosscut Capacity at 45 Degrees (L/R)	2 in x 10 in
Maximum Crosscut Capacity at 90 Degrees	2 in x 14 in	Maximum Cutting Thickness (in.)	14 in
Maximum Miter Cut Angle – Left (degrees)	50 °	Maximum Miter Cut Angle – Right (degrees)	60 °
Maximum Speed (RPM)	3800 RPM	Miter Saw Type	Sliding Compound
Power Source	Electric	Power Tool Features	Keyed Blade Change, Positive Stops
Product Weight (lb.)	69.9 lb	Tools Product Type	Power Tool
