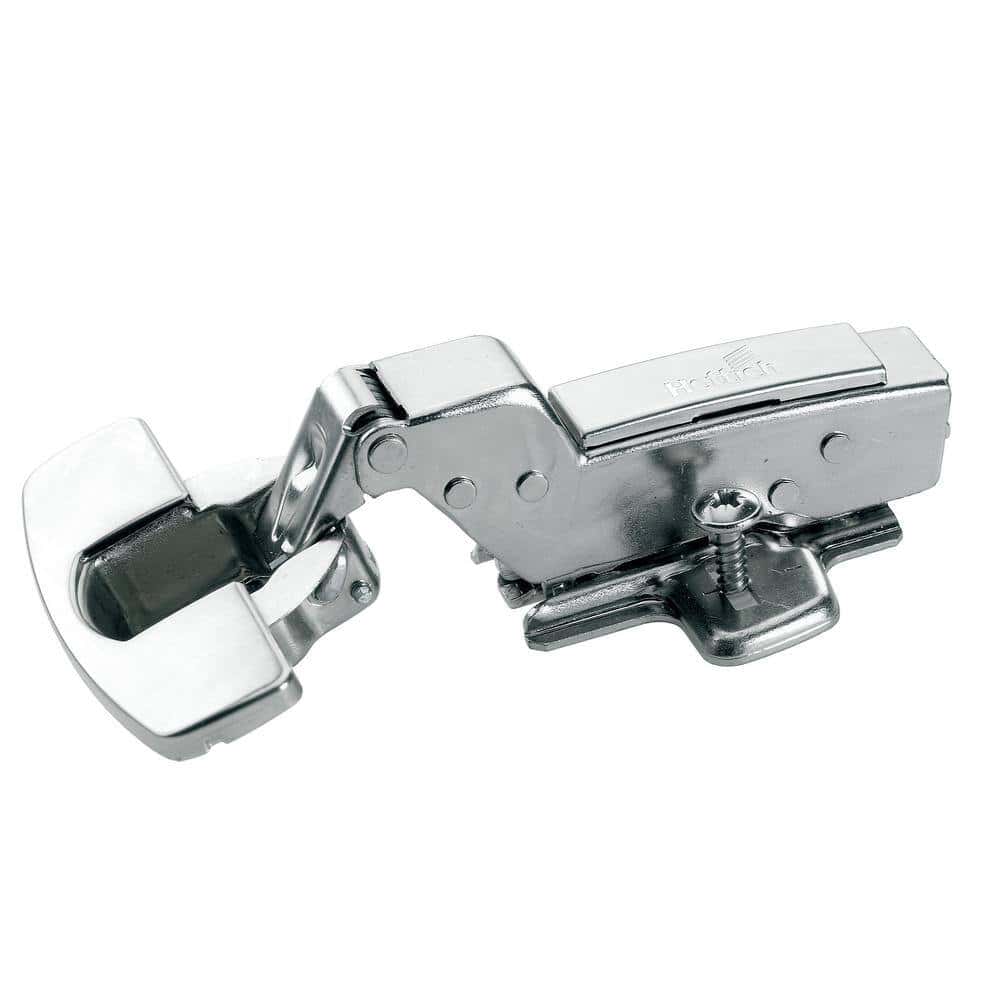

Everbilt 9263845 Soft Close Frameless Inset 110 Deg. Hinge (24-Pack)

Everbilt 9263845 Soft Close Frameless Inset 110 Deg. Hinge (24-Pack)

This high Quality European Soft Close hinge provides quiet close for cabinet doors in kitchens, bathrooms and more. The hinge can be applied to frameless furniture construction with inset doors – cabinetry where the door lays flush against the cabinet frame. The hinge features long-term tested German Quality design and engineering.Package Includes 24 Hinges and all mounting hardware needed.

• Integrated dampening system for soft and gentle door closing
• For door thicknesses of 5/8 in – 7/8 in.
• Cup diameter 35 mm/1.37 in.
• Integrated overlay adjustment + 2 mm / – 2 mm
• Integrated depth adjustment + 3 mm / – 2 mm
• Height adjustment at mounting plate
• California residentssee Prop 65 WARNINGS

Dimensions

Product Depth (in.)	4.65 in	Product Height (in.)	1.65 in
Product Width (in.)	2.2 in

Details

Builders Hardware Product Type	Cabinet hinge	Cabinet Door Type	Full Inset
Cabinet Frame Type	Frameless	Features	Self Closing, Soft Close
Finish	Satin Nickel	Hardware Color Family	Nickel
Hardware Finish Family	Satin	Hinge Opening (Degrees)	110
Hinge Type	Inset	Hinge Visibility	Hidden
Material	Steel	Number of Holes	2
Package Quantity	24

Warranty / Certifications

Manufacturer Warranty	80.000 cycles
