Gaslandchef 30″ Electric Cooktop

Gaslandchef 30″ Electric Cooktop

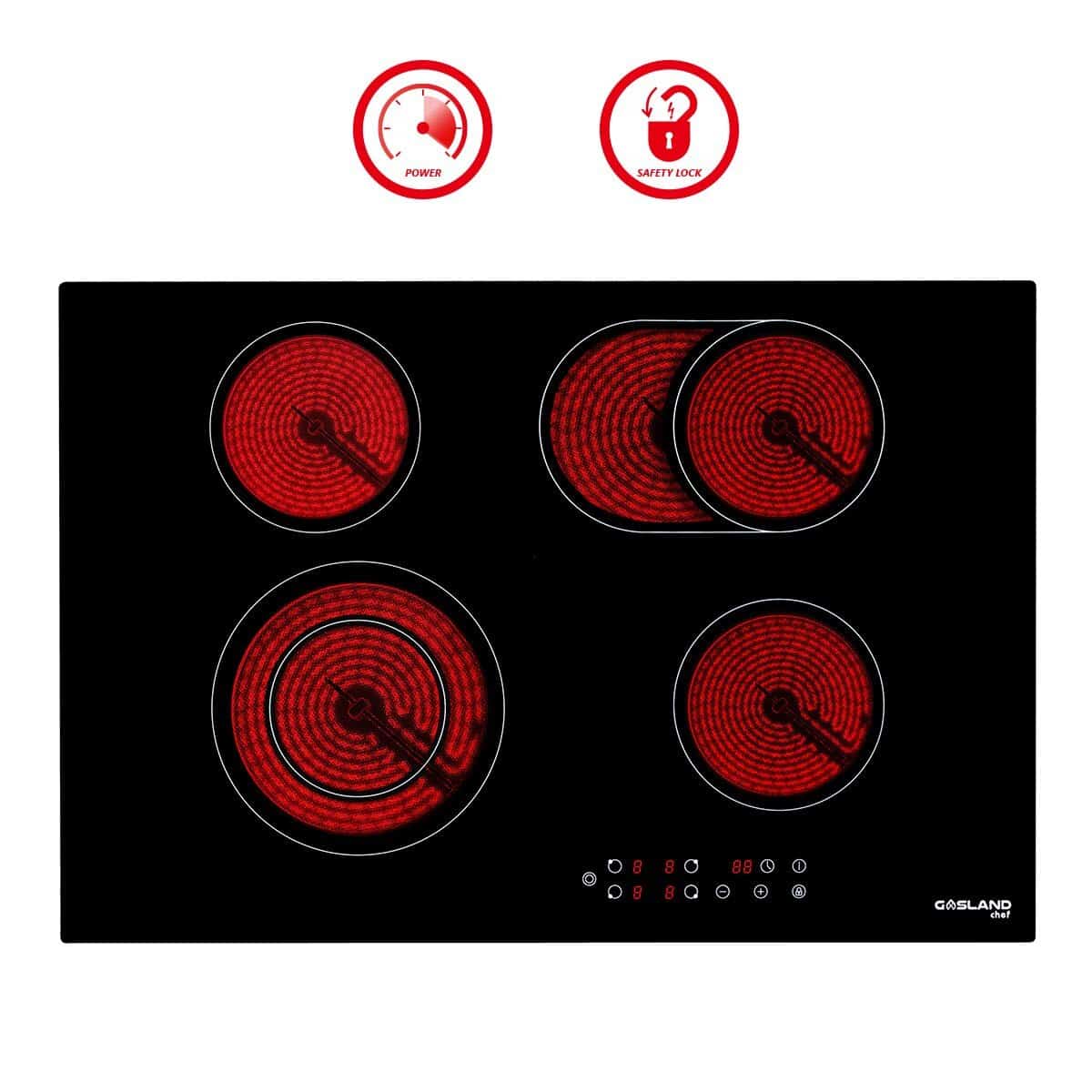

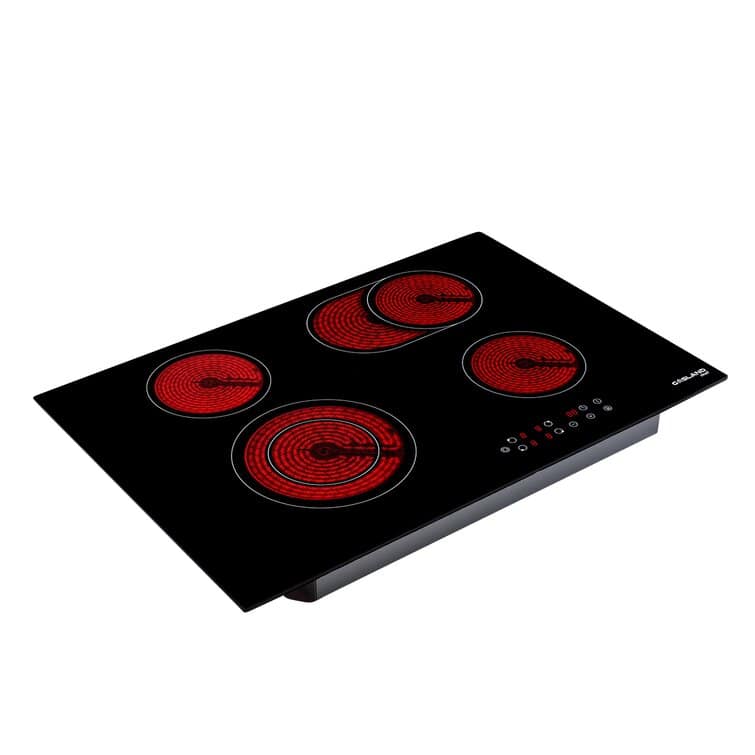

The CH77BF Built-in Electric Stove is a 30-inch 4 burner, electric indoor stove intended for AC220-240V, and rated power of 1000-6600W for quick cooking. It has 4 radiant cooking elements (2 expandable elements 11″ & 9″). Dual 1200W + 2000W/1100W & 2200W/1000W elements that feature 9 heating level settings and digital touch controls for precise, easy temperature change at the touch of a button. Heating levels range from a light simmer to a rapid boil. This model also has a Smooth Vitro ceramic glass surface for durable use and quick, easy cleaning while featuring automatic shut-off safety features and a child lock.

Features

• 4 Powerful Cooking Zones – This 30-inch electric cooktop is suitable for AC220-240V, and requires a 32A breaker & 8 wiring gauges, featuring 4 different cooking zones with a total power of 5400-6600W.
• Digital Sensor Touch Controls – Accurately control your heating and enjoy an easy-to-clean surface
• Multifunctional Timer – Built-in timers for each element, each zone’s timer will automatically turn itself off at the end of the setting time. You can set the time up to 99 minutes.
• Safety Protection Functions – Several protection functions ensure safety, such as overheating protection and the detection of small articles.
• Works with Most Cookwares- Compatible with aluminum pans, copper pans, cast iron frying pans, and non-magnetic stainless steel pans
• Easy Maintenance – Combines the sleekness of ceramic glass with enormous heat resistance and stability, making it durable and easy to clean.
• Vertical heat conduction can effectively heat cookware with minimal heat loss.
• Auto Shutdown Protection – Automatic shutdown if you forget to turn off
• Child Lock – Prevents the Cooktop from Being Accidentally Switched On, Locks Temperature Settings if in Use
• 9 Power level settings for each cooking zone
• 1-year limited warranty.

Note:

• Besides checking the product measurements, you should also:
• Walk the Delivery Path: Measure doorways, hallways, stairways, and areas where there may be a tight fit to ensure your appliance will fit.

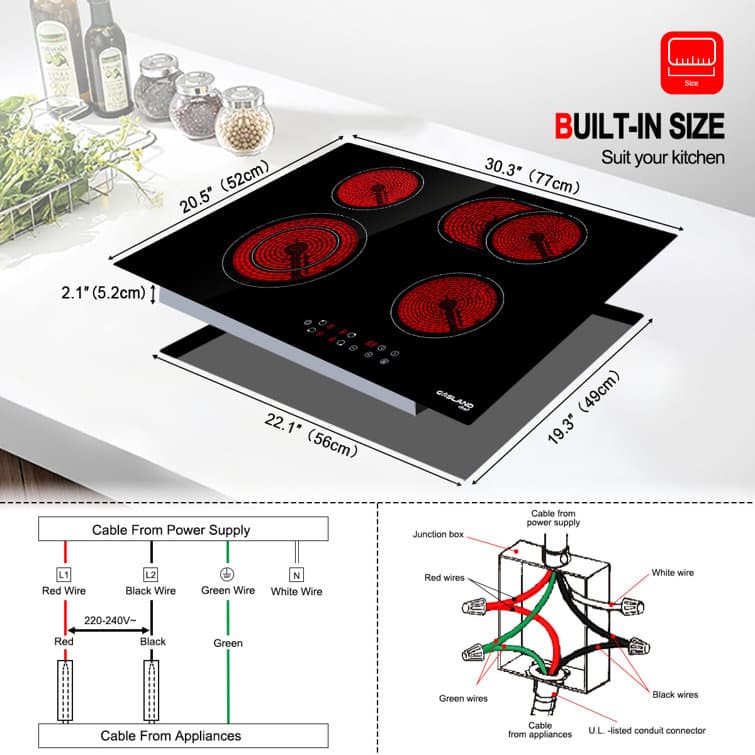

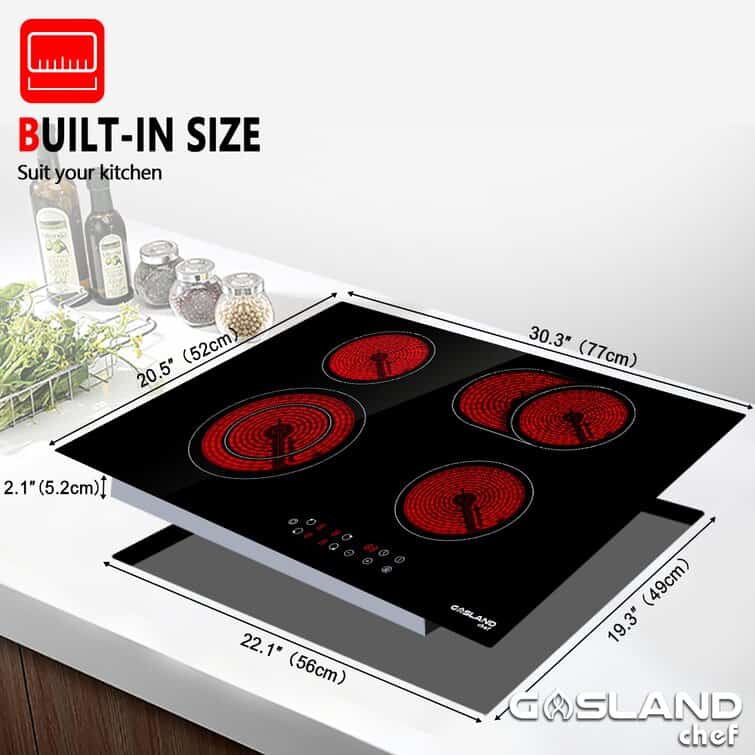

• Measure the Cutout Space: Remove your existing cooktop and measure the cutout opening. Measure the cutout width from side to side, depth from front to back, and distance between the cutout and both the back wall and the front of the countertop.
• Additional Considerations; Keep in mind that your new cooktop will have a lip that will overlap the cutout by ½-1 inch. You should also subtract any space needed for gas lines, ventilation, or other manufacturer requirements beneath the cooktop. Your cooktop should also be 24 to 36 inches from any hood or cabinets above it.

Fuel Type	Electric
Color/Finish	Black
Primary Material	Ceramic
Cooktop Surface Structure	Smoothtop
Downdraft Exhaust	No
Power Display Indicator	Yes
Cool Surface Indicator	Yes
Hot Surface Indicator	Yes
Automatic Pan Detection	Yes
Timer	Yes
Safety Lock	Yes
Amperage	40 Amps
Minimum Circuit Breaker Amperage	50 Amps
Voltage	240 Volt
Installation Kit	Yes
Cooking Elements Included	Yes
Number of Elements	4
Outdoor Use	No
Energy Efficiency	Yes
Grill Included	No
Gridtable class=”fix-table-2″e Included	No
Supplier Intended and Approved Use	Residential Use
Digital Display	Yes
Display Screen	LED

Specifications

Title 20 – California Code of Regulations	Yes

Warranty

Commercial Warranty	No
Product Warranty	Yes
Warranty Length	1 Year
Full or Limited Warranty	Limited
