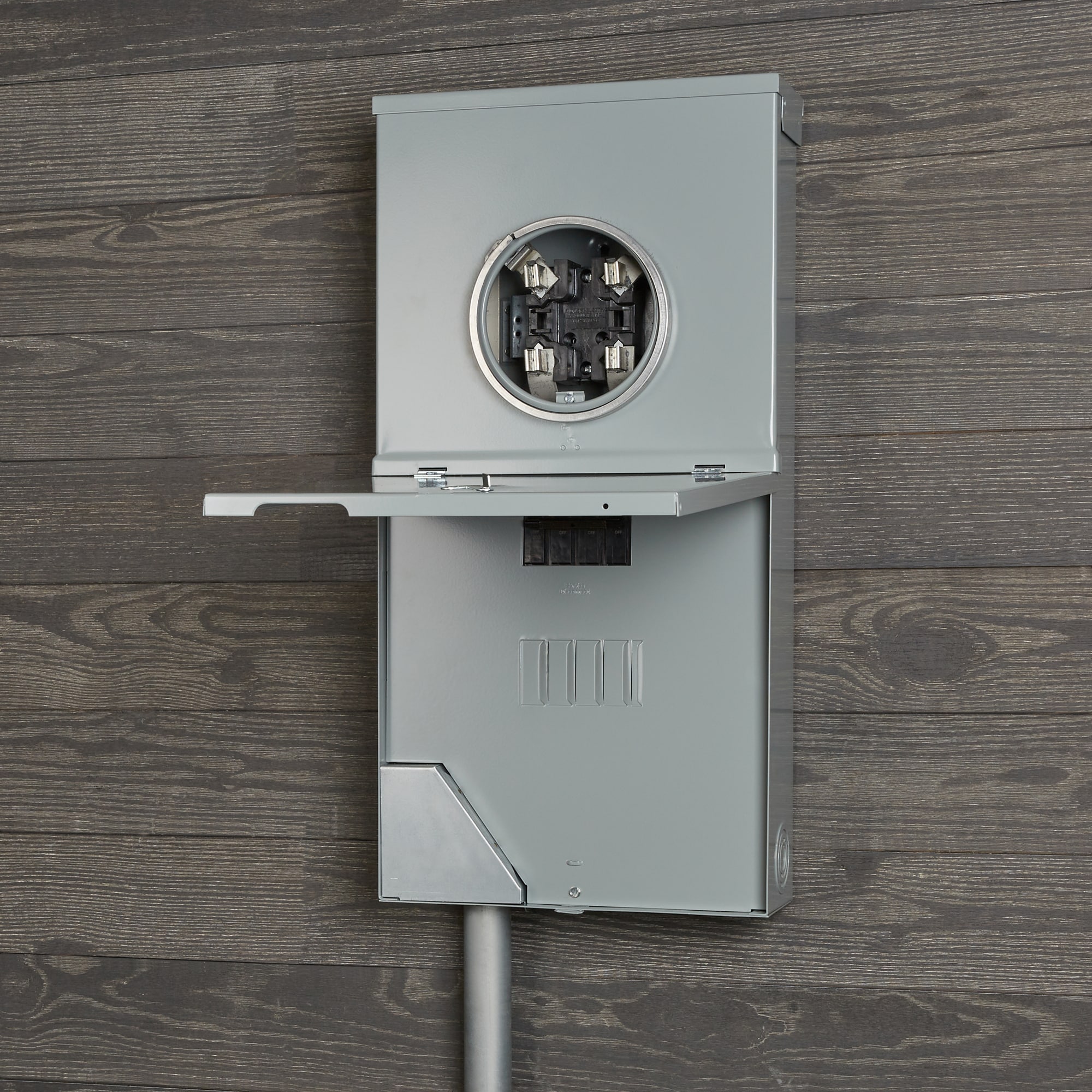

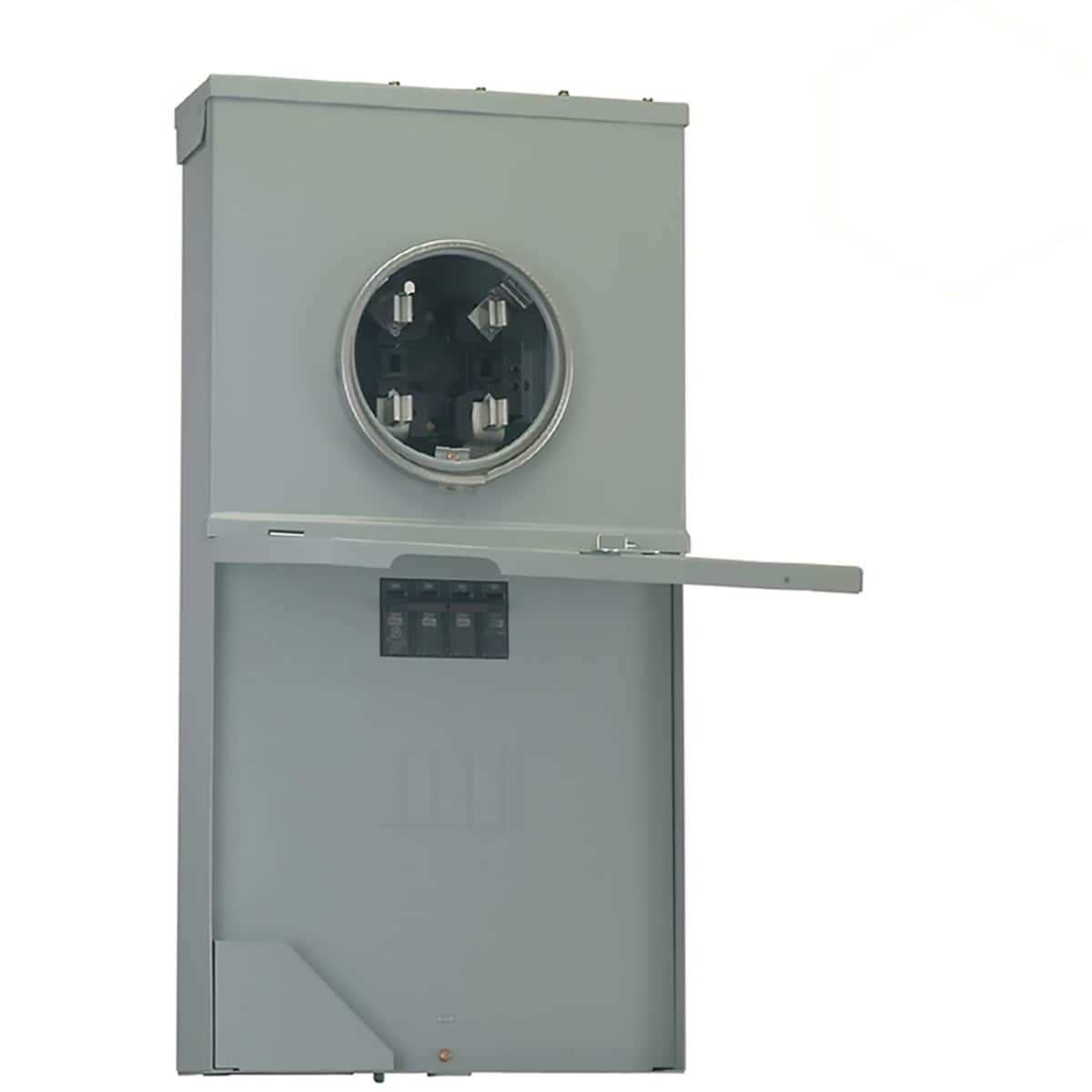

GE PowerMark Gold 200 -Amp 4 -Spaces 8 -Circuit Outdoor Main breaker Load Center
$348.75
- Manufacturer Color/Finish: Gray
- Series Name: PowerMark Gold
- Type: Main breaker
- Depth (Inches): 6

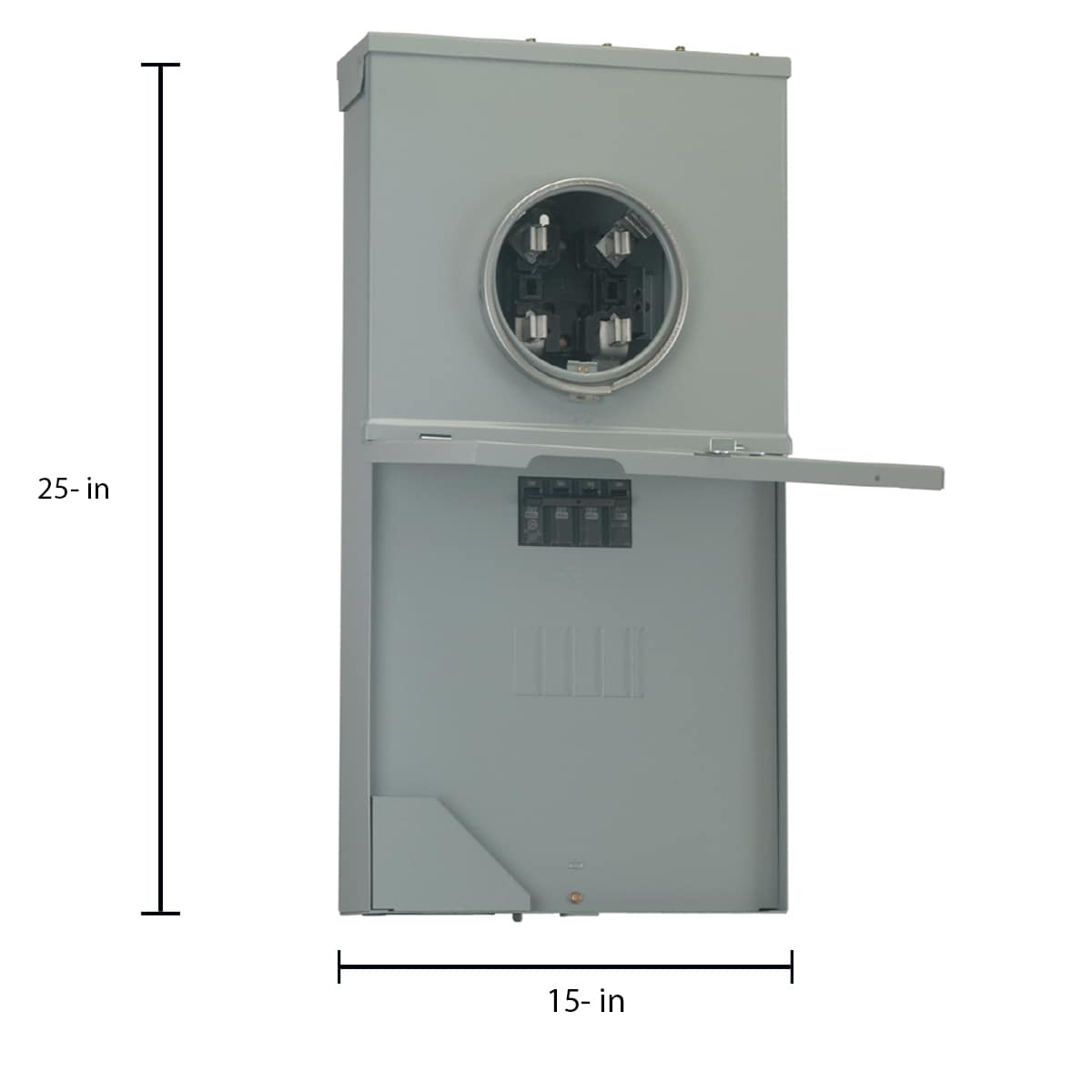

- Height (Inches): 25
- Width (Inches): 15
Out of stock
GE PowerMark Gold 200 -Amp 4 -Spaces 8 -Circuit Outdoor Main breaker Load Center
The GE Power Mark Gold 200 Amp 4-Space 8-Circuit Main Breaker Meter Socket Outdoor Load Center installs easily and delivers dependable performance. This load center is ideal for overhead or underground applications and provides reliable rust resistance. Featuring compatibility with GFCI, AFCI and 1/2 in. THQP circuit breakers, this unit possess versatility for your electrical metering needs.
Highlights
- Outdoor NEMA 3R surface mount enclosure
- Two hub provisions on top end wall
- Equipment Ground Kit Included
- Galvanized steel box resists rust
- Copper buss bar supports high conductivity
- Factory-installed main lug, full-length neutral bars and self-adjusting dead-front cover
- 100% rated split neutral on each side
- Single phase, 3-wire, 120/240 VAC, 200 Amp and 22K AIC rating
- For overhead and underground applications
Specifications
| General | |||
|---|---|---|---|
| Manufacturer Color/Finish | Gray | Type | Main breaker |
| Series Name | PowerMark Gold | ||
| Dimensions | |||
|---|---|---|---|
| Depth (Inches) | 6 | Width (Inches) | 15 |
| Height (Inches) | 25 | ||
| Features | |||
|---|---|---|---|
| Amperage | 200 | Orientation | Over/Under |
| Buss Bar Construction | Copper | Paintable | Yes |
| Circuits | 8 | Phase Type | Single phase (120/240) |
| Cover Included | Yes | Plug-On Neutral | No |
| Feed-Through Lugs | Yes | Usage | Service entrance |
| Ground Bar Installed | No | Use Location | Outdoor |
| Mounting Type | Surface | Value Pack | No |
| Number of Spaces | 4 | Value Pack Contents | 200 Amp Meter Socket Load Center |
| Compatibility | |||
|---|---|---|---|
| Brand/Model Compatibility | Accepts standard GFCI and AFCI circuit breakers, as well as the GE 1/2 in. THQP | ||
| Certifications | |||
|---|---|---|---|
| CA Residents: Prop 65 Warning(s) | No | Safety Listing | UL safety listing |
| Miscellaneous | |||
|---|---|---|---|
| UNSPSC | 39121100 | ||
| Brand |
|---|
