Genie 6172H-B Signature Series Ultra-Quiet Wall Mount Smart Garage Door Opener with Battery Backup, Wi-Fi, Wireless Wall Console

Genie 6172H-B Signature Series Ultra-Quiet Wall Mount Smart Garage Door Opener with Battery Backup, Wi-Fi, Wireless Wall Console

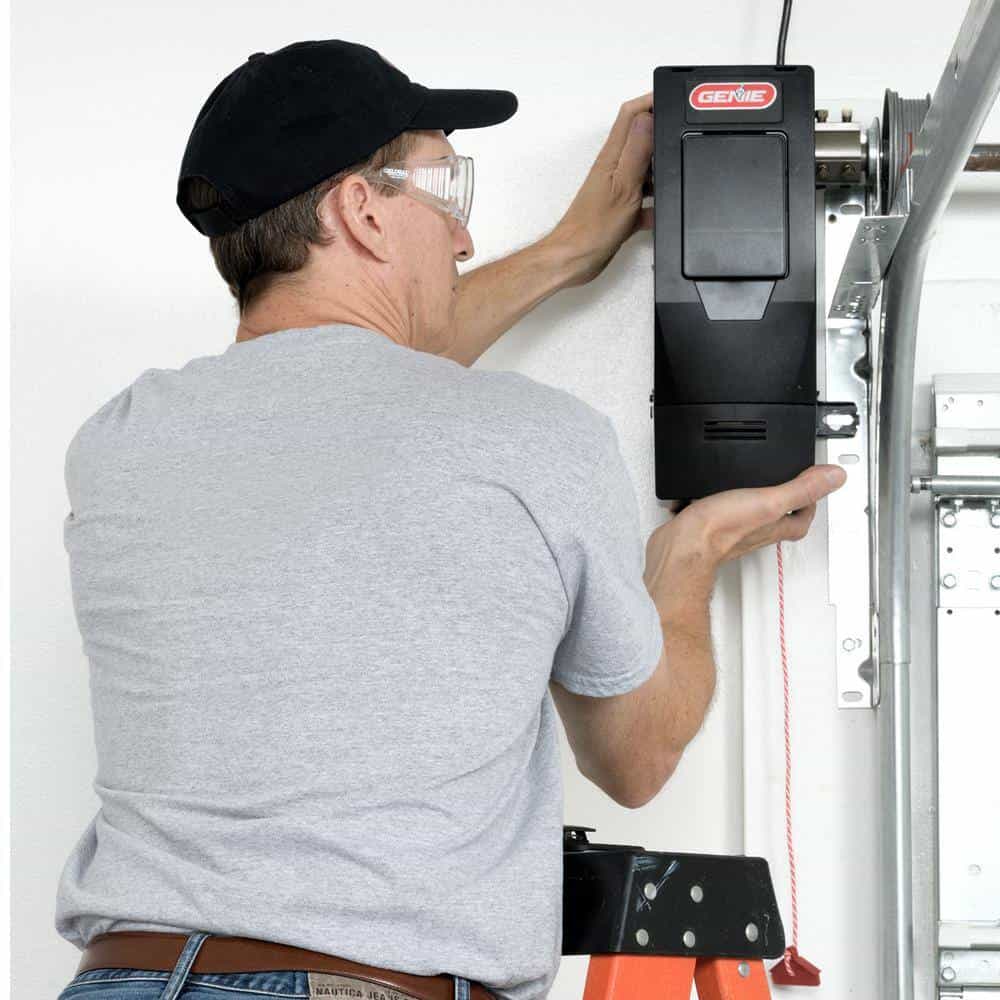

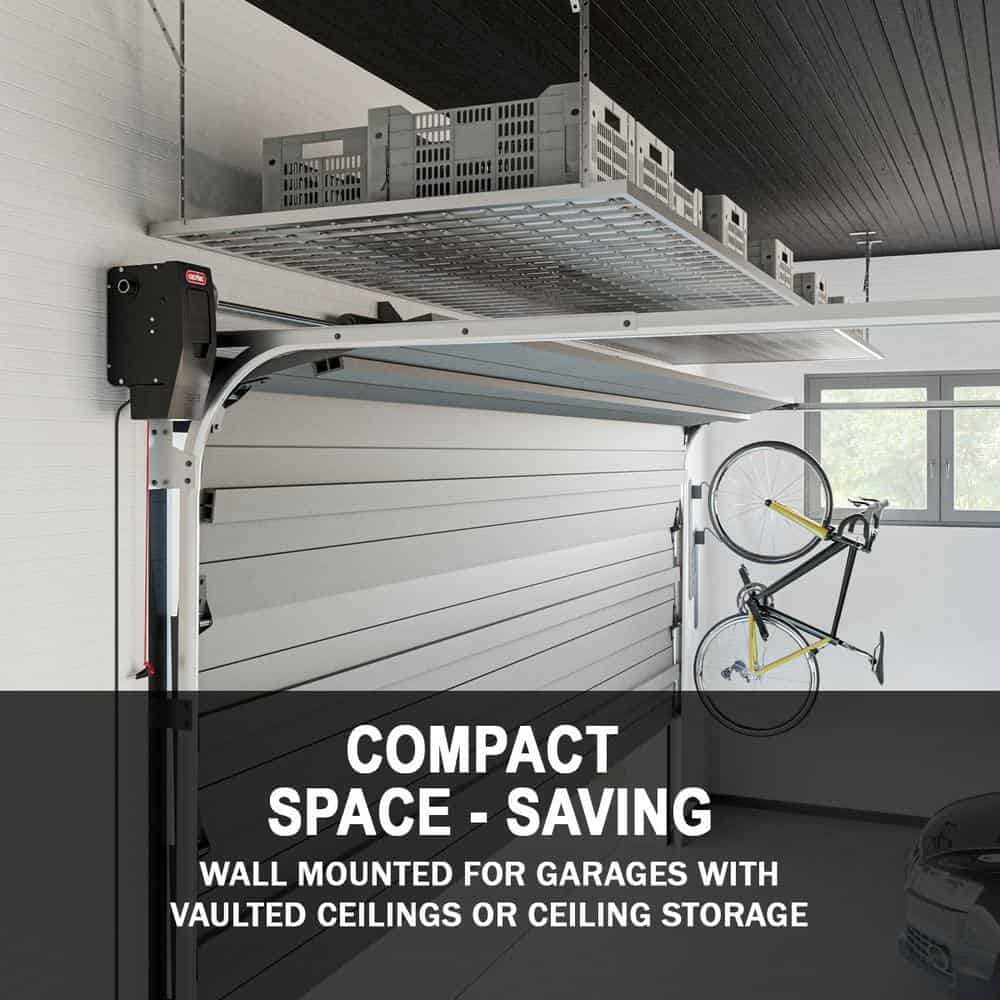

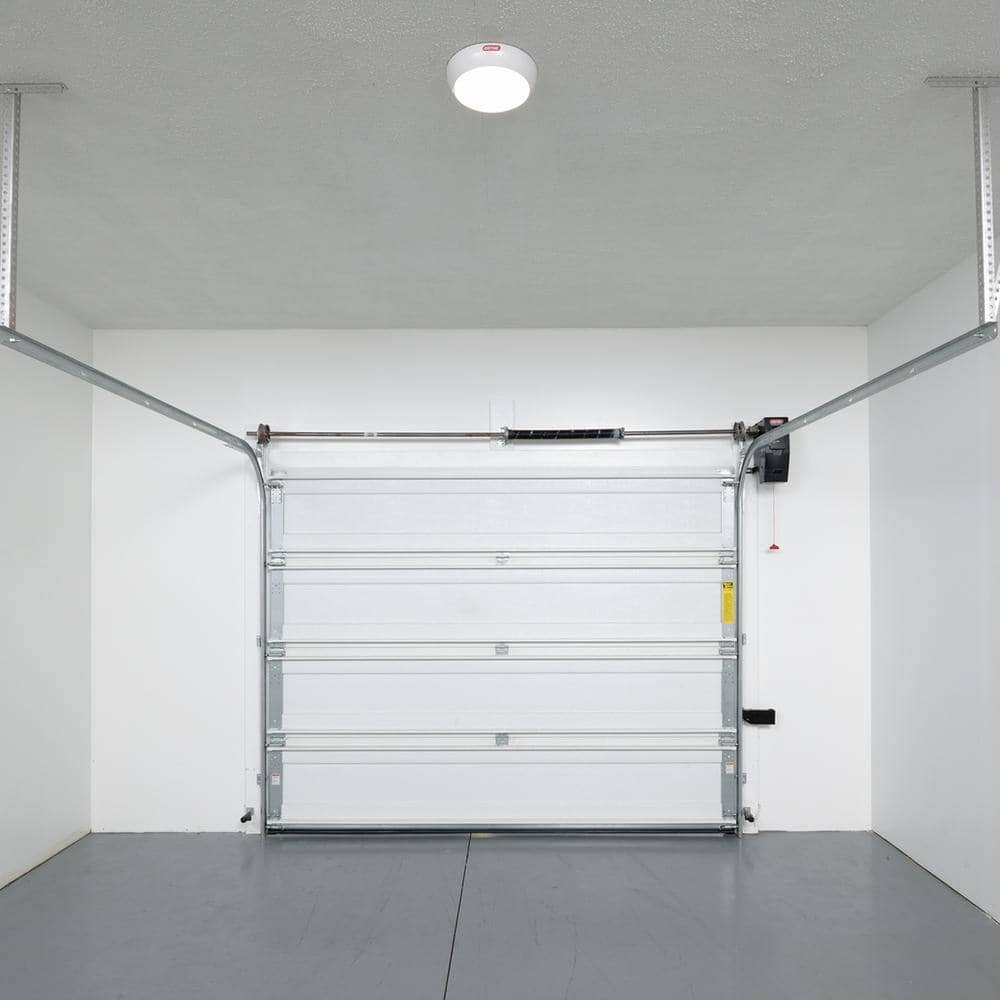

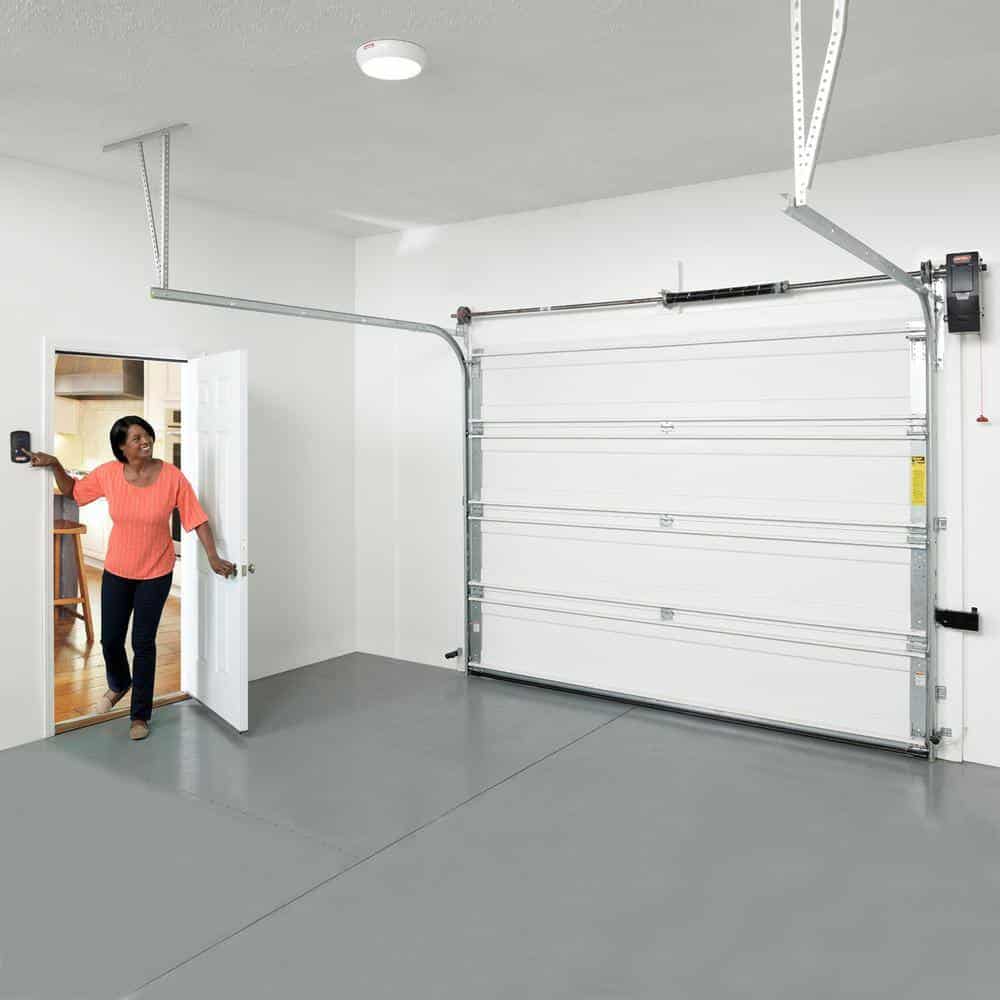

The Genie Signature Series Max Performance 6172H-B wall mounted smart garage door opener eliminates the traditional rail design. This Genie wall mount garage door opener features the Aladdin Connect smart home control and works with Alexa and Google Assistant, and it includes an integrated battery backup. The battery backup makes this model compliant with California State Law SB-969, which requires all installed garage door openers in the state to have a battery backup.Enhanced safety features on the Signature Series Max Performance 6172H-B wall mount garage door opener includes exclusive Safe-T-Pulse cable tension monitoring technology, which tests and confirms there is sufficient cable tension before lowering the door.The Signature Series Max Performance 6172H-B wall mount garage door opener easily attaches directly to the garage door’s spring tube mounted high and to the side of the garage door. This design opens the space above where cars would park in your garage. Often referred to as a residential jackshaft garage door opener, this wall mount model also features a Genie wireless wall console, Bluetooth LED light, and remote garage door lock.

• 24-Volt DC motor provides quiet yet exceptional power to lift heavy doors quickly
• Garage door opener automatically transitions to the integrated backup battery as required; the battery backup powers the garage door opener for up to 50 cycles from initial power failure

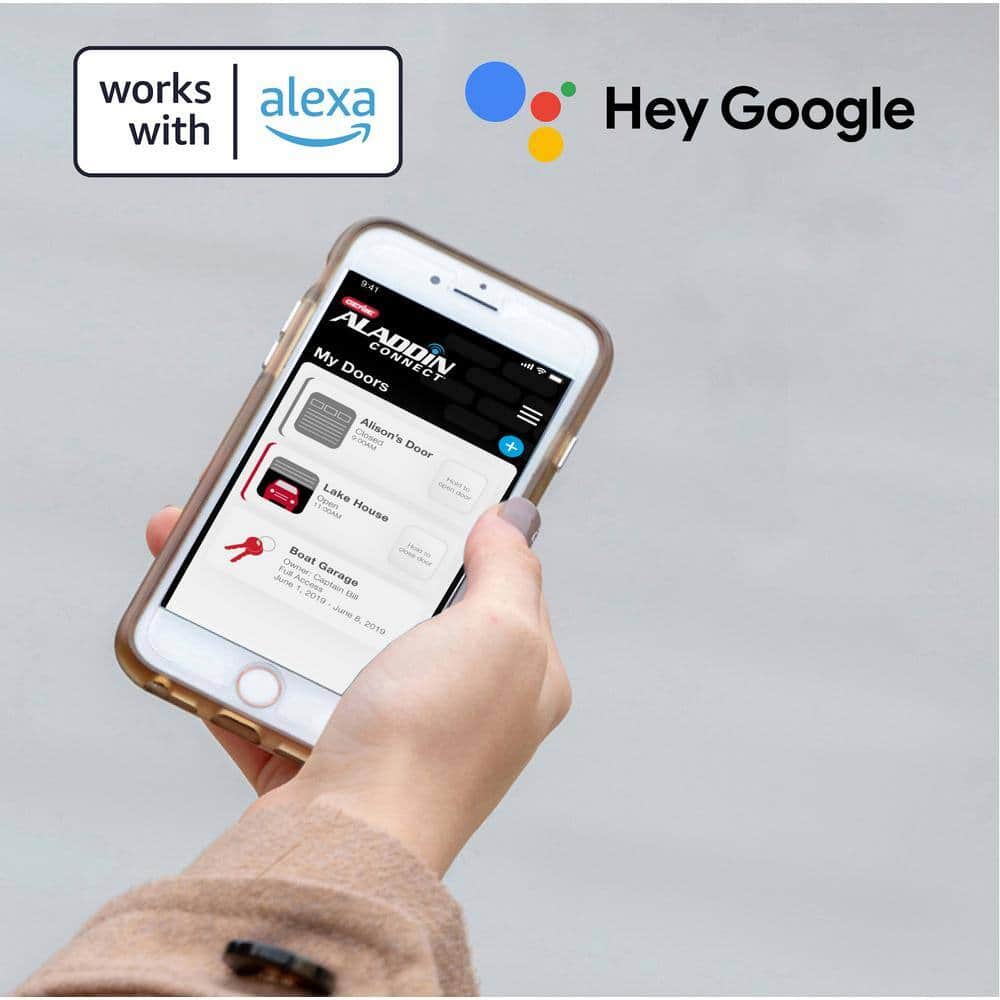

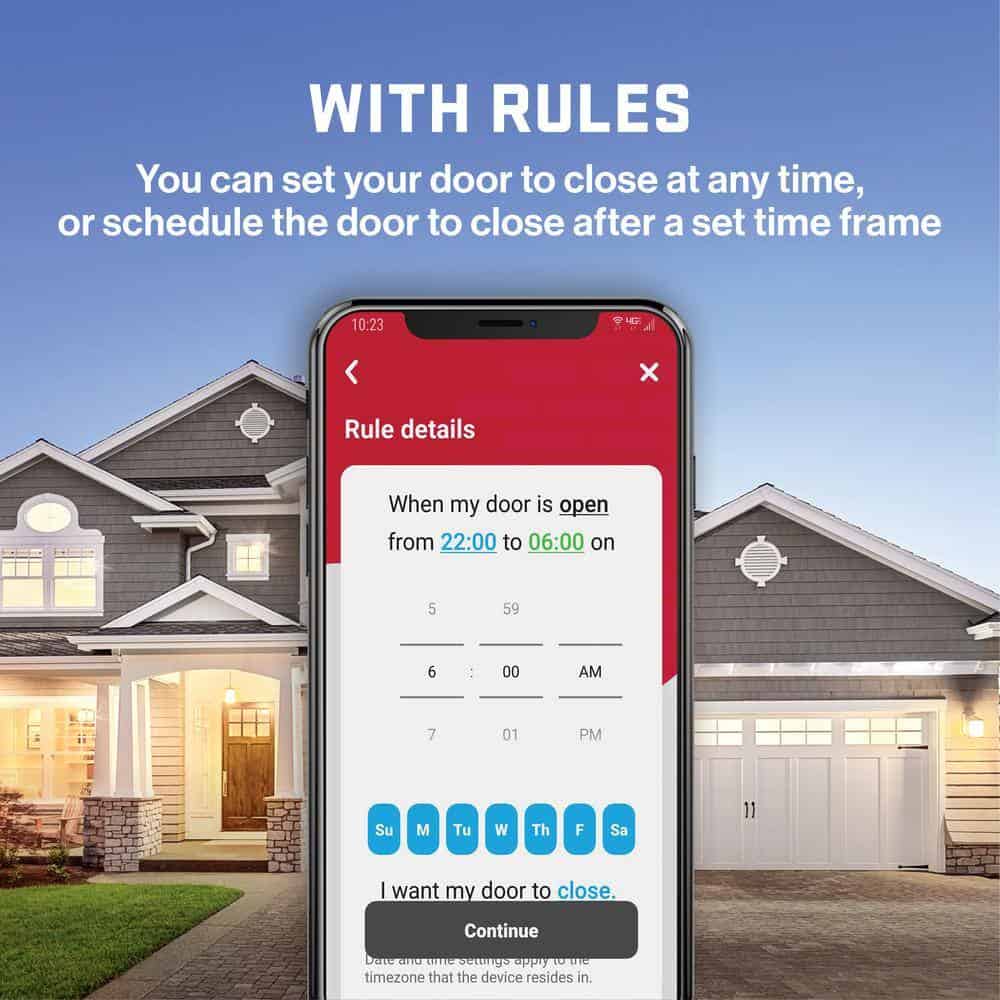

• Aladdin Connect smart home technology allows you to control your garage door opener with your smartphone; compatible with Alexa and Google Assistant. Aladin Connect is available on the App Store and Google Play. Compatible with iPhone 14, Samsung Galaxy S23, and Google Pixel 7.

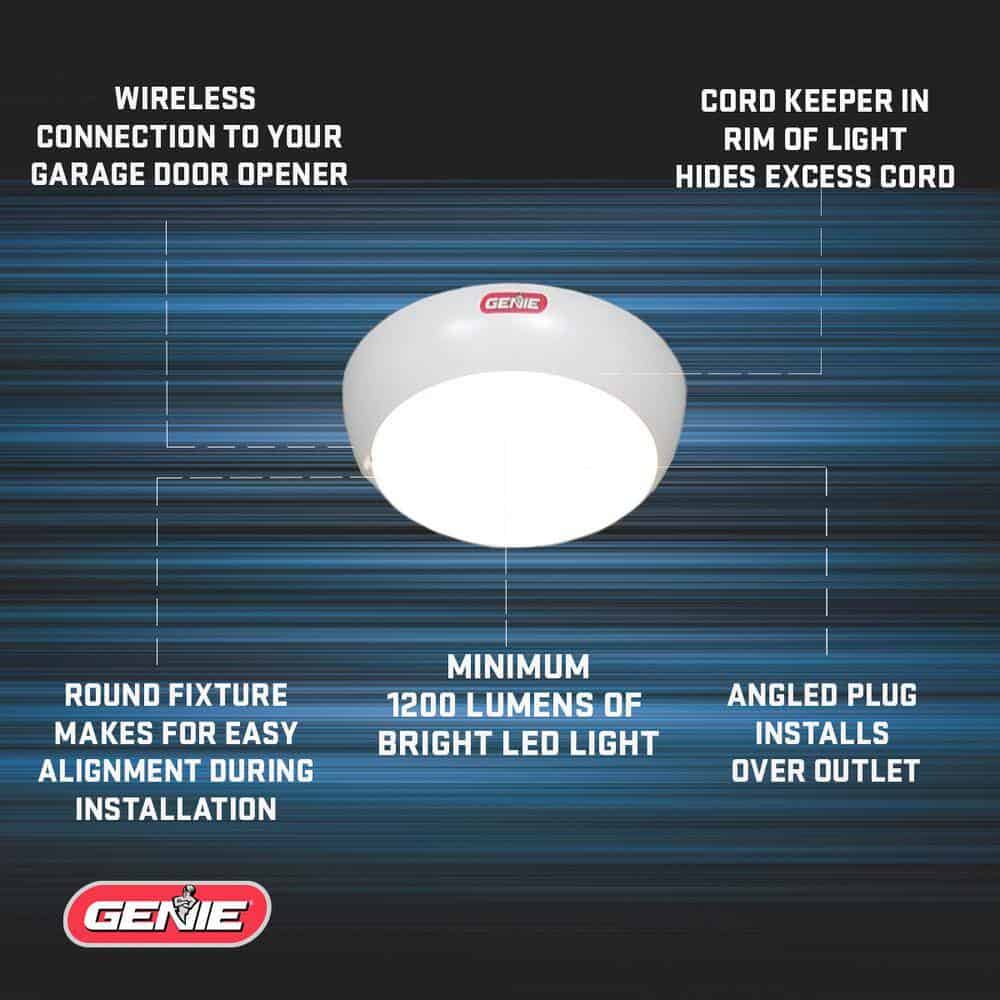

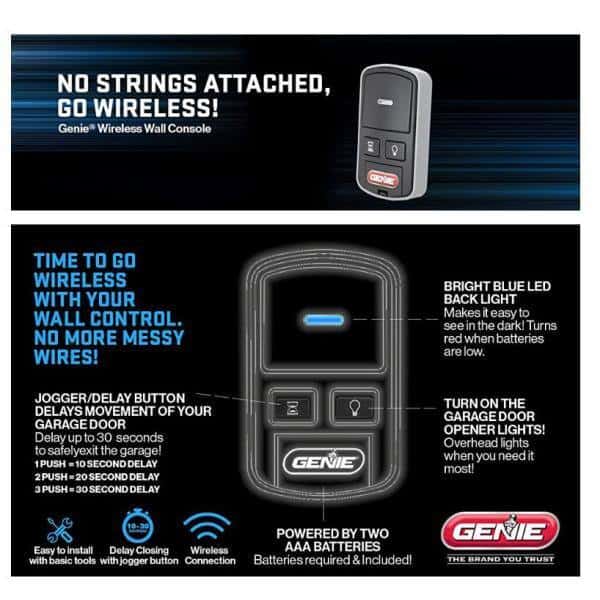

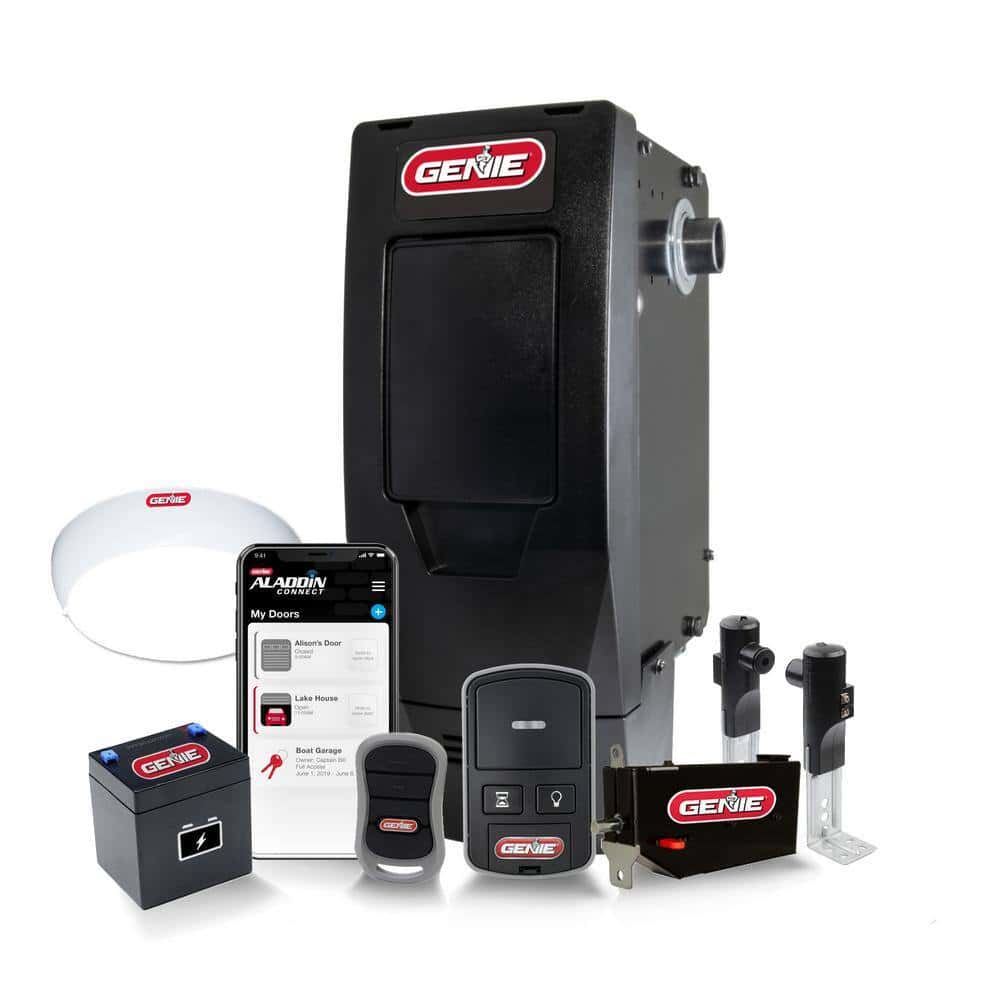

• Accessories include a pre-programmed, 3-button Genie remote, multi-function wall console with a light control button, Bluetooth LED light, remote door lock, and Safe-T-Beam garage door sensors

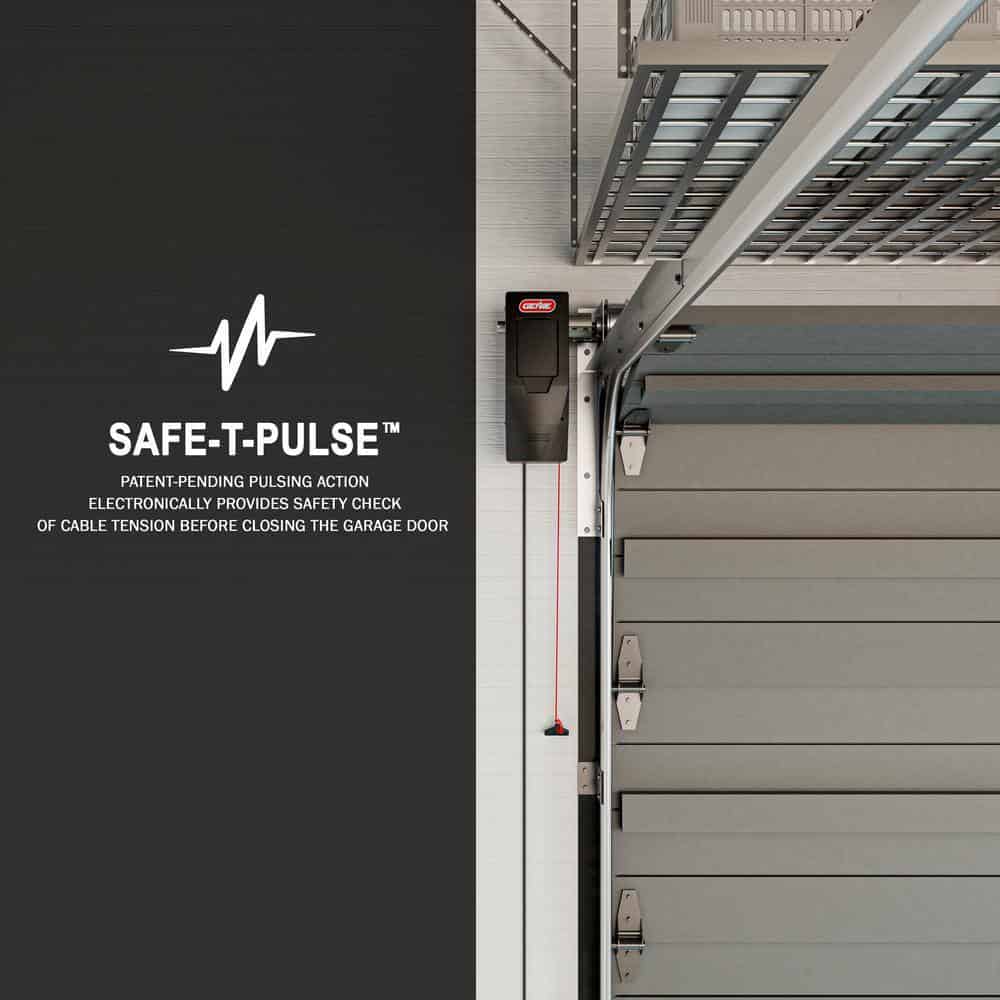

• Features Safe-T-Pulse internal slack cable detection system developed by Genie to insure safe door travel
• Superior safety and security – equipped with Intellicode rolling code technology that prevents unauthorized access by automatically changing the access code after each use
• Self-diagnostic Safe-T-Beam sensors help prevent accidents by projecting an invisible infrared beam across the door opening that reverses the door if an object interferes with the light beam; beams are enhanced with diagnostic technology to alert you of a malfunction
• Designed for lifting heavy sectional garage doors up to 850 lbs., and up to 18 ft. wide
• Compact design measuring 6.8 in. wide x 14.5 in. tall x 9 in. deep making this wall mount garage door opener the smallest available
• Power cord length is 6 ft. Proper installation requires a standard outlet within 6 ft. of the wall mount garage door opener
• Not for use on 1-piece swing style garage doors. Not compatible with reverse-wound, outside pick up spring cables, or with rear-mounted torsion springs
• Will work in retrofit applications with existing track and torsion springs
• For use on doors up to 850lbs balance weight, and up to 18′ wide, 14′ tall or 180sqft maximum. Also will work with standard lift, vertical lift and high lift up to 84″.
• California residentssee Prop 65 WARNINGS

Dimensions

Product Depth (in.)	11 in	Product Height (in.)	25 in
Product Width (in.)	12.25 in	Rail Length (ft.)	0 ft

Details

Bulb Type	LED	Doors Operated by Remote	3
Features	Battery Backup Function	Included	Batteries, Hardware, Instructions, Remote Control
Mounting Location	Wall Mounted	Opener Type	Wall Mount
Pack Size	1 Pack	Power Options	Plug-in
Product Type	With Battery Backup	Product Weight (lb.)	32 lb
Remote Access	Remote Access	Requires Hub?	No Hub Required
Works With	Alexa, Alexa, Google Assistant, Proprietary App, Samsung SmartThings	Smart Home	Smart Home Enabled
Smart Home Protocol	Wi-Fi	Voice Control Hub Required	No Hub Required for Voice Control

Warranty / Certifications

Manufacturer Warranty	Limited 15-Year Motor, 5-Year Parts
