Makita 563303 5.2 Gal. 3.0 HP Electric Single Tank Air Compressor
$413.10
- Oil-lubricated pump for long-lasting life
- Delivers 6.5 CFM at 90 PSI for peak productivity
- Provides superior performance for framing and nailing tasks
Out of stock

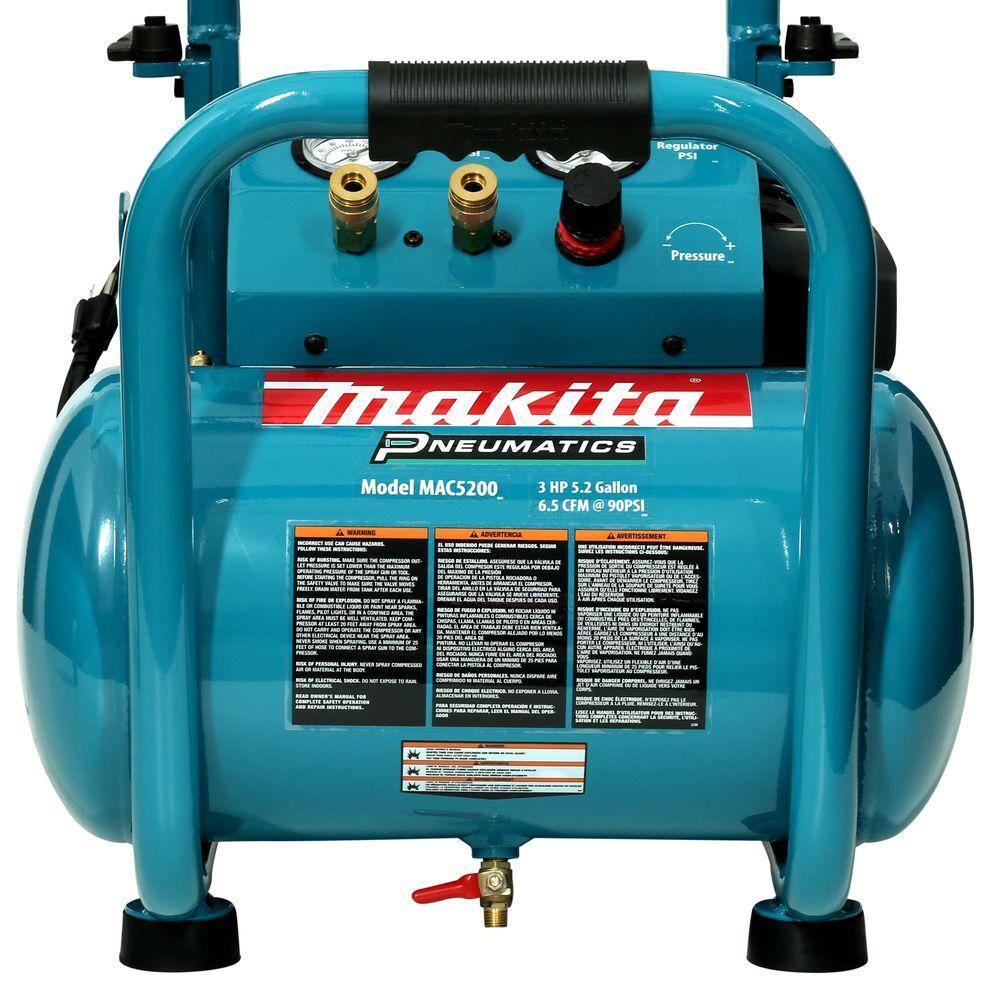

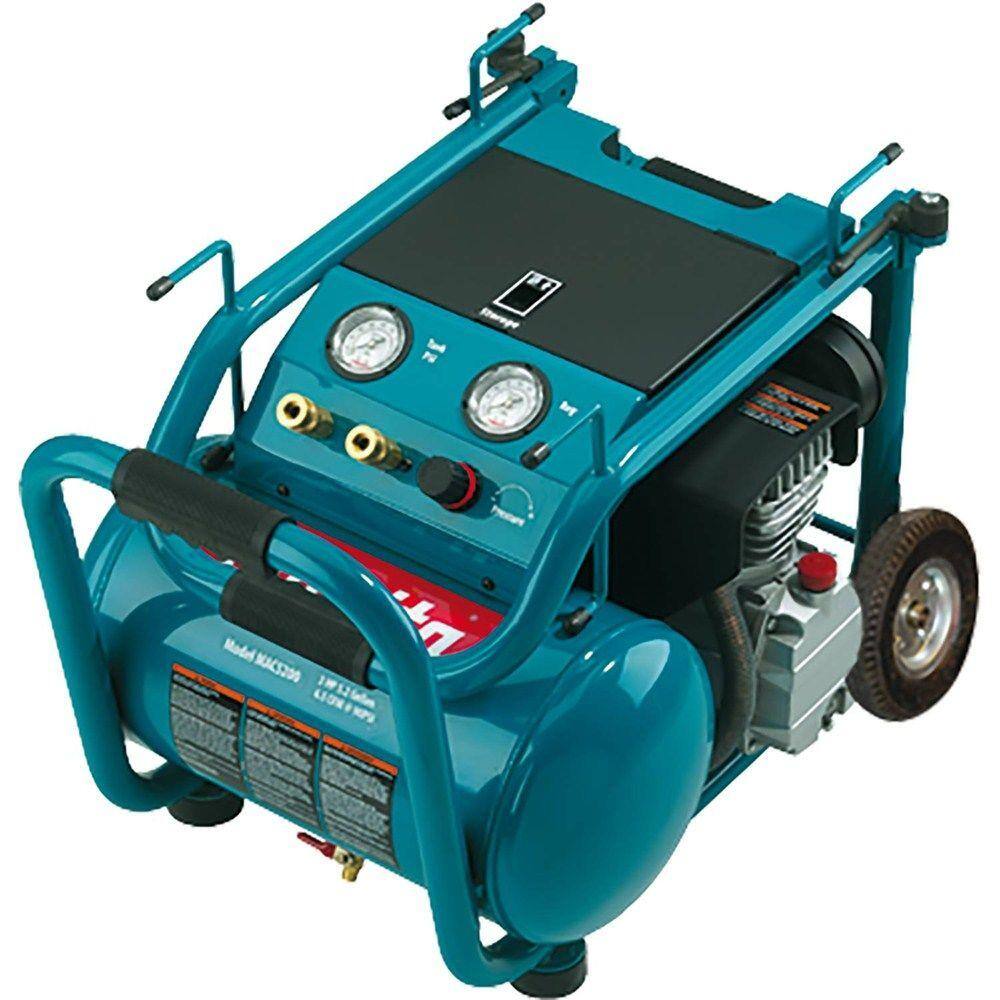

Makita 563303 5.2 Gal. 3.0 HP Electric Single Tank Air Compressor
Makita’s 3.0 HP Air Compressor is equipped with Makita’s Big Bore engineered pump cylinder and piston for higher output for two nailers, with less noise and improved job site performance. The MAC5200 delivers industrial power and results with improved durability, and it also includes rugged wheels and a folding handle for easy transport. The MAC5200 is powered by a 3.0 HP motor with built-in thermal overload for additional protection. The engineered pump with cast iron cylinder has greater bore and stroke for increased compression, faster recovery and less noise.

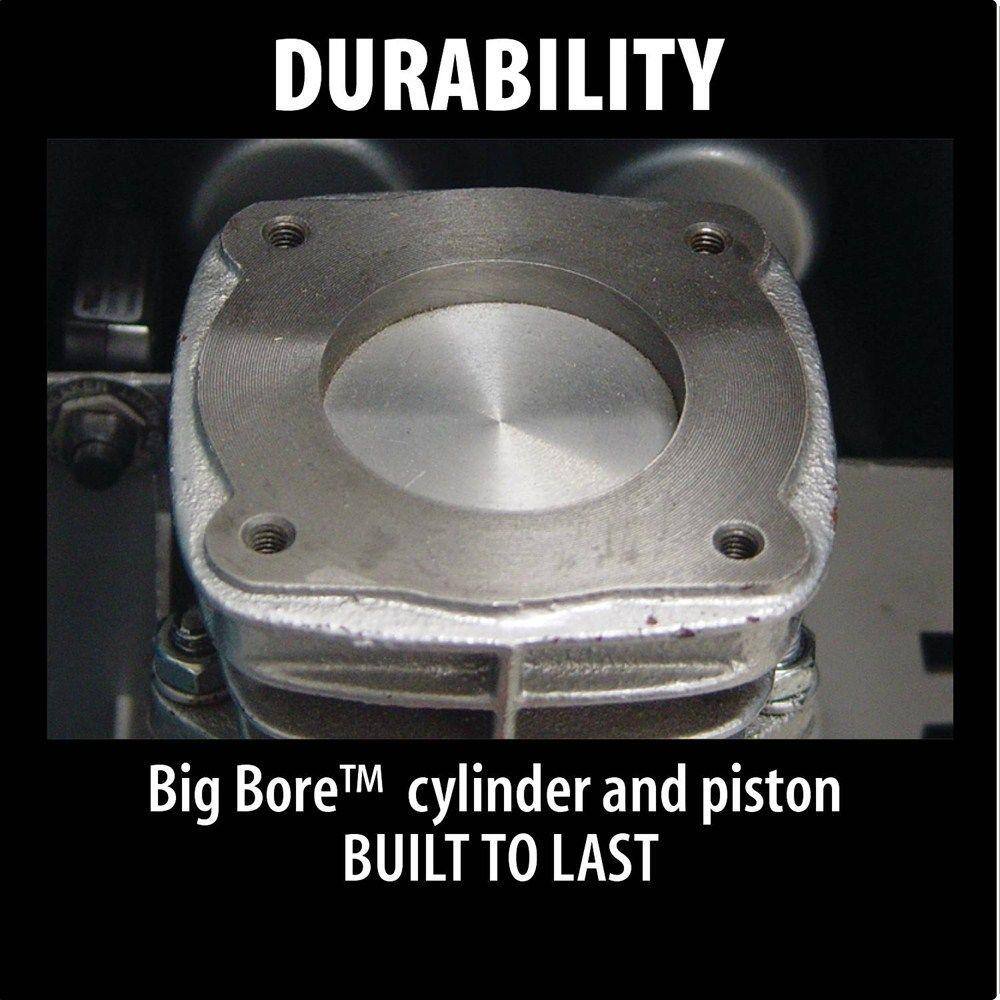

- Cast iron pump with big bore cylinder and piston is engineered to provide faster recovery time for improved performance

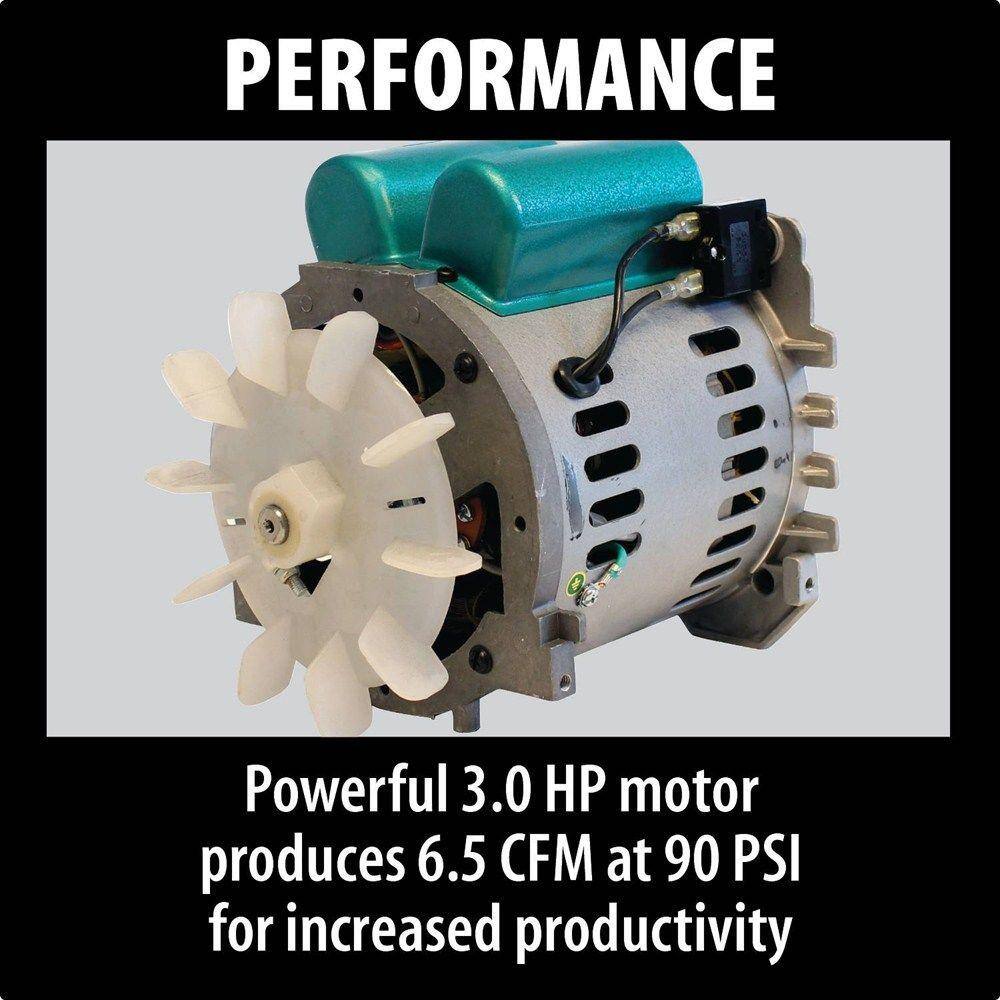

- Powerful 3 HP motor produces 6.5 CFM at 90 psi for increased productivity
- Pump is oil-lubricated for cooler running temperatures and reduced wear
- Durable cast iron cylinder reduces wear and increases pump life; removable for easy maintenance

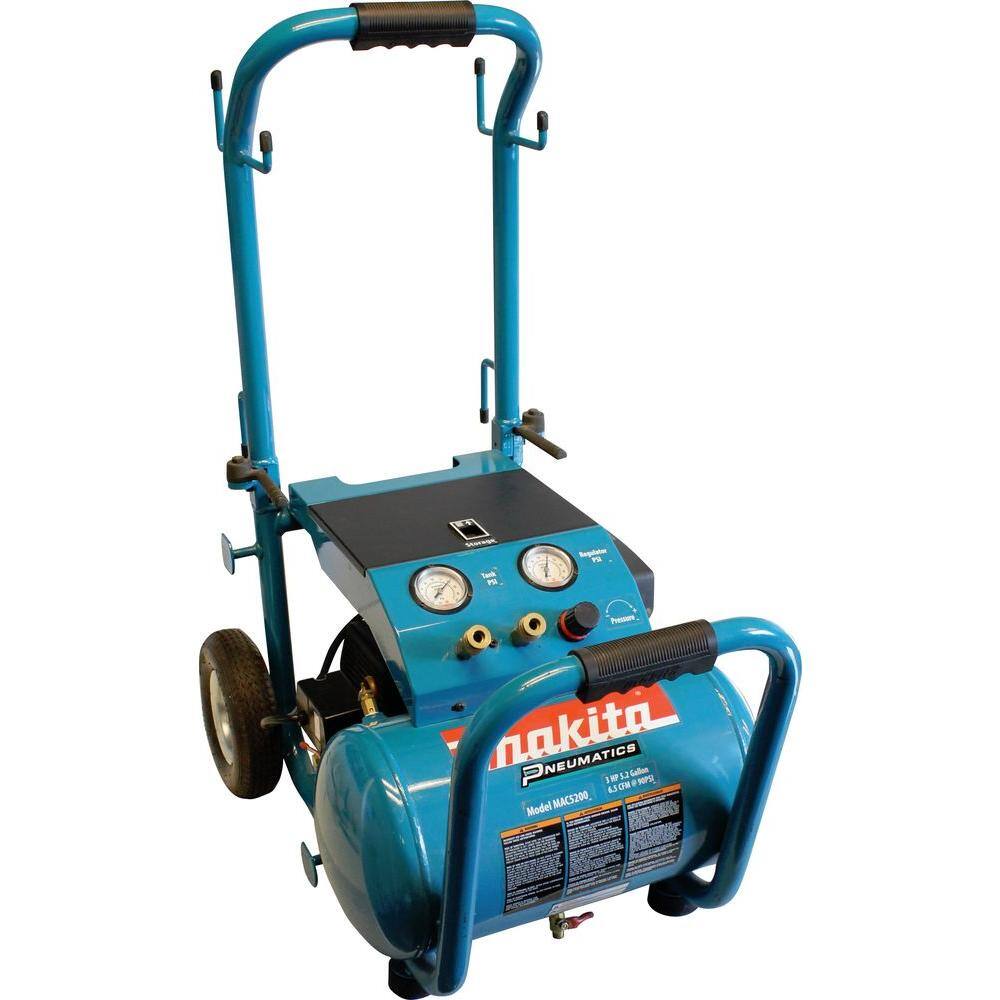

- Folding handle with low-profile design for easy storage with handle folded

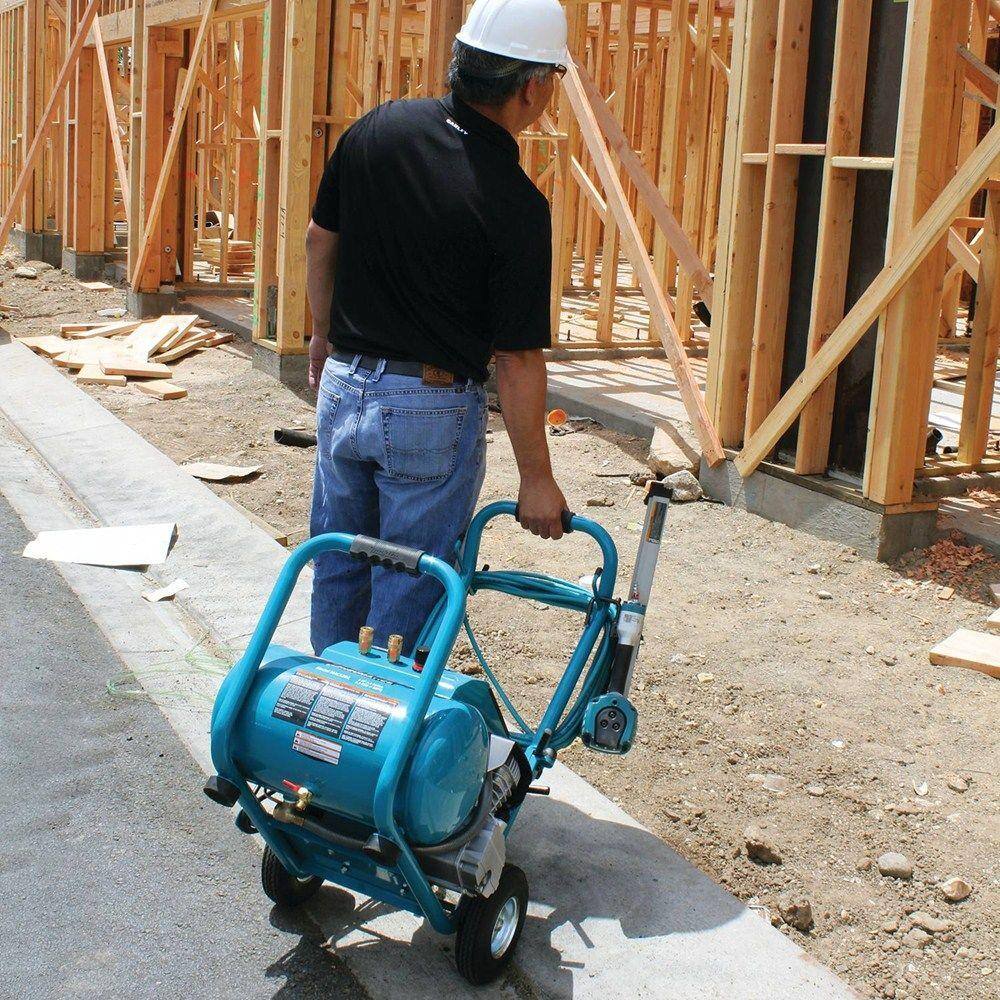

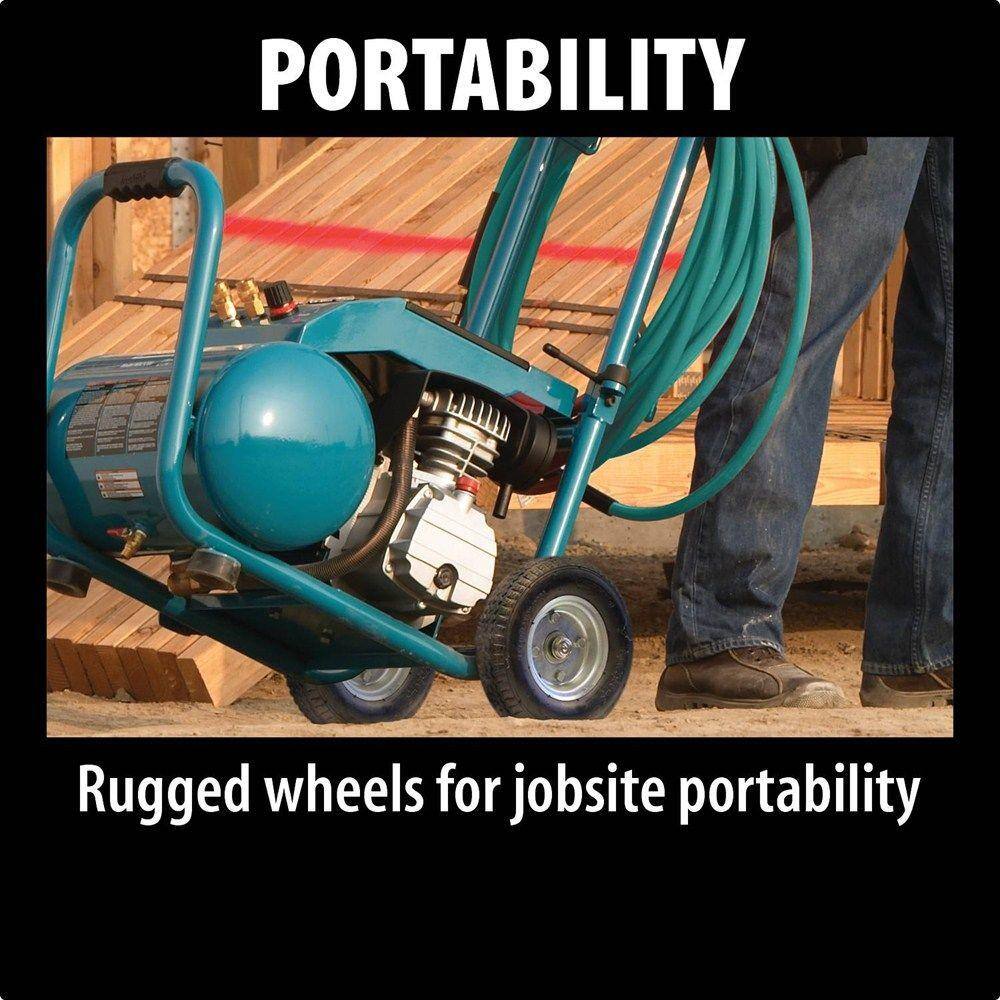

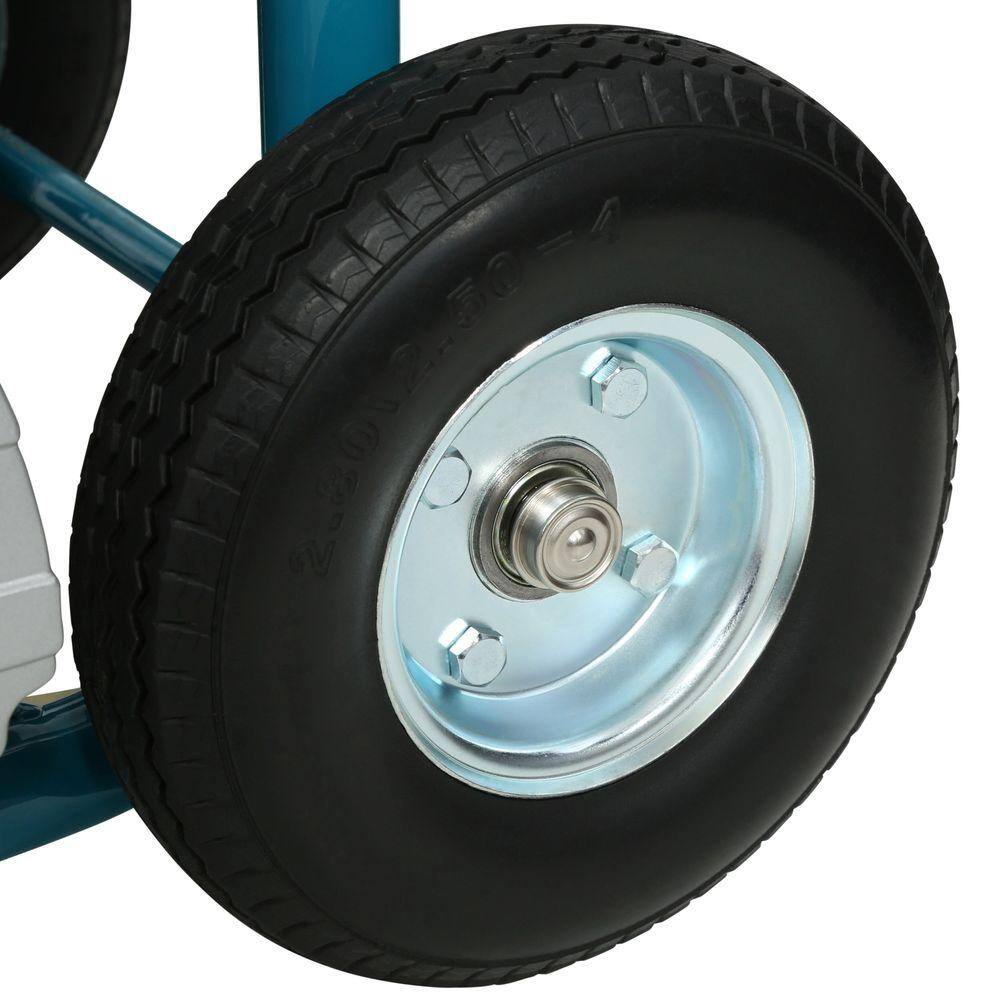

- Rugged wheels for job site portability
- Built-in storage compartment conveniently stores air fittings and accessories

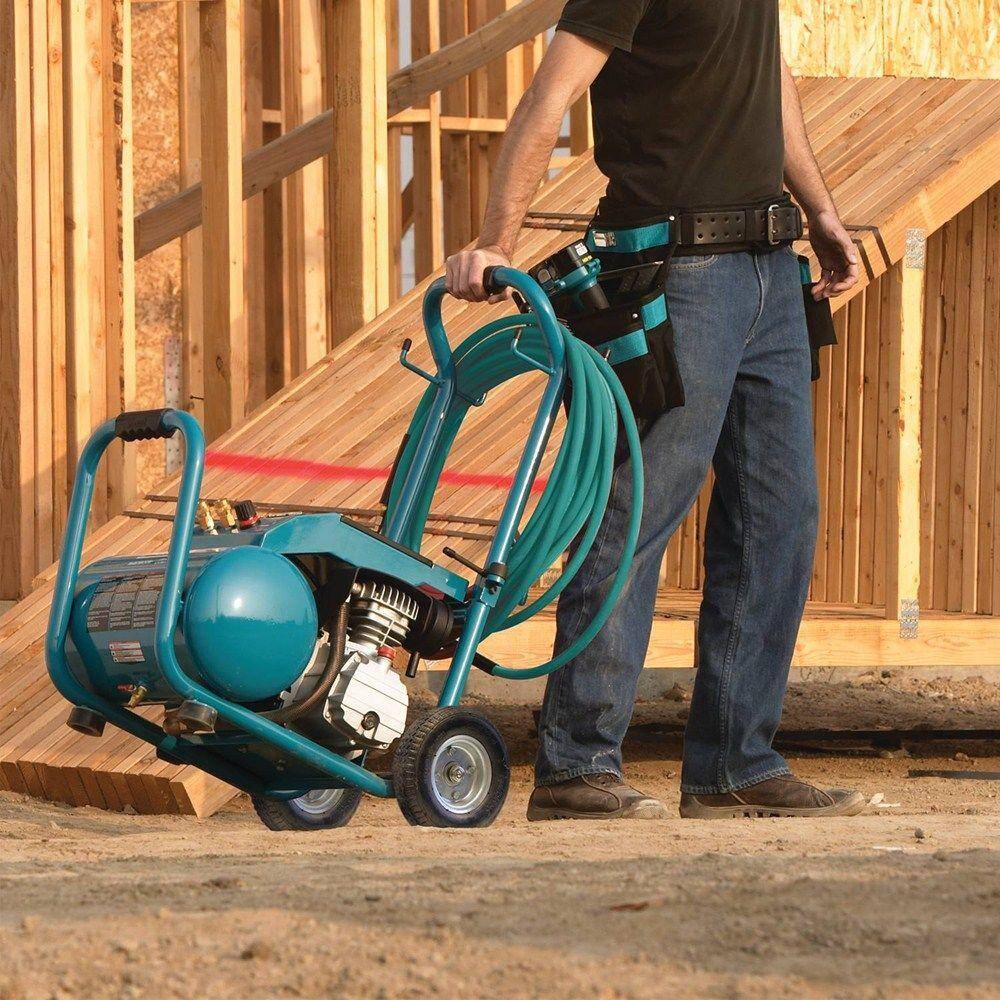

- Air hose wrap stores 50 ft. of 3/8 in. air hose with handle folded or upright
- Copper finned discharge tubing for increased heat dissipation and reduced water in the tank

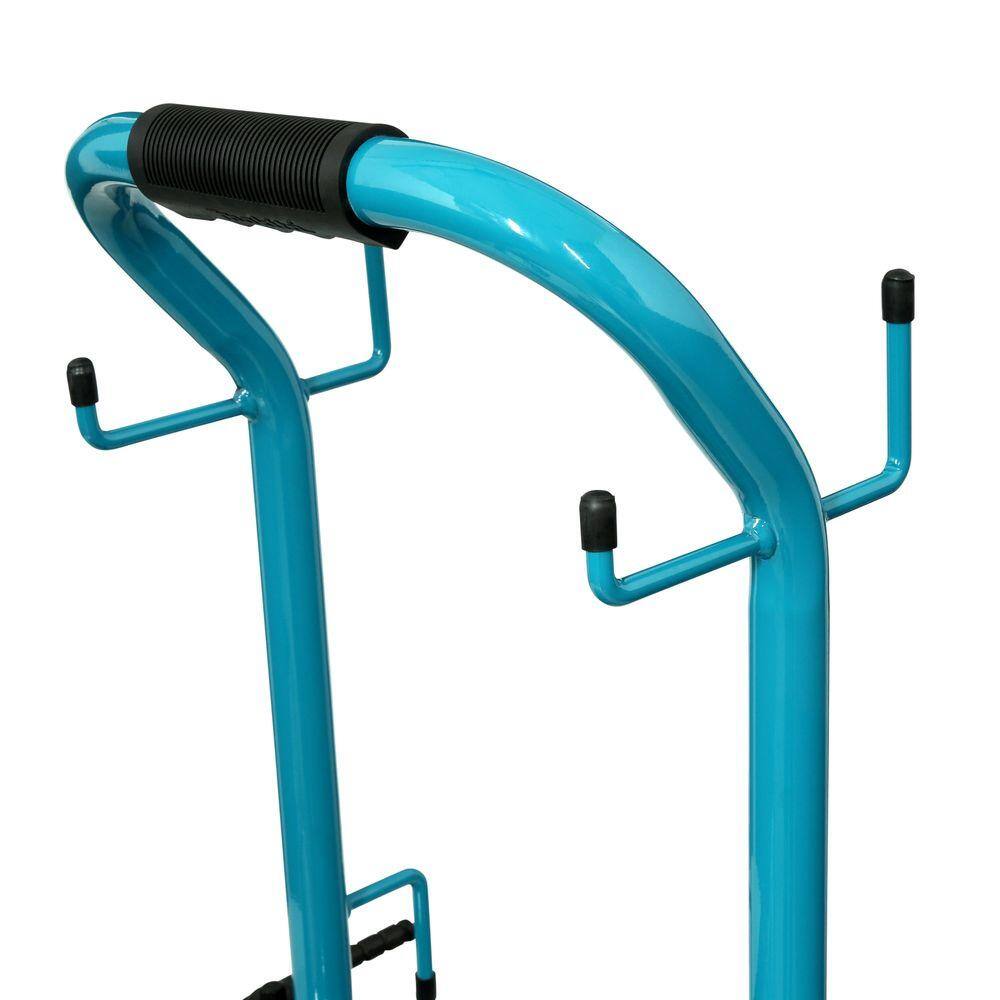

- Tool hangers store tools when not in use

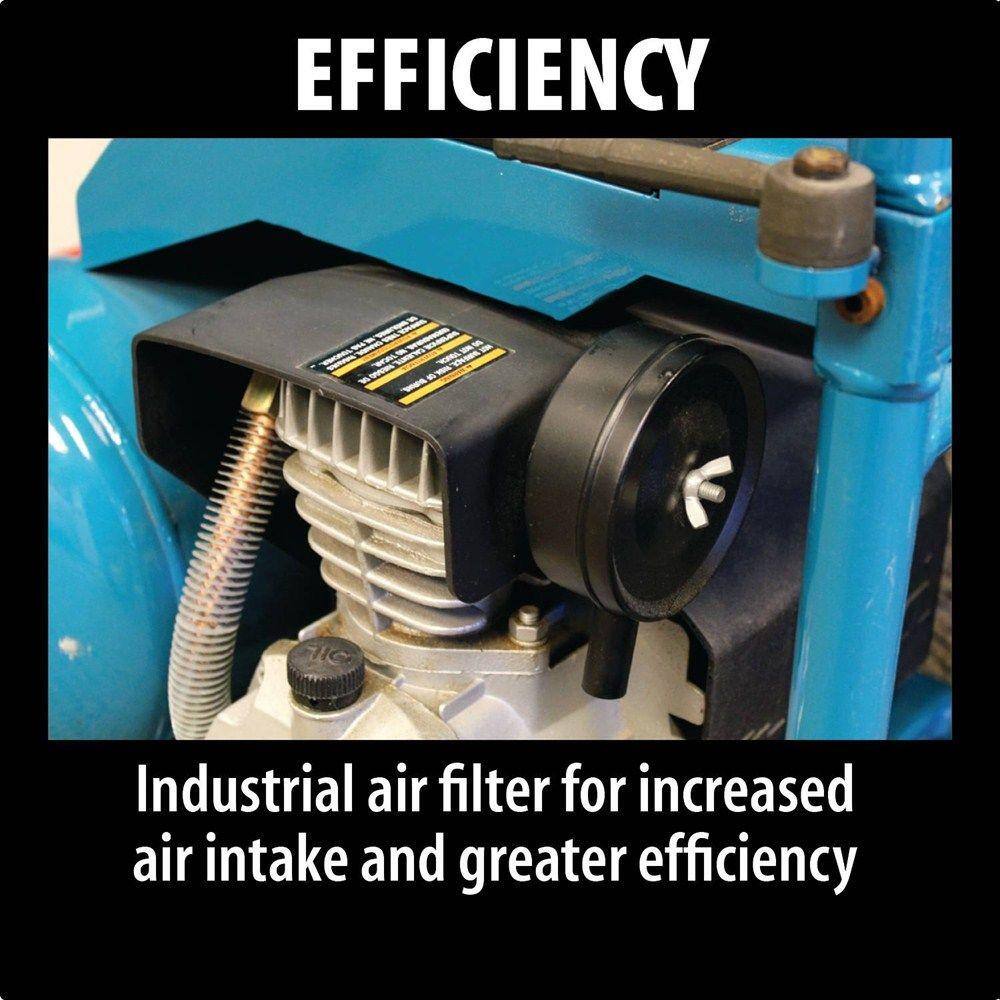

- Large automotive style industrial air filter for increased air intake and greater efficiency
- Roll cage construction for extra protection to pump and motor assembly
- Oil sight glass for fast, easy and efficient maintenance
- Lever handle ball valve – tank drain valve improves upon standard petcock design for easier maintenance
- Convenient oil drain at the front of the pump for easy access

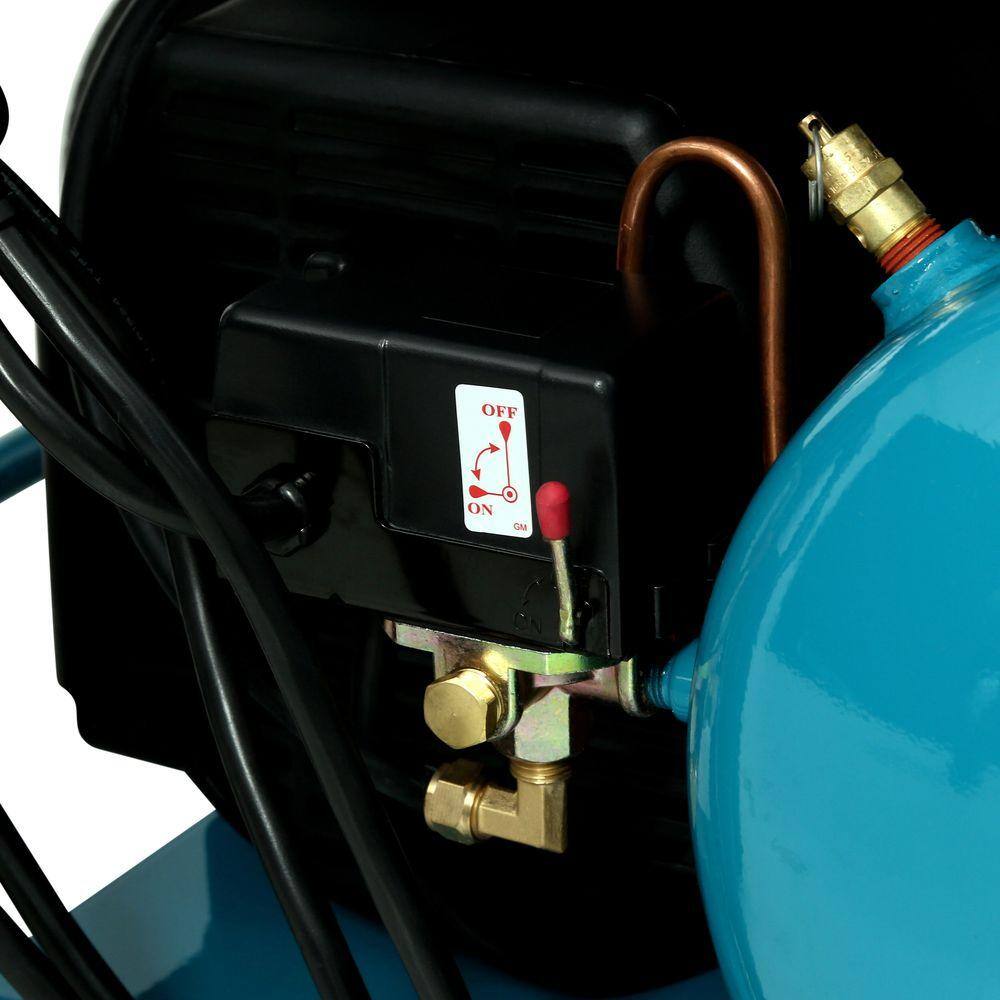

- Built-in thermal overload for additional motor protection
- 1-year warranty
- Includes compressor oil (181122-A) and 1/4 in. universal quick coupler (447013-E)
- <a href=”https://www.homedepot.com/c/air_compressors_HT_BG_TH” target=”_blank” Need help? CLICK HERE to view our Air Compressor Buying Guide
Dimensions
| Product Depth (in.) | 29 | Product Height (in.) | 19.5 |
|---|---|---|---|
| Product Width (in.) | 19 |
Details
| Air Delivery SCFM @ 40PSI | 6.9 | Air Delivery SCFM @ 90PSI | 6.5 |
|---|---|---|---|
| Amperage (amps) | 13.8 A | Application Use | Blow Cleaning, Brad Nailing, Drilling, Finish Nailing, Hobby Nailing, Hobby Painting, Roof Nailing, Spraying, Stapling |
| Battery Amp Hours | No Battery | Battery/Charger | Tool Only |
| Charger Included | Charger Not Included | Compressor Tank Capacity (Gallons) | 5.2 gal |
| Compressor Type | Contractor | Compressor Volume Rating | Standard |
| Compressor/Air Tool Features | Handle | Condition | New |
| Decibel Rating (Outdoor) | 90 dBA | Horsepower (hp) | 3 hp |
| Included | No additional components or accessories are included | Included in Combo | Compressor Only |
| Lubrication Type | Oil | Maximum Pressure (psi) | 140 psi |
| Number of Total Batteries Included | 0 | Portable | Yes |
| Power Source | Electric | Power Type | Corded Electric |
| Product Weight (lb.) | 88 | Reconditioned | No |
| Voltage (volts) | 120 V | Stage Count | Single Stage |
| Tank Material | Cast Iron | Tank Style | Horizontal |
| Tools Product Type | Air Compressor | Voltage (v) | 120v |
Warranty / Certifications
| Certifications and Listings | UL Listed | Manufacturer Warranty | 1 Year Warranty |
|---|
Manuals and Support
| Brand |
|---|

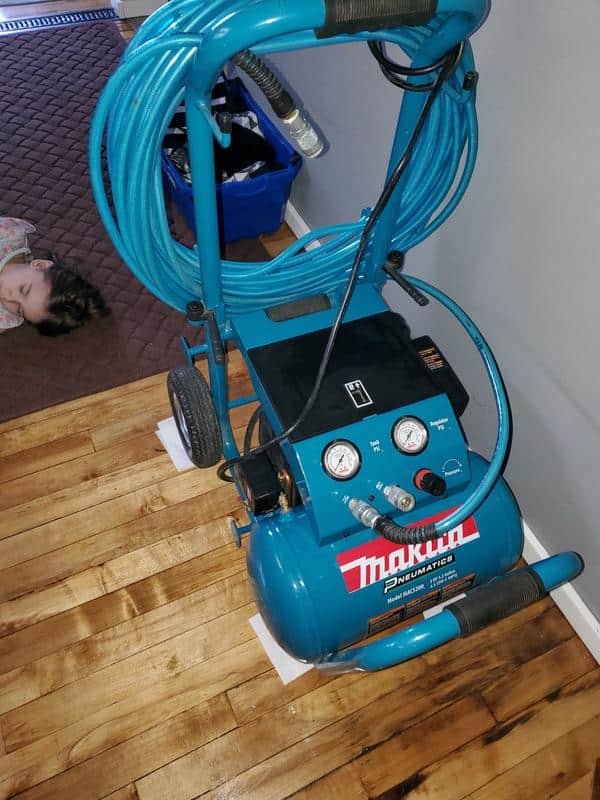

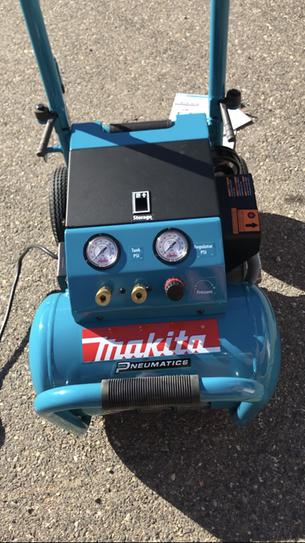

GettinFit –
Compressor works great …gets to full cut-out pressure very quickly, runs smooth and quiet, and has very good pressure release valve …excellent small compressor.
