Rok G04431A-15-50 1/2 in. (35 mm) Overlay 108-Degree Soft Close Face Frame Cabinet Hinge (50-Pack)

Rok G04431A-15-50 1/2 in. (35 mm) Overlay 108-Degree Soft Close Face Frame Cabinet Hinge (50-Pack)

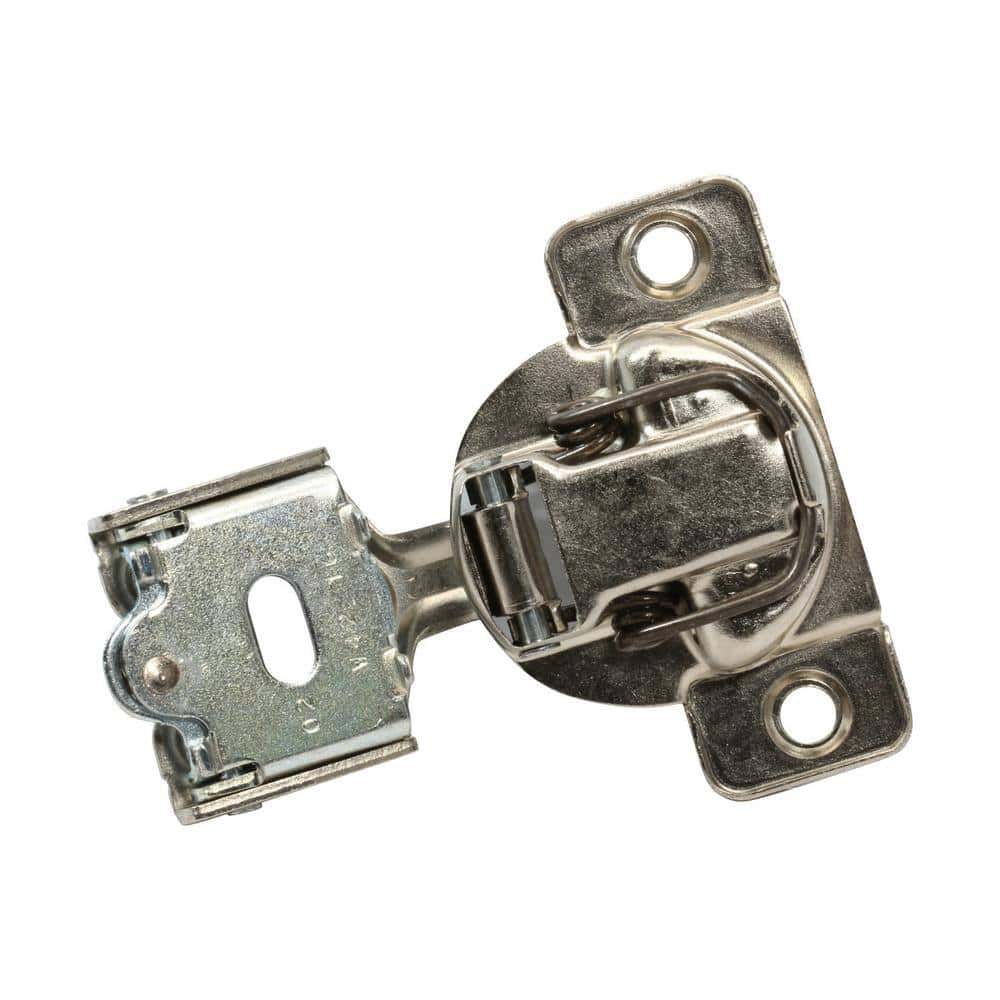

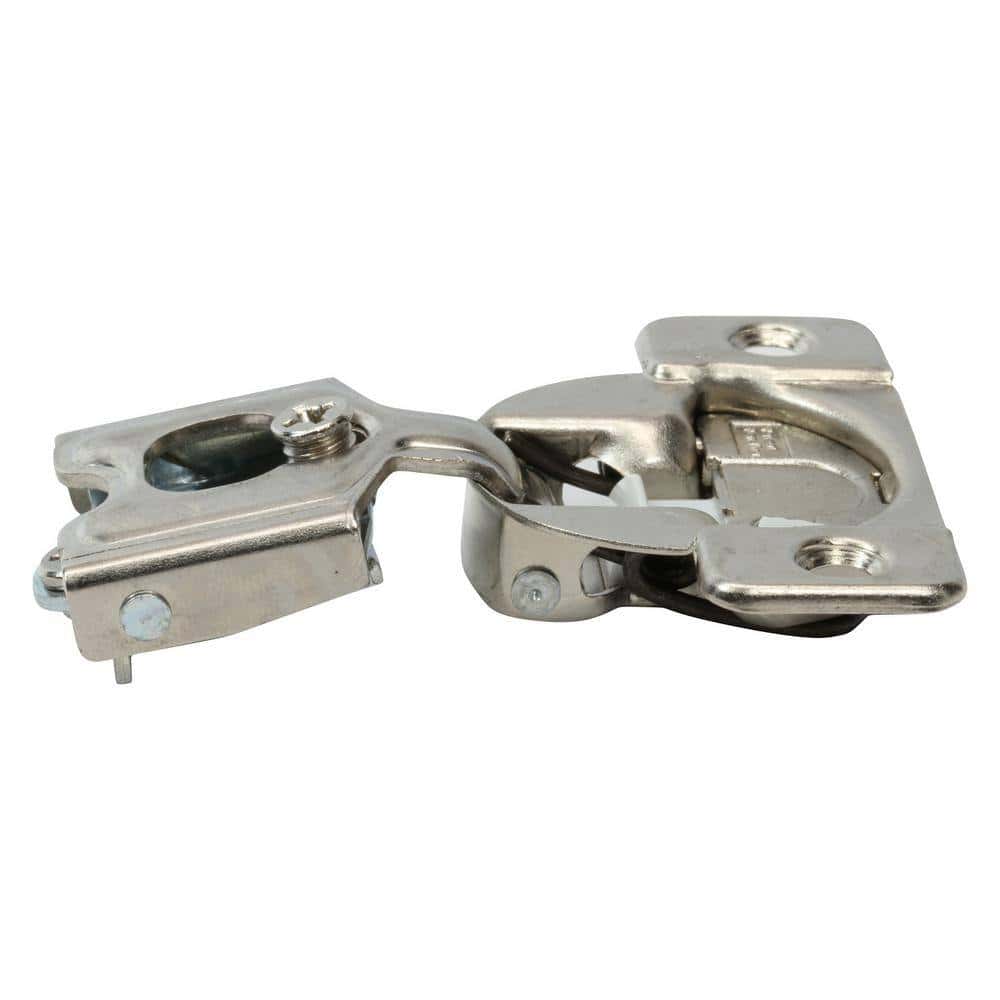

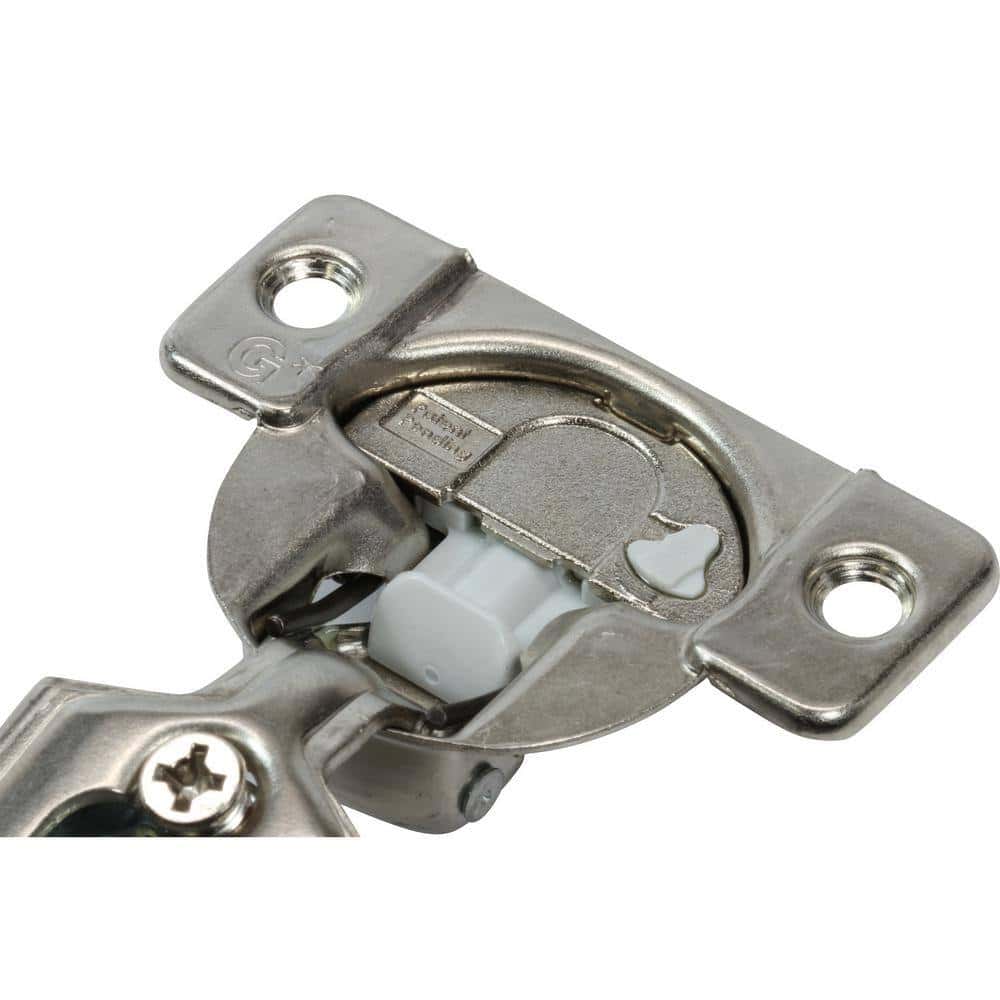

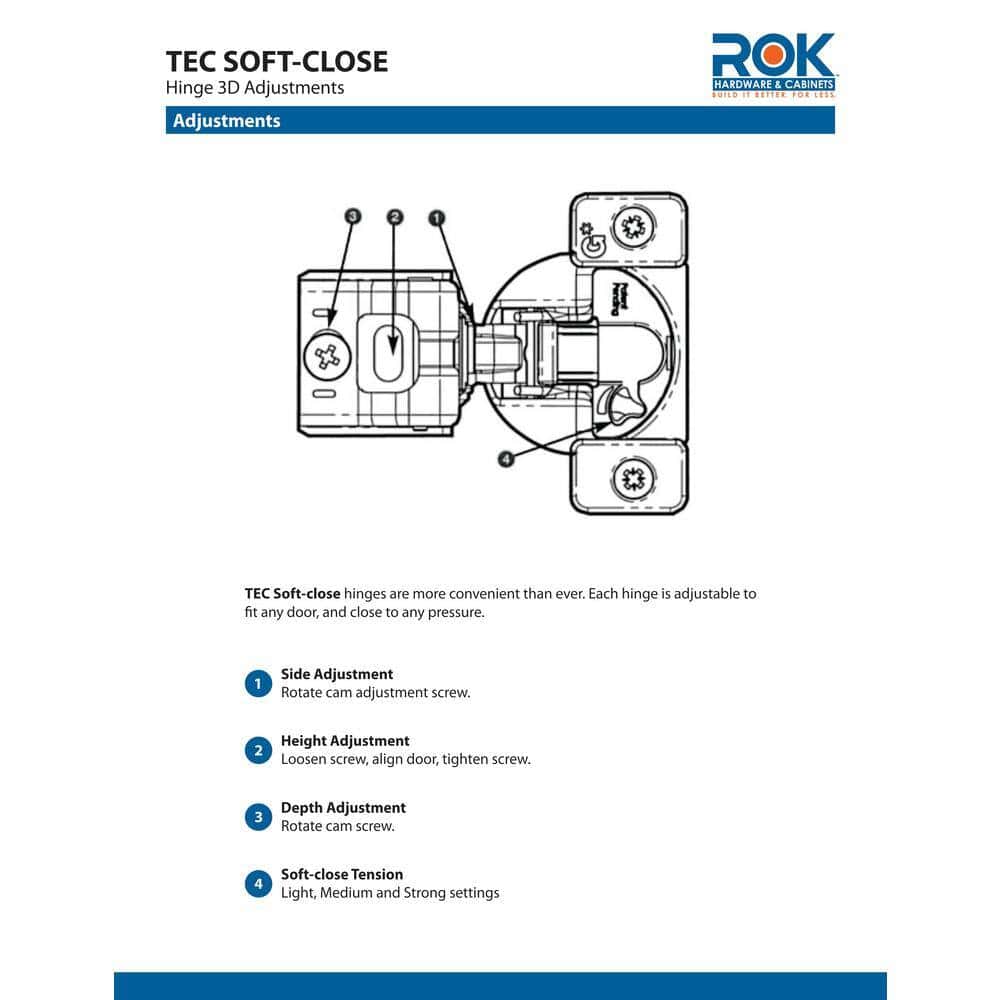

Face Frame Hinge with integrated Soft-close No additional installation of the Soft-close is required. A 3 tiered adjustment switch allows various levels of resistance in the damping system. Material: Steel, TEC hinges feature a solid metal hinge cup. All moving mechanism parts, including pivot pins, linkages and springs are hardened to ensure long-term durability Soft-close damper is premounted in the hinge cup Adjustment switch to regulate closing action 1-piece hinge and base plate combination 3 dimensional adjustment 11 mm (7/16 in.) cup drilling depth Front locating tabs position hinge on face frame Works with current Grass insertion machinery Includes installation screws: 2X #6 x 5/8 in. Wood Screws and 1X #10 x 3/4 in. Wood Screw per hinge Side Cam Adjustment: plus/minus 1.5 mm (1/16 in.) H Adjustment at mounting screw: plus/minus 2 mm (3/32 in.) D Cam Adjustment: plus 2.5 mm (3/32 in.), minus 5 mm (1/32 in.) Screw hole distance: 45 mm (1-25/32 in.) Cup Boring Diameter: 35 mm (1-3/8 in.) Hinge Overlay: 1/2 in. Series: TEC 864 Cabinet Type: Face Frame Fixing Type: Screw On Closing Mechanism: Soft Closing Hinge Opening Angle: 108° Base Plate: Wrap Mount.

• Rok TEC 864 soft close wrap mount cabinet hinge
• 3-way adjustable in and out cam adjustment with 108° hinge opening angle
• Screw on wrap around mount cabinet hinges include 4X #6 x 5/8 in. wood screws and 2X #10 x 3/4 in. wood Screws for easy installation

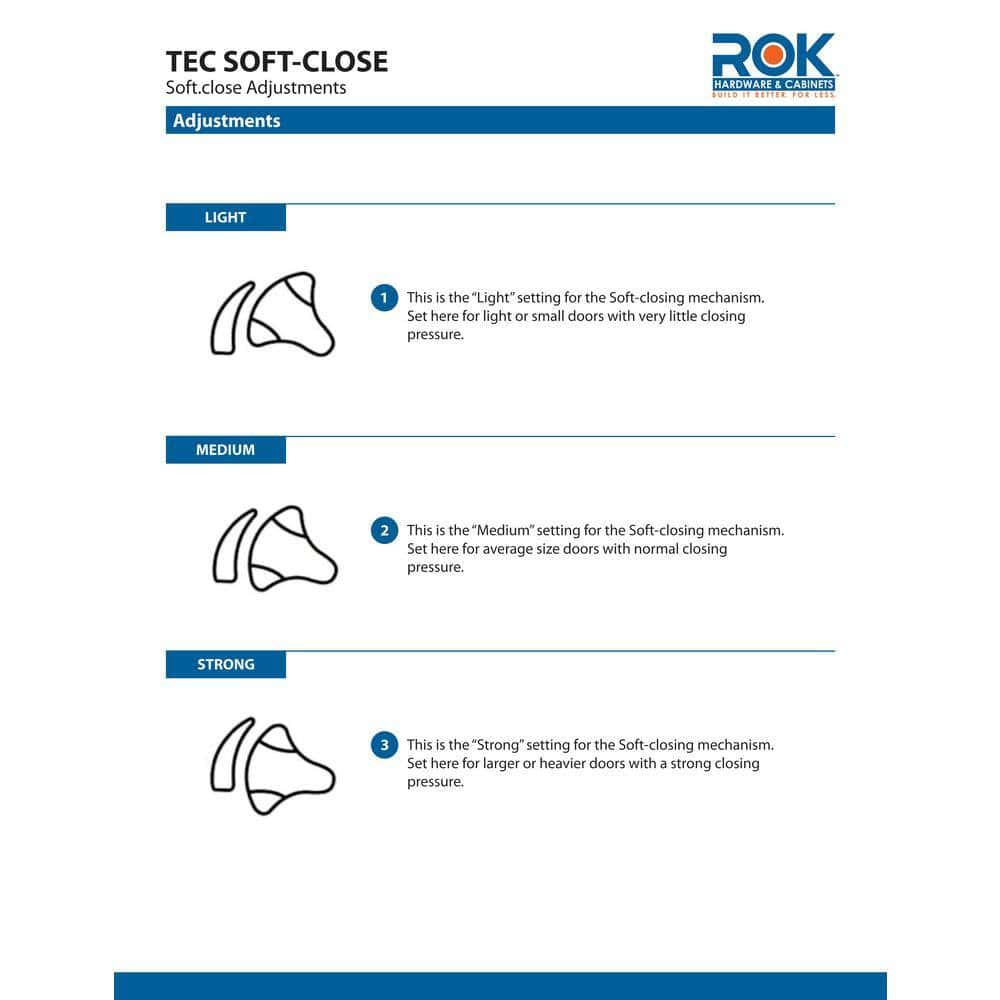

• 1/2 in. overlay soft closing hinge with custom 3 level soft close strength adjustment switch
• California residentssee Prop 65 WARNINGS



Dimensions

Product Depth (in.)	2 in	Product Height (in.)	8 in
Product Width (in.)	6 in

Details

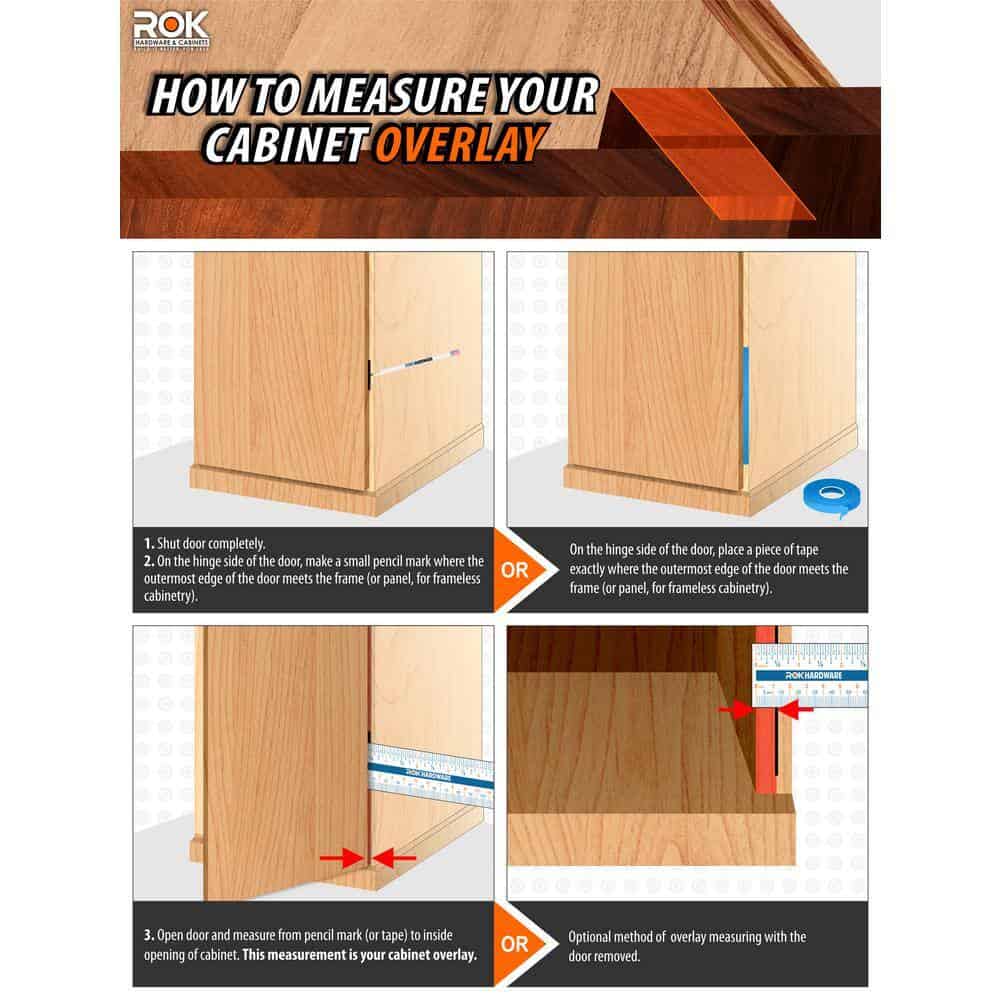

Builders Hardware Product Type	Cabinet hinge	Cabinet Door Type	1/2 inch Overlay
Cabinet Frame Type	Face Frame	Features	Soft Close, Value Pack
Finish	Satin Nickel	Hardware Color Family	Nickel
Hardware Finish Family	Satin	Hinge Opening (Degrees)	108
Hinge Type	Partial Overlay	Material	Steel
Number of Holes	3	Package Quantity	50

Warranty / Certifications

Manufacturer Warranty	Limited Warranty

Manuals and Support

• Warranty
