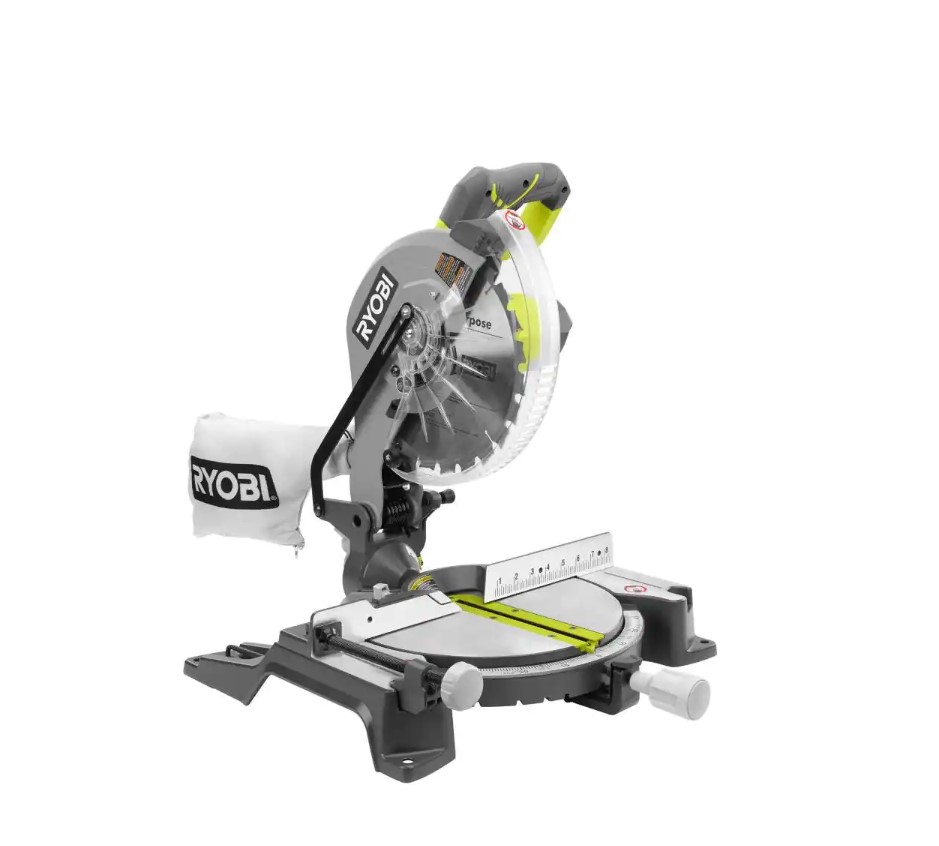

RYOBI Miter Saw TS1346 10 in. Compound with LED

RYOBI Miter Saw TS1346 10 in. Compound with LED

RYOBI introduces the 10 in. Compound Miter Saw with LED. The heavy duty 14 Amp motor delivers up to 5,500 RPM for the power to make difficult cuts. It features a 1-1/4 in. dust port to help keep your work area clean. The 24-tooth Carbide-Tipped blade provides improved performance for fast, clean cuts and an LED Cutline Indicator for higher accuracy. Backed by the RYOBI 3-Year Manufacturer’s Warranty, the 10 in. Compound Miter Saw with LED includes a 24-tooth Carbide Tipped Blade, a blade wrench, a dust bag, a work clamp, and an operator’s manual.

• Powerful 14 Amp motor boasts 5,500 RPM for heavy duty cutting
• LED Cutline Indicator for higher accuracy cutting
• Miter stops located at the most common angles 0 degree , 15 degree , 22.5 degree , 31.6 degree , and 45 degree left and right for quick cut settings
• Electric brake stops the blade in seconds
• Adjustable bevel 0 degree – 45 degree with adjustable positive stops at 0 degree and 45 degree
• Spindle lock for easy single wrench blade changes
• Extended miter range from 47 degree left and right for a wide variety of cuts
• Machined and cast miter scale for accuracy
• 3-year manufacturer’s warranty

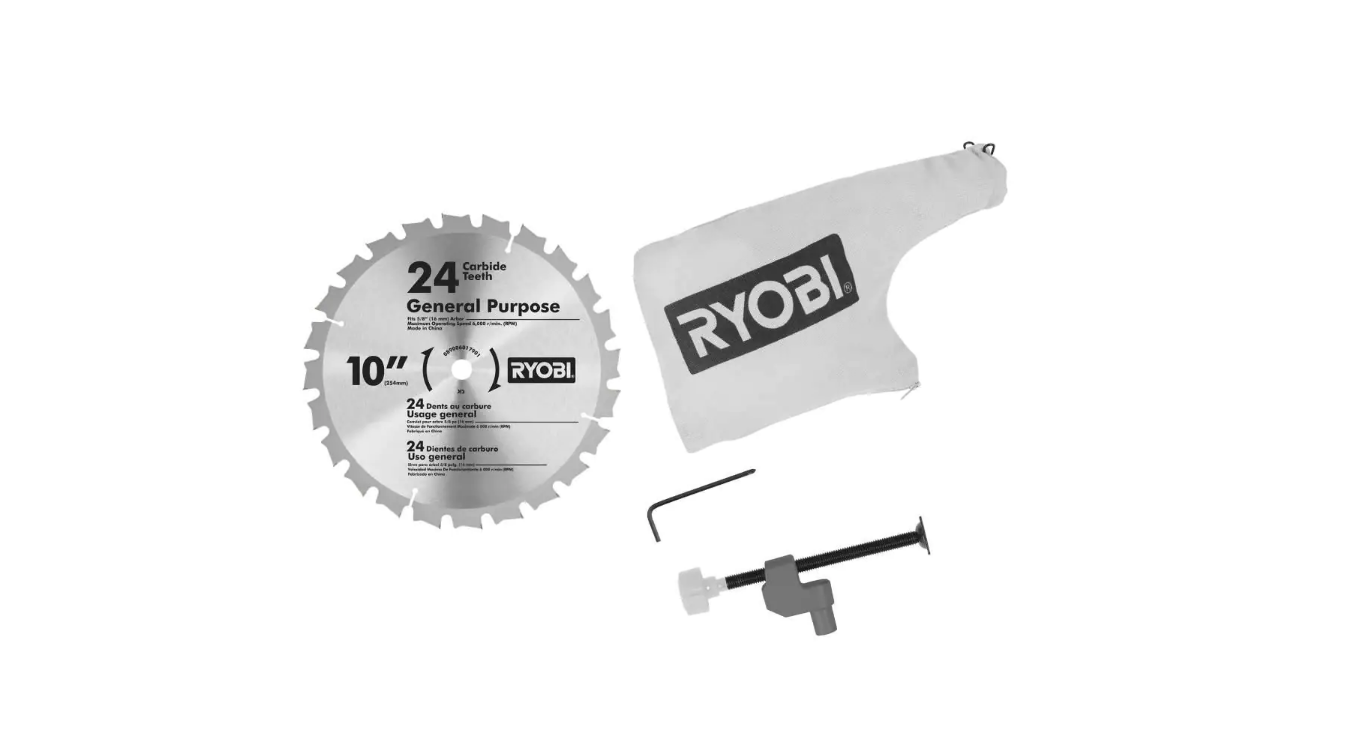

• Includes: (1) TS11346 10 in. Compound Miter Saw, 24-tooth Carbide-Tipped blade, blade wrench, dust bag, work clamp, and operator’s manual

Dimensions

Arbor Size (in.)	5/8 in	Blade Diameter (in.)	10 in
Product Depth (in.)	16.92 in	Product Height (in.)	23.21 in
Product Width (in.)	15.34 in	Work Table Height From Floor (in.)	2 in
Work Table Length (in.)	18 in	Work Table Width (in.)	6 in

Details

Amperage (A)	14 A	Bench & Stationary Tool Type	Compound Miter Saw
Bevel Type	Single Bevel	Color Family	Green
Condition	New	Construction Material	Acrylonitrile Butadiene Styrene (ABS)
Cord Length (ft.)	6 ft	Cordless/Corded	Corded

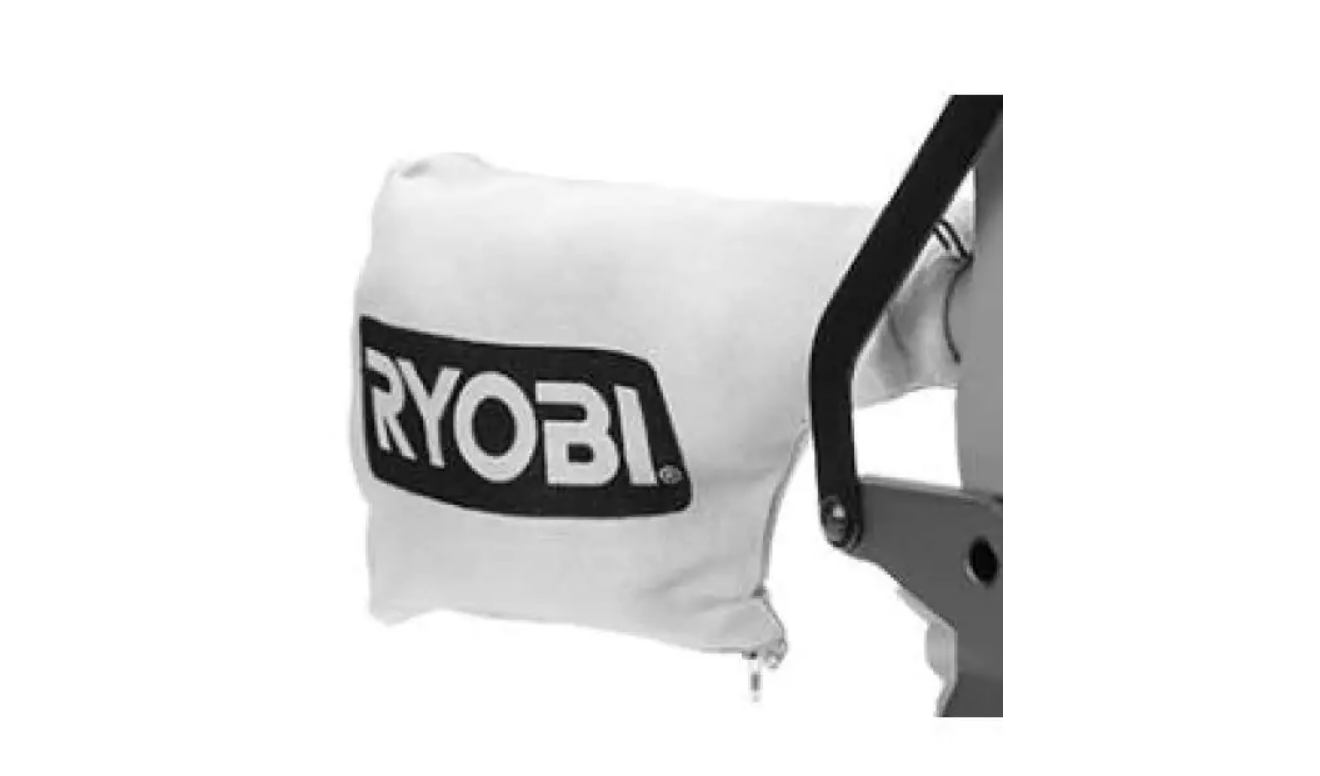

Cuts Through	Wood	Dust Collection Method	Bag
Included Accessories	Allen Key/Wrench, Blade(s)	Maximum Bevel Cut Angle – Left (degrees)	45 °
Maximum Bevel Cut Angle – Right (degrees)	0 °	Maximum Crosscut Capacity at 45 Degrees (L/R)	2 in x 4 in
Maximum Crosscut Capacity at 90 Degrees	2 in x 6 in	Maximum Cutting Thickness (in.)	3.5 in
Maximum Miter Cut Angle – Left (degrees)	45 °	Maximum Miter Cut Angle – Right (degrees)	45 °
Maximum Speed (RPM)	5500 RPM	Miter Saw Type	Compound
Portability	Stationary	Power Tool Features	Electric Brake, Positive Stops
Product Weight (lb.)	28.27 lb	Tools Product Type	Power Tool

Warranty / Certifications

Certifications and Listings	UL Listed	Manufacturer Warranty	3-Year Manufacturer Warranty
