RYOBI Miter Saw TSS702 7-1/4 in. Compound Sliding

RYOBI Miter Saw TSS702 7-1/4 in. Compound Sliding

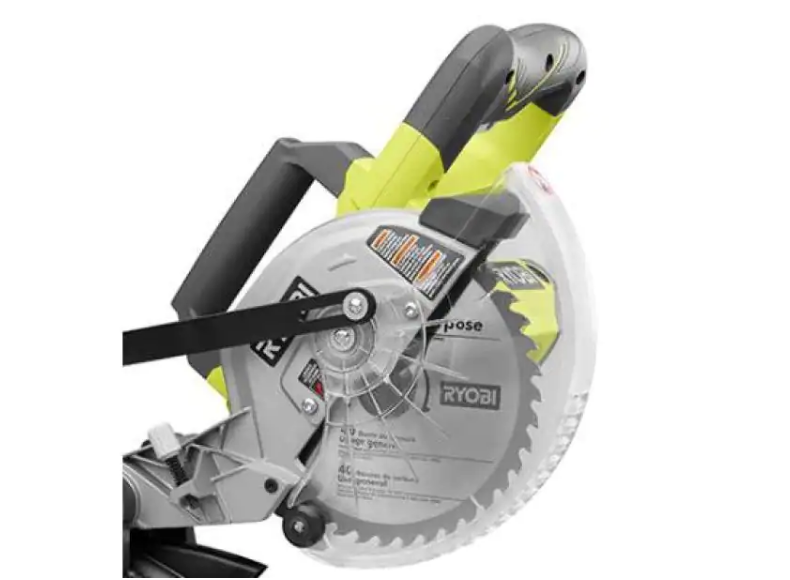

RYOBI introduces the 7-1/4 in. Sliding Miter Saw. This saw is compact and lightweight, making it portable and perfect for DIY jobs around the house. The heavy duty 10 Amp motor delivers up to 5,350 RPM for the power to make difficult cuts or a variety of small cuts in wood. It features a 1-1/4 in. dust port to help keep your work area clean. The 40-tooth Carbide-Tipped blade provides improved performance for fast, clean cuts and cross cut up to a nominal 2 in. x 10 in. Backed by the RYOBI 3-Year Manufacturer’s Warranty, the 7-1/4 in. Sliding Miter Saw includes a 40-tooth Carbide Tipped Blade, a blade wrench, a dust bag, a work clamp, two carrying handles, and an operator’s manual.

• Cross cut up to a nominal 2 in. x 10 in.
• Adjustable bevel from 0 degree – 45 degree left

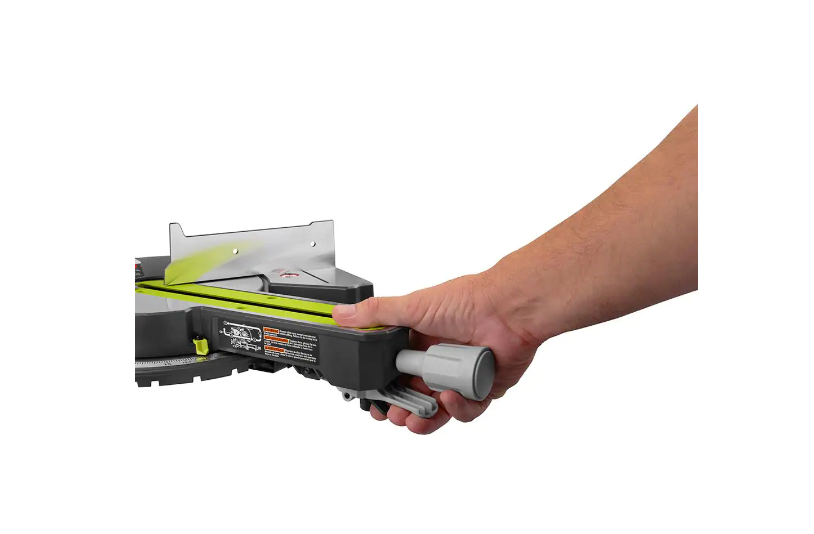

• Miter detent override for bypassing miter detent index points with one simple motion
• Miter stops located at the most common crown molding angles 0 degree , 15 degree , 22.5 degree , 31.6 degree , and 45 degree left and right for quick cut settings
• Machined cast in miter scale for accurate table alignment
• Miters 47 degree left and right to accommodate a variety of cuts

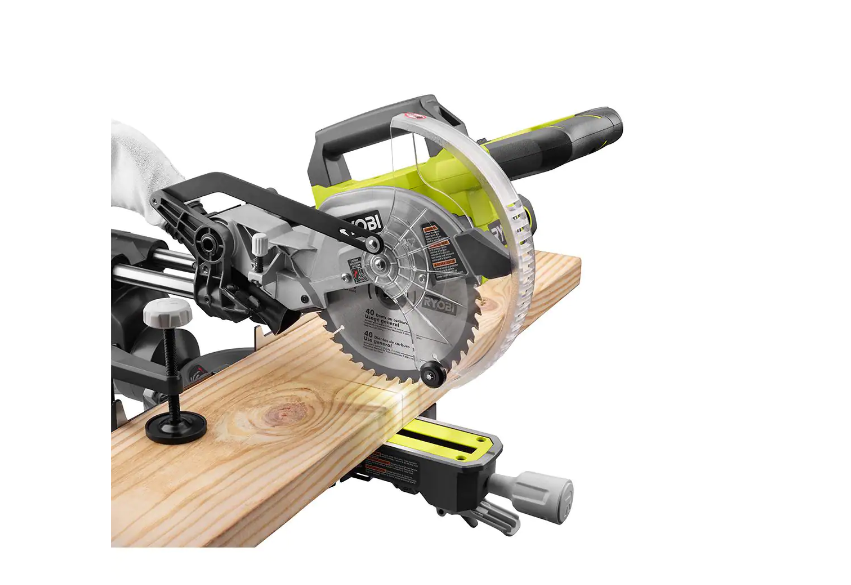

• LED Cutline Indicator and work-light projects cutline and illuminates material to improve accuracy of the cut and visibility
• Horizontal “D” handle for improved comfort
• Spindle lock for easy single wrench blade changes
• Electric blade brake stops the blade in seconds
• 3-year manufacturer’s warranty

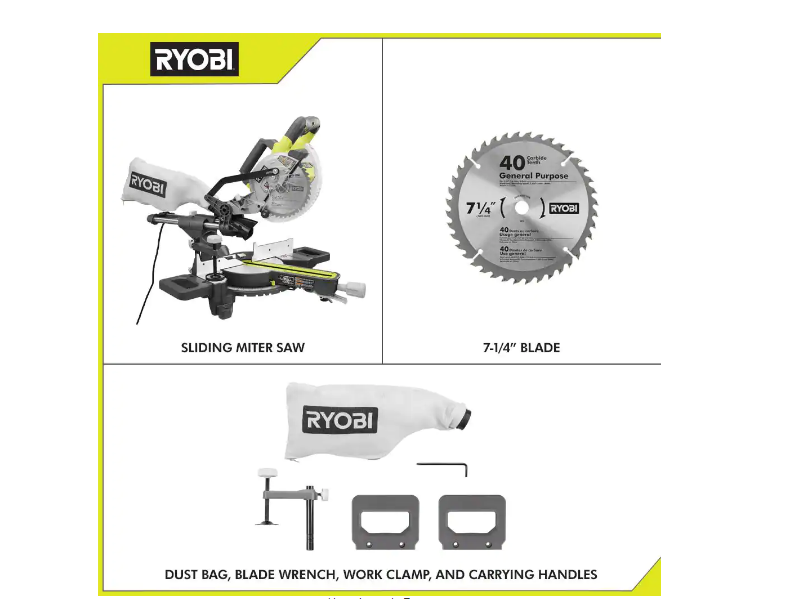

• Includes: (1) TSS702 Sliding Miter Saw with 40-tooth Carbide-Tipped Blade, Blade Wrench, Dust Bag, Work Clamp, (2) Carrying Handles, and operator’s manual

Dimensions

Arbor Size (in.)	5/8 in	Blade Diameter (in.)	7-1/4 in
Product Depth (in.)	29.130 in	Product Height (in.)	21.5 in
Product Width (in.)	16 in	Work Table Height From Floor (in.)	3.5 in
Work Table Length (in.)	11 in	Work Table Width (in.)	16 in

Details

Amperage (A)	10 A	Bench & Stationary Tool Type	Slide Miter Saw
Bevel Type	Single Bevel	Color Family	Green
Condition	New	Construction Material	Acrylonitrile Butadiene Styrene (ABS)
Cord Length (ft.)	6 ft	Cordless/Corded	Corded

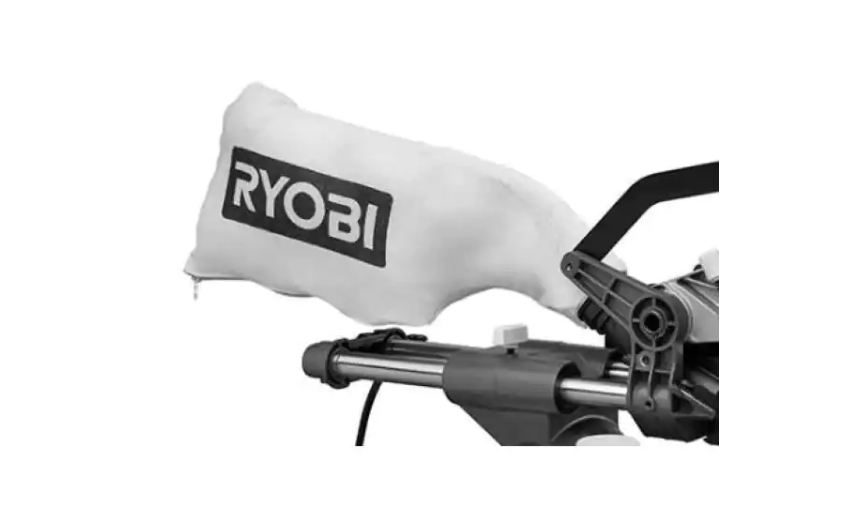

Cuts Through	Wood	Dust Collection Method	1.5 in. Dust Port
Included Accessories	Allen Key/Wrench, Blade(s), Clamp	Maximum Bevel Cut Angle – Left (degrees)	45 °
Maximum Bevel Cut Angle – Right (degrees)	0 °	Maximum Crosscut Capacity at 45 Degrees (L/R)	2 in x 6 in
Maximum Crosscut Capacity at 90 Degrees	2 in x 10 in	Maximum Cutting Thickness (in.)	3.375 in
Maximum Miter Cut Angle – Left (degrees)	47 °	Maximum Miter Cut Angle – Right (degrees)	47 °
Maximum Speed (RPM)	5350 RPM	Miter Saw Type	Sliding Compound
Portability	Bench	Power Tool Features	Positive Stops
Product Weight (lb.)	25 lb	Tools Product Type	Power Tool

Warranty / Certifications

Manufacturer Warranty	3 year warranty
