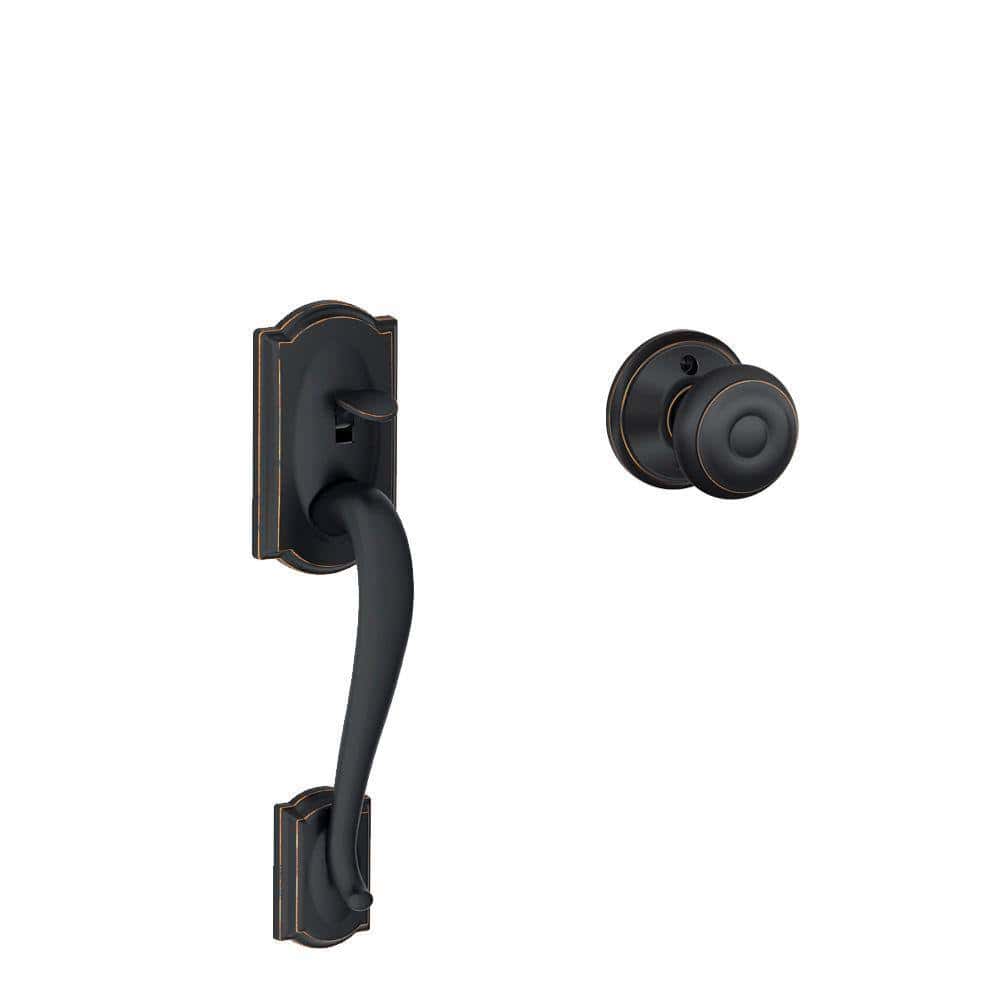

Schlage FE285LW V CAM 716 GEO CAM Camelot Aged Bronze Entry Door Handleset with Georgian Door Knob

Schlage FE285LW V CAM 716 GEO CAM Camelot Aged Bronze Entry Door Handleset with Georgian Door Knob

The Schlage Camelot Aged Bronze Entry Door Handle set is perfect for use on exterior doors where extra security is needed. The Georgian knob design features classically inspired details for timeless appeal and the handle’s Camelot trim features scalloped architectural details make any room charming and approachable. Its Aged Bronze finish features warm, copper tones that break through its darker, aged exterior. The knob unlocks when the door is opened from the inside, allowing you to leave quickly and conveniently and re-enter easily. Plus, it was designed and tested with strength and durability in mind.

• Lower portion of handle set features an exterior grip and interior door lock, pair with a keypad deadbolt or mechanical deadbolt to create a grand entrance for your home
• Patented adjustable through-bolt allows easy installation, retrofits existing doors
• Universal handing works on right handed and left handed doors
• Limited lifetime mechanical and finish warranty
• UNIVERSAL HANDING: Works with right and left handed doors.
• TRUSTED WARRANTY: Schlage locks are backed by a limited lifetime mechanical and finish warranty; see Schlage warranty for full details
• Designed for standard door prep (fits existing pre-drilled holes)



Dimensions

Assembled Depth (in.)	2.9 in	Assembled Height (in.)	12.9 in
Assembled Width (in.)	3 in	Backset Size (in.)	Adjustable
Handle grip length (in.)	12.9	Inside plate length (in.)	12.9
Inside plate width (in.)	3.0	Knob Diameter (in.)	2.3 in
Knob/lever bore hole diameter (in.)	2.1	Knob/lever cross bore diameter (in.)	1.0
Knob/lever housing height (in.)	2.8	Knob/lever housing width (in.)	2.8
Knob/lever strike height (in.)	2.3	Knob/lever strike width (in.)	0.9
Knob/lever throw length (in.)	0.4	Maximum Door Thickness (in.)	1.8
Minimum Door Thickness (in.)	1.4	Outside handle and key plate length (in.)	5.3
Outside handle and key plate width (in.)	3.0	Outside handle plate on-center measurement (in.)	3.0
Projection (in.)	3.0

Details

Application Type	Entry	Commercial/Residential	Residential
Door Handing	Universal	Door Lock Style	Antique
Door Locks & Knobs Product Type	Unkeyed Handlesets	Electronic/Mechanical	Mechanical
Features	Adjustable Backset, Easy Installation, Rekeyable	Finish	Aged Bronze
Handleset Product Type	1 Piece Front & Back	Hardware Color Family	Bronze

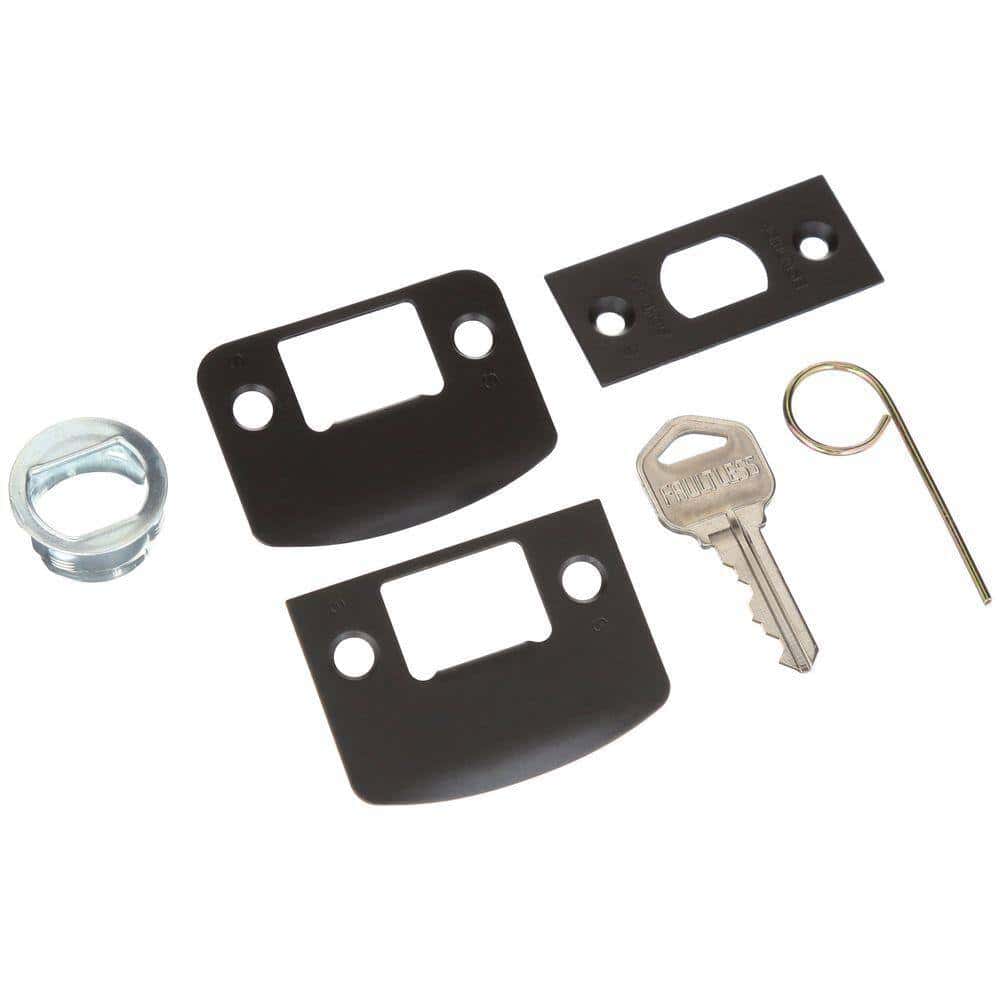

Hardware Finish Family	Bronze	Included	Drilling Template, Hardware, Installation Instructions, Self Guiding Screws
Keying Type	Keyed Alike	Knob style	Full ball
Knob/lever strike	Round corner	Lock Type	Unkeyed
Material	Solid Brass	Product Weight (lb.)	5.8
		Security/ANSI Grade	ANSI Grade 1 (Best)

Warranty / Certifications

Certifications and Listings	No Certifications or Listings	Manufacturer Warranty	Lifeitme Limited Mechanical & Finish Warranty

Manuals and Support

• Warranty
• Installation Guide
• Instructions / Assembly
