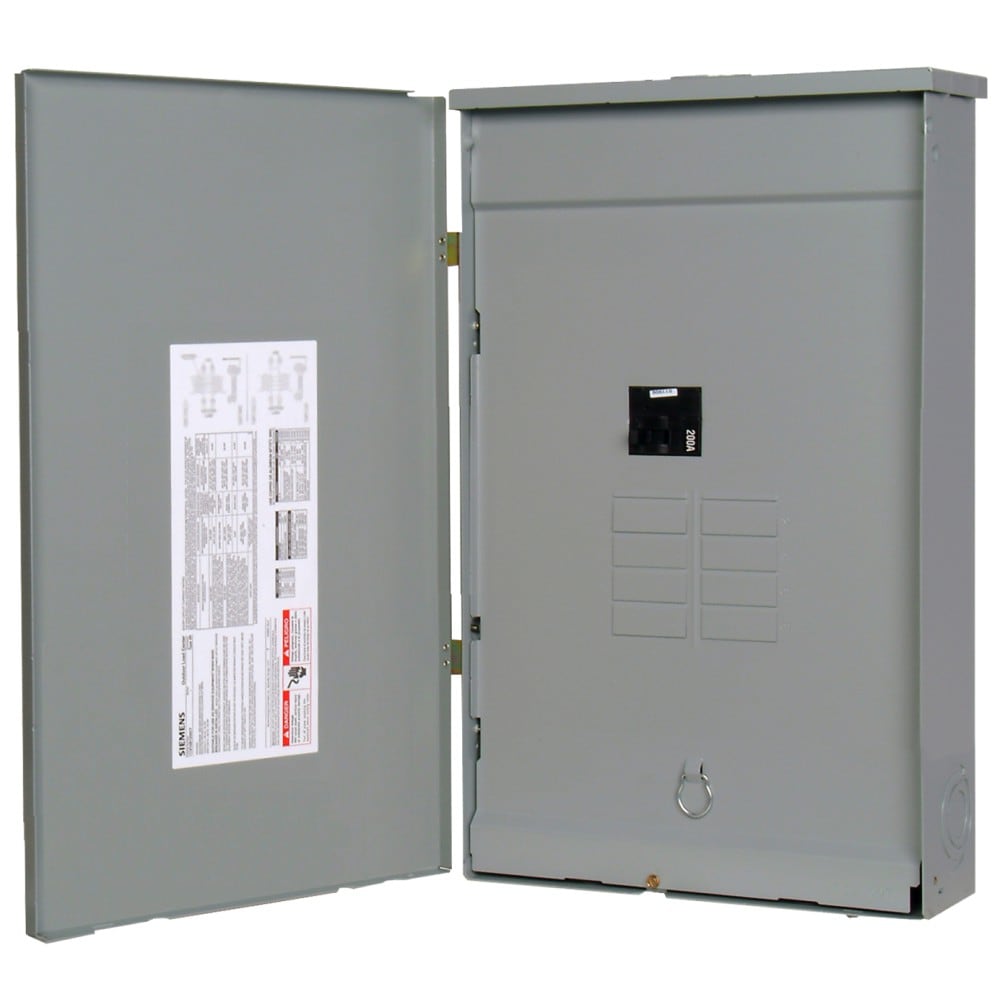

Siemens PN 200 -Amp 8 -Spaces 16 -Circuit Outdoor Convertible main breaker panel Plug-On Neutral Load Center
Original price was: $199.00.$173.13Current price is: $173.13.
- Manufacturer Color/Finish: Gray
- Series Name: PN
- Type: Convertible main breaker panel
- Depth (Inches): 4.88
- Height (Inches): 23
- Width (Inches): 14.25
Free shipping on $25+ orders
Estimated Delivery: 5-10 days -
Pickup not available
Siemens PN 200 -Amp 8 -Spaces 16 -Circuit Outdoor Convertible main breaker panel Plug-On Neutral Load Center
Siemens introduces PN series load centers – a new high quality and feature-rich line of load center products to meet applications for virtually every need. The PN series load center provides maximum flexibility in combination with labor saving features to aid the contractor while installing the product. PN load centers accept the plug-on neutral breakers, patented insta-wire neutral/ground system, convertibility, copper bussing and mounting tabs on the trim – these features were specifically engineered to decrease installation time and increase flexibility.
Highlights
- The PN series load center includes two factory installed ground bar
- Plug-on neutral, for quick and simple breaker installation
- Copper bus
- Spacious with over 4 inches of wire bending space
- Secure sturdy hook-rail provides a reliable connection
- Single phase load center
- 100% Neutral and Ground positions based on number of circuits
- NEMA Type 3R outdoor enclosure
- UL Listed
Specifications
| General | |||
|---|---|---|---|
| Manufacturer Color/Finish | Gray | Type | Convertible main breaker panel |
| Series Name | PN | ||

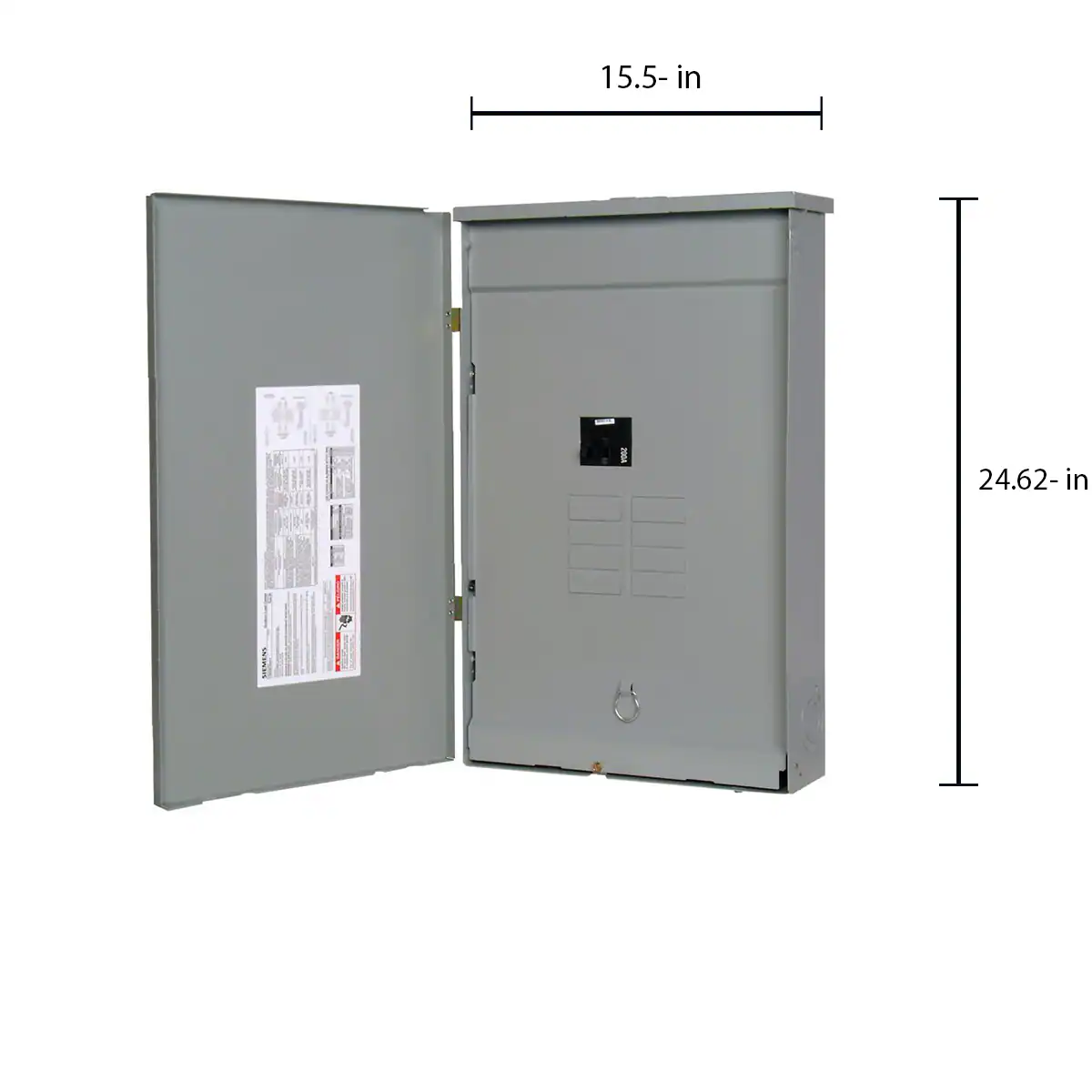

| Dimensions | |||
|---|---|---|---|
| Depth (Inches) | 4.88 | Width (Inches) | 14.25 |
| Height (Inches) | 23 | ||
| Features | |||
|---|---|---|---|
| Amperage | 200 | Orientation | Over/Under |
| Buss Bar Construction | Copper | Paintable | Yes |
| Circuits | 16 | Phase Type | Single phase (120/240) |
| Cover Included | Yes | Plug-On Neutral | Yes |
| Feed-Through Lugs | Yes | Usage | Service entrance |
| Ground Bar Installed | Yes | Use Location | Outdoor |
| Mounting Type | Combination | Value Pack | No |
| Number of Spaces | 8 | Voltage | 120 |
| Compatibility | |||
|---|---|---|---|
| Brand/Model Compatibility | Siemens | ||
| Certifications | |||
|---|---|---|---|
| CA Residents: Prop 65 Warning(s) | No | Safety Listing | UL safety listing |
| Miscellaneous | |||
|---|---|---|---|
| UNSPSC | 39121100 | ||
| Brand |
|---|
