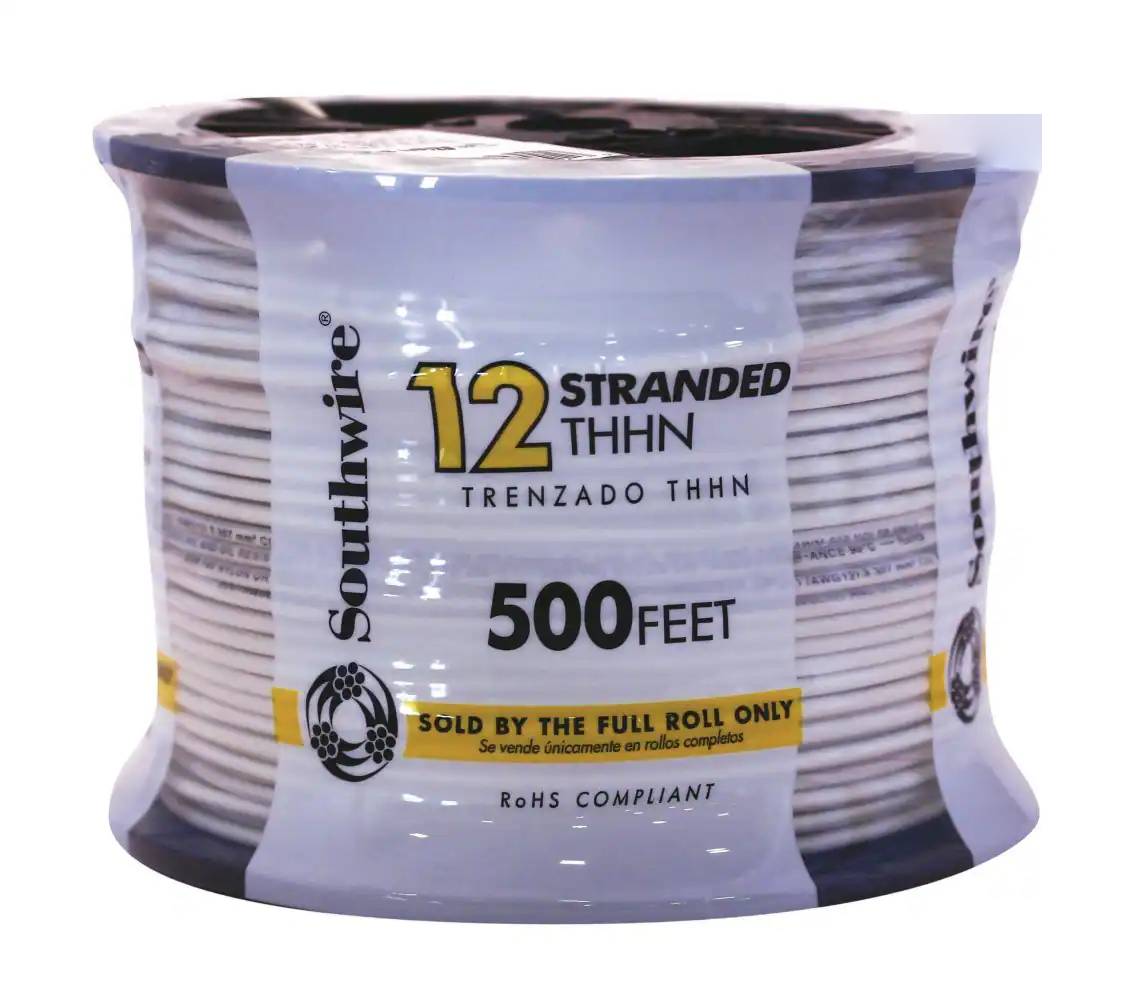

Southwire 500-Feet 12 -AWG White Stranded Copper THHN wire ( By-the-roll )
Original price was: $117.00.$101.79Current price is: $101.79.
- Jacket Color: White
- Type: THHN wire
- Cable Length (Feet): 500
Out of stock
Southwire 500-Feet 12 -AWG White Stranded Copper THHN wire ( By-the-roll )
Southwire’s THHN and THWN is a multi-purpose building wire used in conduit and cable trays for service, feeders and branch circuits in commercial and industrial applications. It is also used as a conductor in NM-B, UF-B, SER, SEU and MC. Southwire’s THHN is rated for 600-Volt and has a heat capacity of up to 90°C.
Highlights
- Southwire’s THHN conductors are primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications
- Conductor is suitable for use in dry locations at temperatures not to exceed 90°C
- Copper conductors are annealed (soft) copper, compressed strand, insulated with a tough heat and moisture resistant polyvinyl chloride (PVC)
Specifications
| General | |||
|---|---|---|---|
| Jacket Color | White | Type | THHN wire |
| Sub-Brand | N/A | ||
| Dimensions | |||
|---|---|---|---|
| Cable Length (Feet) | 500 | ||
| Features | |||
|---|---|---|---|
| Commercial/Residential | Commercial/Residential | Number of Strands | 19 |
| Conductor Material | Copper | RoHs Compliant | Yes |
| Direct Burial | No | Shielded | No |
| Fire Resistant | No | UV Resistant | No |
| Insulation Material | PVC (polyvinyl chloride) | Voltage Rating | 600 |
| Jacket Material | PVC (polyvinyl chloride) | Wire Cut Type | By-the-roll |
| Maximum Amperage | 20 | Wire Gauge | 12 |
| Moisture Resistant | Yes | Wire Type | Stranded |
| Compatibility | |||
|---|---|---|---|
| Conduit Compatible | Yes | ||
| Certifications | |||
|---|---|---|---|
| CA Residents: Prop 65 Warning(s) | No | Safety Listing | UL safety listing |
| Miscellaneous | |||
|---|---|---|---|
| UNSPSC | 60104900 | ||
| Brand |
|---|
