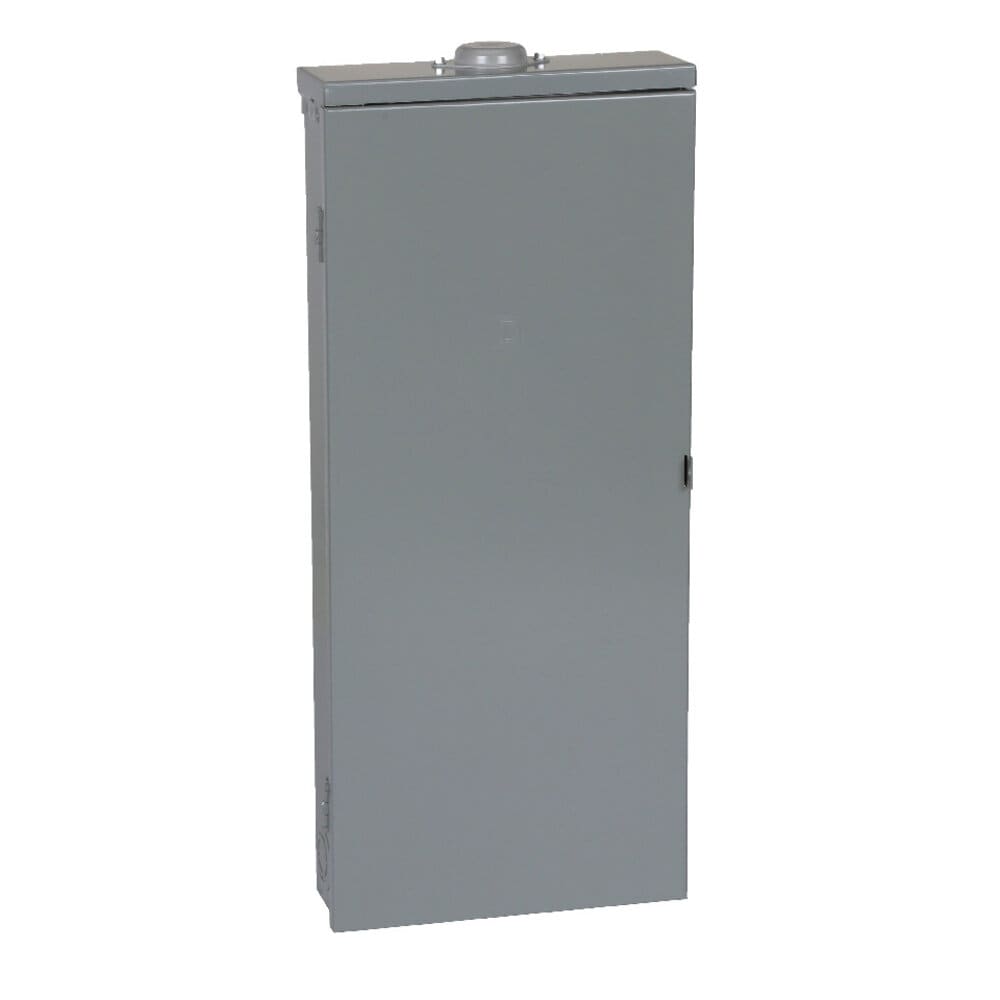

Square D Homeline 200 -Amp 30 -Spaces 60 -Circuit Outdoor Main breaker Plug-On Neutral Load Center (Value Pack)
Original price was: $235.00.$204.45Current price is: $204.45.
- Manufacturer Color/Finish: Gray
- Series Name: Homeline
- Type: Main breaker
- Depth (Inches): 4.52
- Height (Inches): 33.78
- Width (Inches): 14.75
Free shipping on $25+ orders
Estimated Delivery: 5-10 days -
Pickup not available
Square D Homeline 200 -Amp 30 -Spaces 60 -Circuit Outdoor Main breaker Plug-On Neutral Load Center (Value Pack)
- Includes a fully distributed neutral bar, allowing for the installation of Homeline Plug-on Neutral combination arc fault breakers on any space
- Each pole space accepts full-size, tandem or quad breakers
- Ground and neutral bars accept up to (3) #10-14 equipment grounds
- Accommodates plug-on secondary surge arrestor (sold separately)
- Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
- Rated 120/240 VAC and 22,000 AIR short circuit current rating
Specifications
| General | |||
|---|---|---|---|
| Manufacturer Color/Finish | Gray | Type | Main breaker |
| Series Name | Homeline | ||

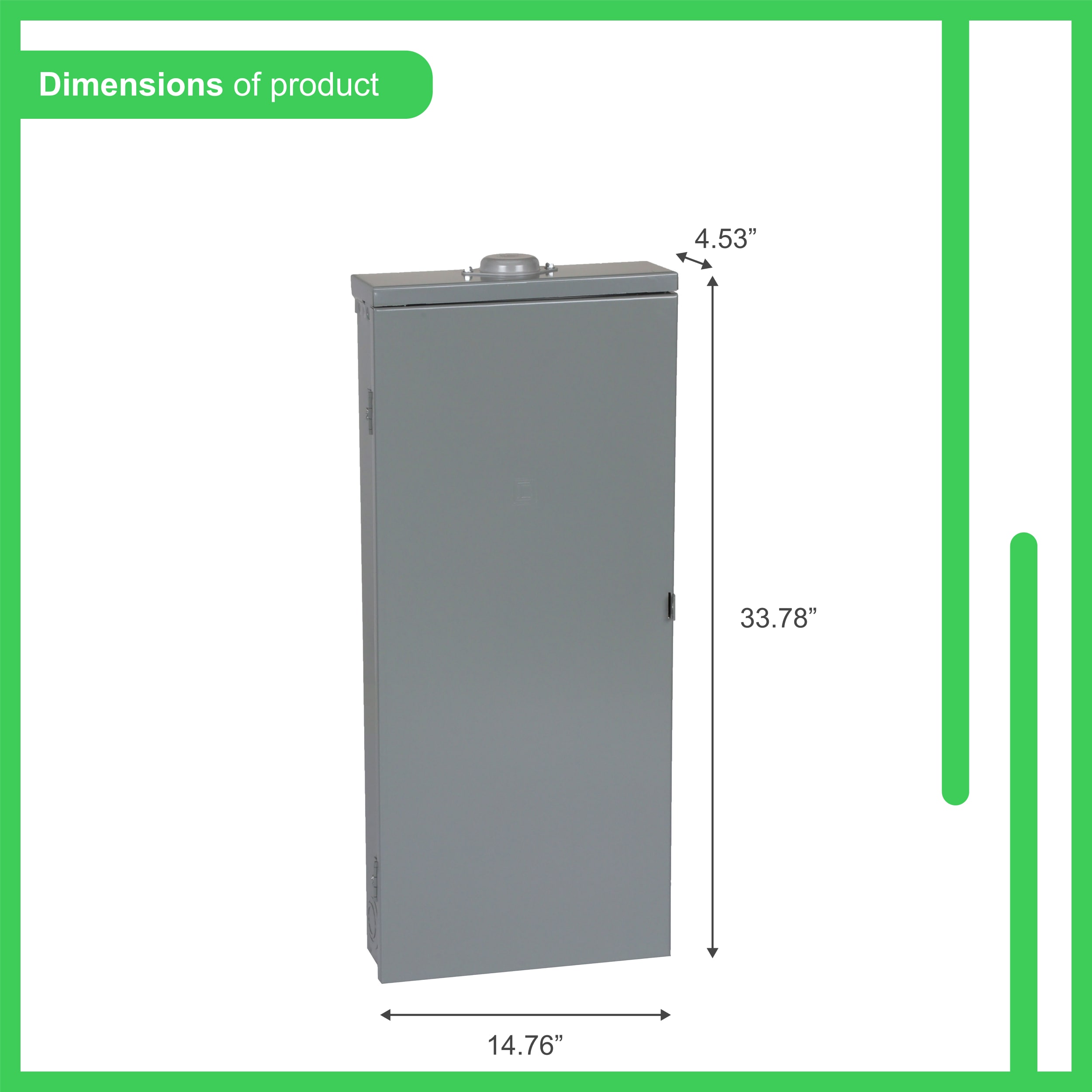

| Dimensions | |||
|---|---|---|---|
| Depth (Inches) | 4.52 | Width (Inches) | 14.75 |
| Height (Inches) | 33.78 | ||
| Features | |||
|---|---|---|---|
| Amperage | 200 | Orientation | Over/Under |
| Buss Bar Construction | Aluminum | Paintable | No |
| Circuits | 60 | Phase Type | Single phase (120/240) |
| Cover Included | Yes | Plug-On Neutral | Yes |
| Feed-Through Lugs | No | Usage | Service entrance |
| Ground Bar Installed | No | Use Location | Outdoor |
| Mounting Type | Surface | Value Pack | Yes |

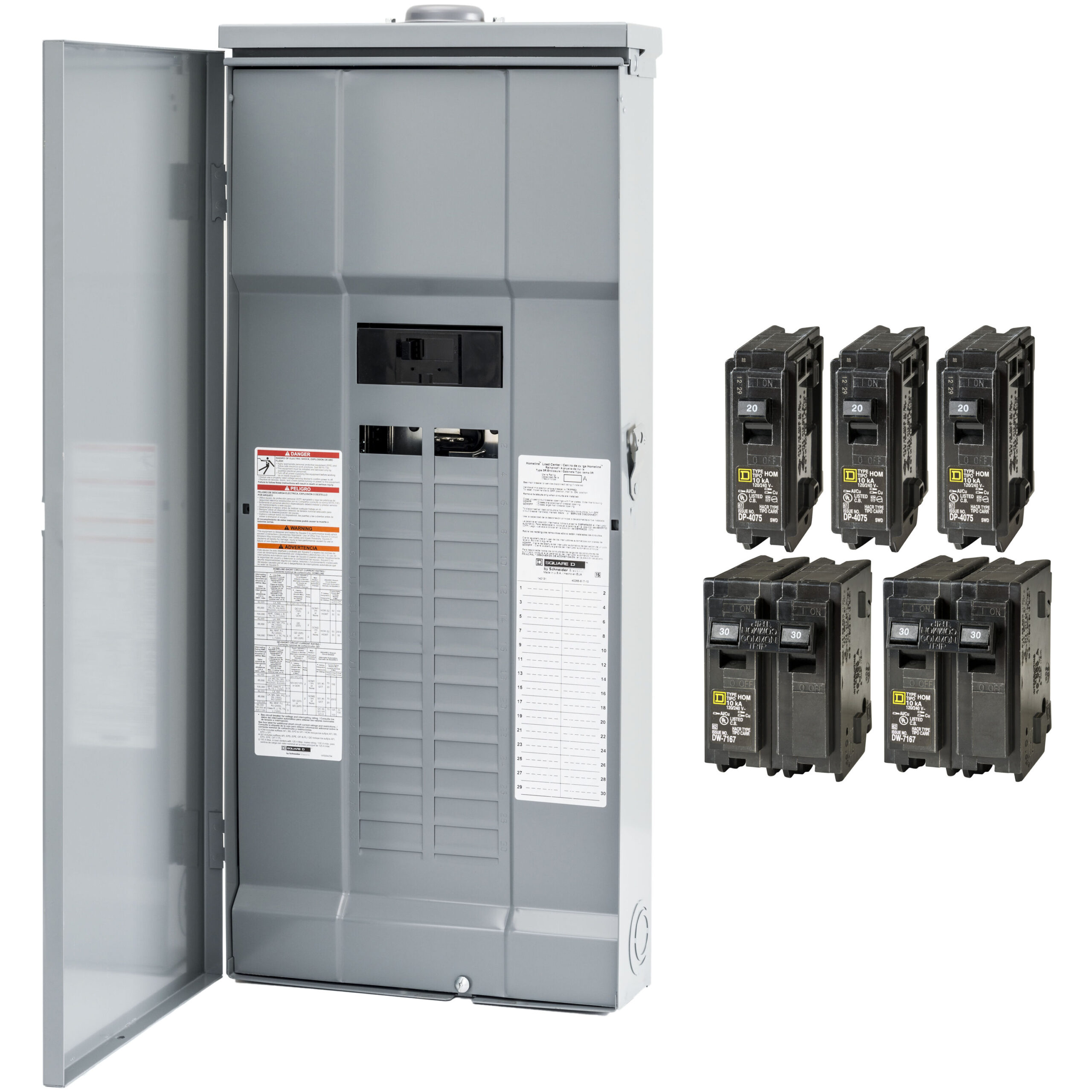

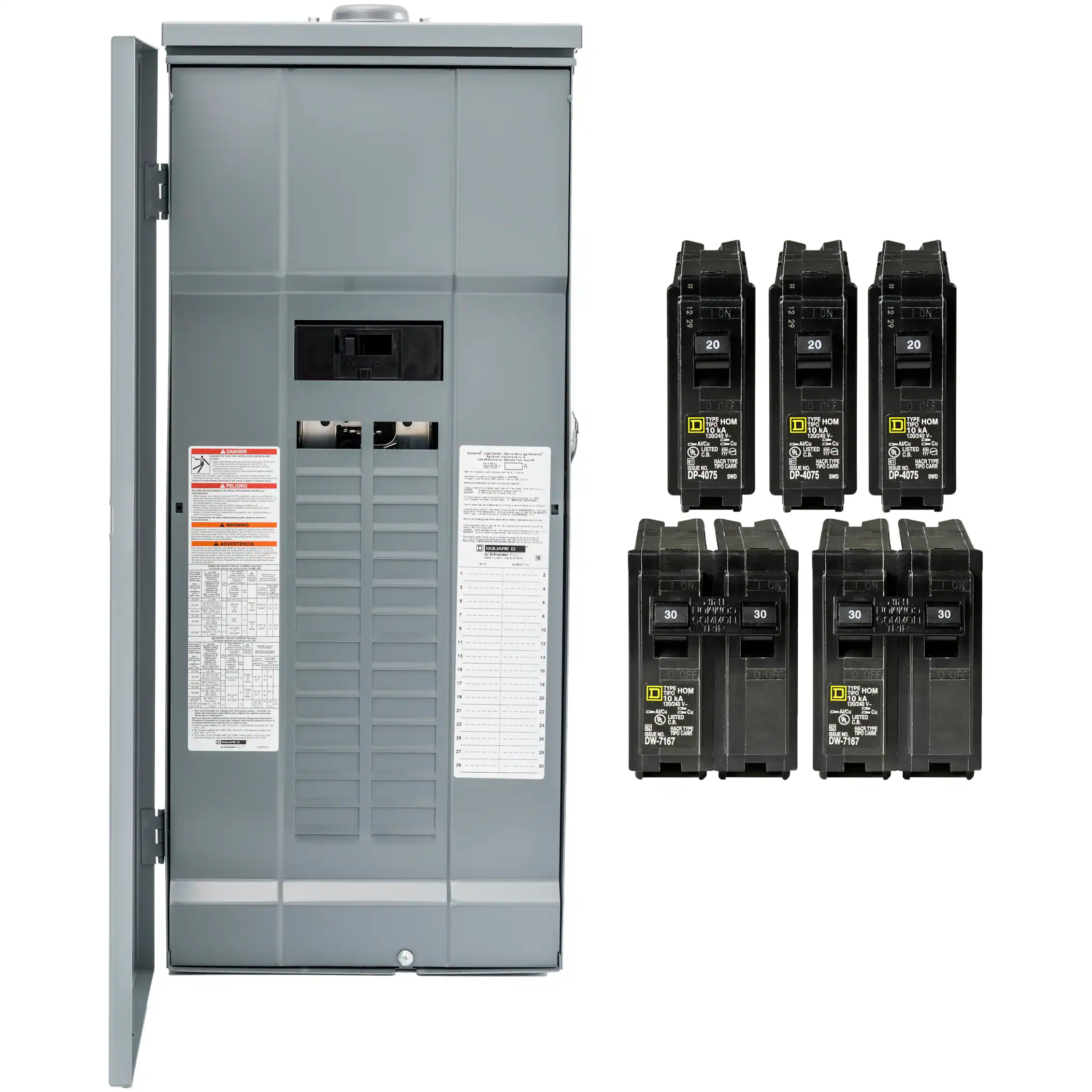

| Number of Spaces | 30 | Value Pack Contents | Includes 3 HOM120 Homeline 20 Amp single-pole circuit breakers, 2 HOM230 Homeline 30 Amp double-pole circuit breakers and a rainproof outdoor cover |
| Compatibility | |||
|---|---|---|---|
| Brand/Model Compatibility | Square D Homeline Brand Only | ||
| Certifications | |||
|---|---|---|---|
| CA Residents: Prop 65 Warning(s) | Safety Listing | UL safety listing | |
| Miscellaneous | |||
|---|---|---|---|
| UNSPSC | 39121100 | ||
| Brand |
|---|
