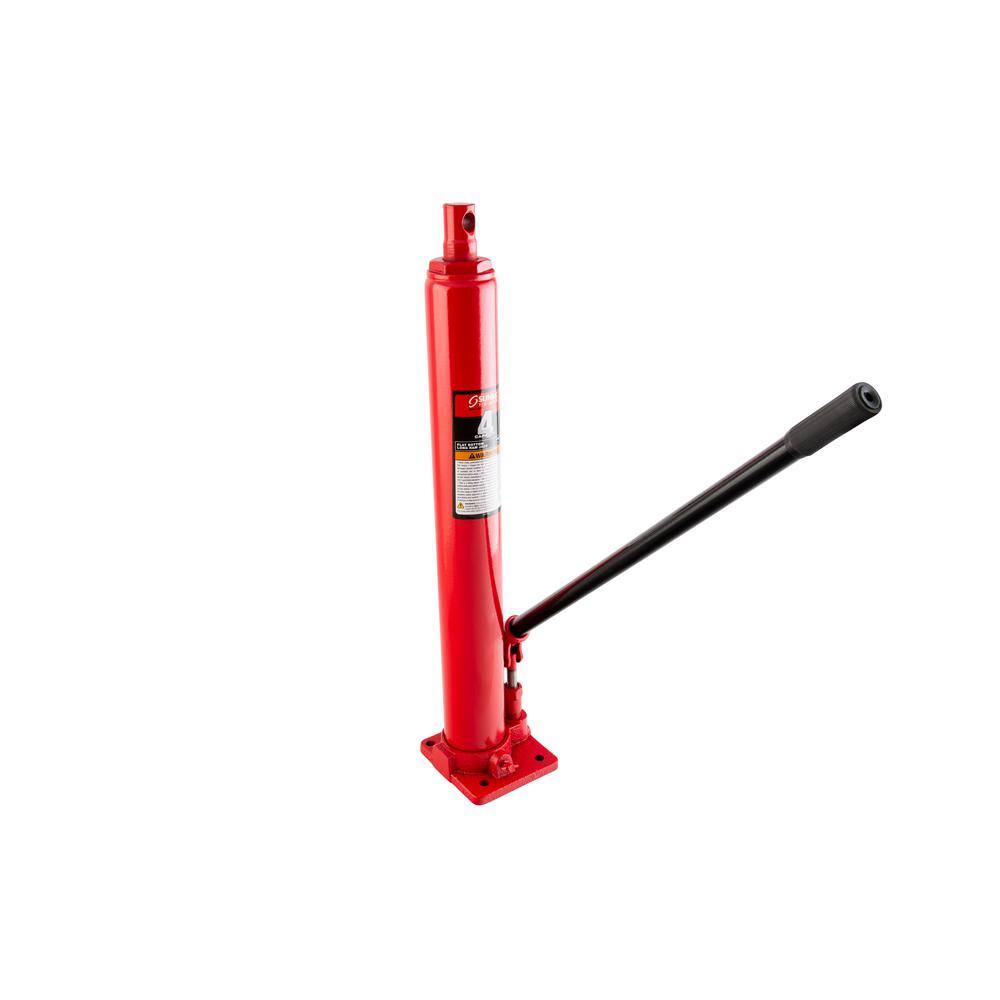

SUNEX TOOLS 5041B 4-Ton Long Ram
Leave the heavy work to the Sunex Tools complete line of Lifting Equipment. Jacks, hoists, stands you name it. With low profiles and quick-lift technology, these jacks provide you with solutions that fit almost any application.
- Used for farm applications but primarily for IEM applications in manufacturing or engine cranes and handling equipment requiring long hydraulic stroke

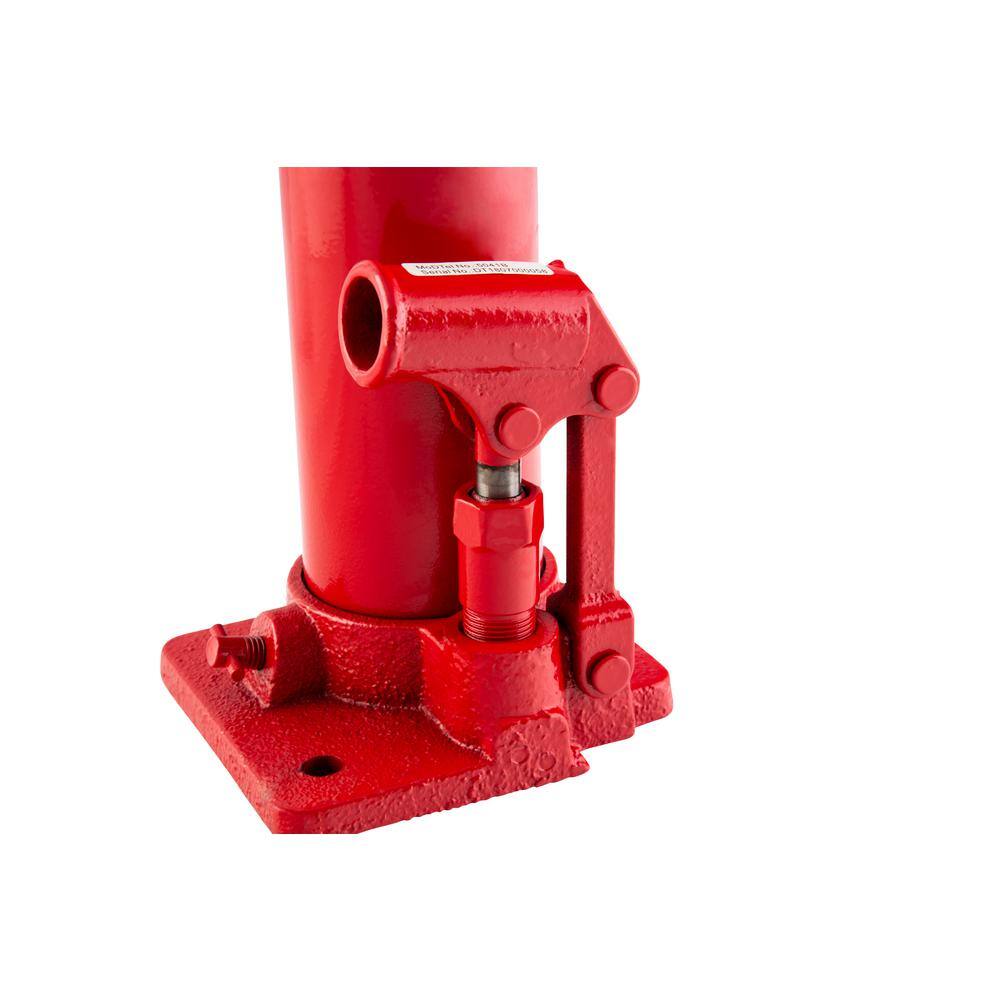

- RapidRise hydraulic system and pivoting base raises the ram twice as fast as a standard jack

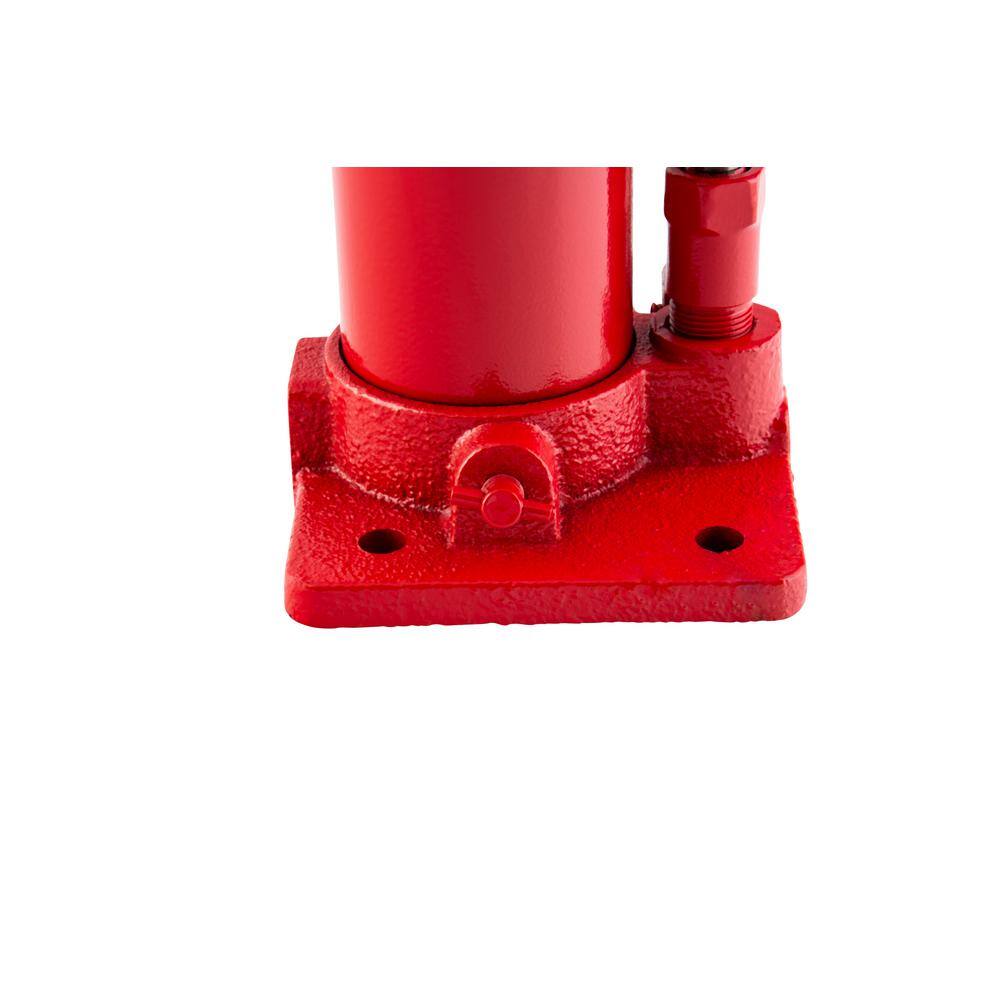

- Ductile iron base for added strength
- Electrostatic paint for rust prevention

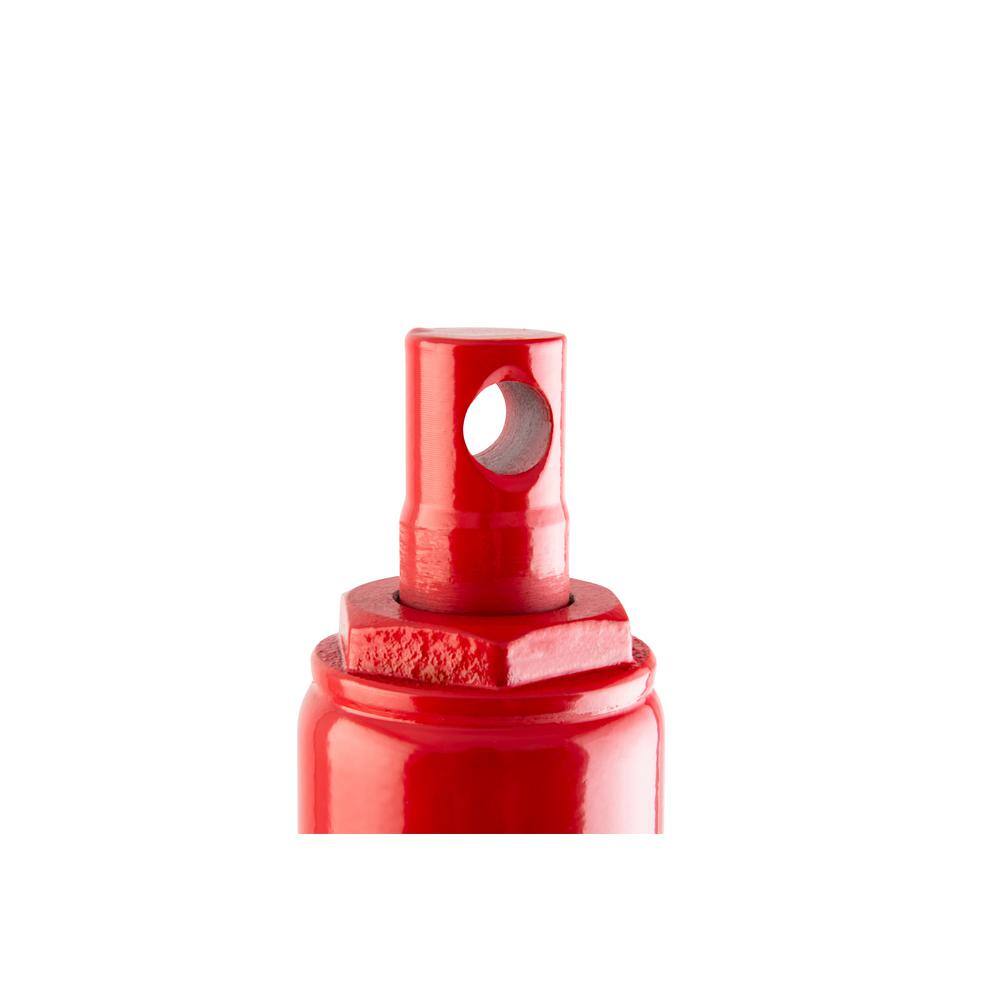

- Larger ram diameters to withstand side loads
- Hydraulic bypass system prevents over extension of ram
- Backed by a 1-year warranty
Dimensions
Collapsed height (in.) | 24.4 | Handle Length (in.) | 0.00 |
---|---|---|---|
Product Depth (in.) | 25.90 in | Product Height (in.) | 6.75 in |
Product Width (in.) | 5.50 in |
Details
Features | No Additional Features | General Part Type | Portable Jack |
---|---|---|---|
Ideally Used For | General | Included | Handle, Hardware |
Material | Steel | Maximum Lift Height (in.) | 44 |
Mechanism type | Mechanical | Minimum Lift Height (in.) | 44 |
Product Weight (lb.) | 24.60 lb | ||
Stroke (in.) | 0 | Weight Capacity (lb.) | 8000 |
Warranty / Certifications
Manufacturer Warranty | 1 Year |
---|
