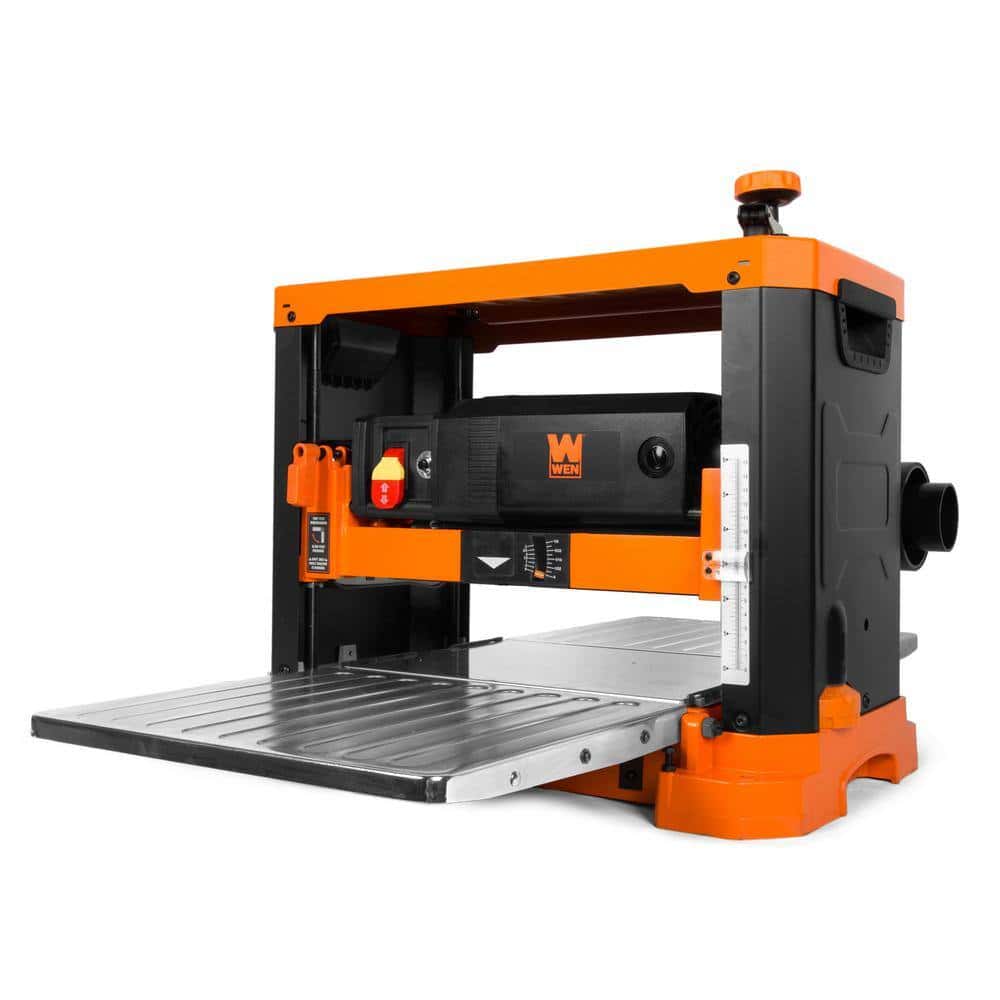

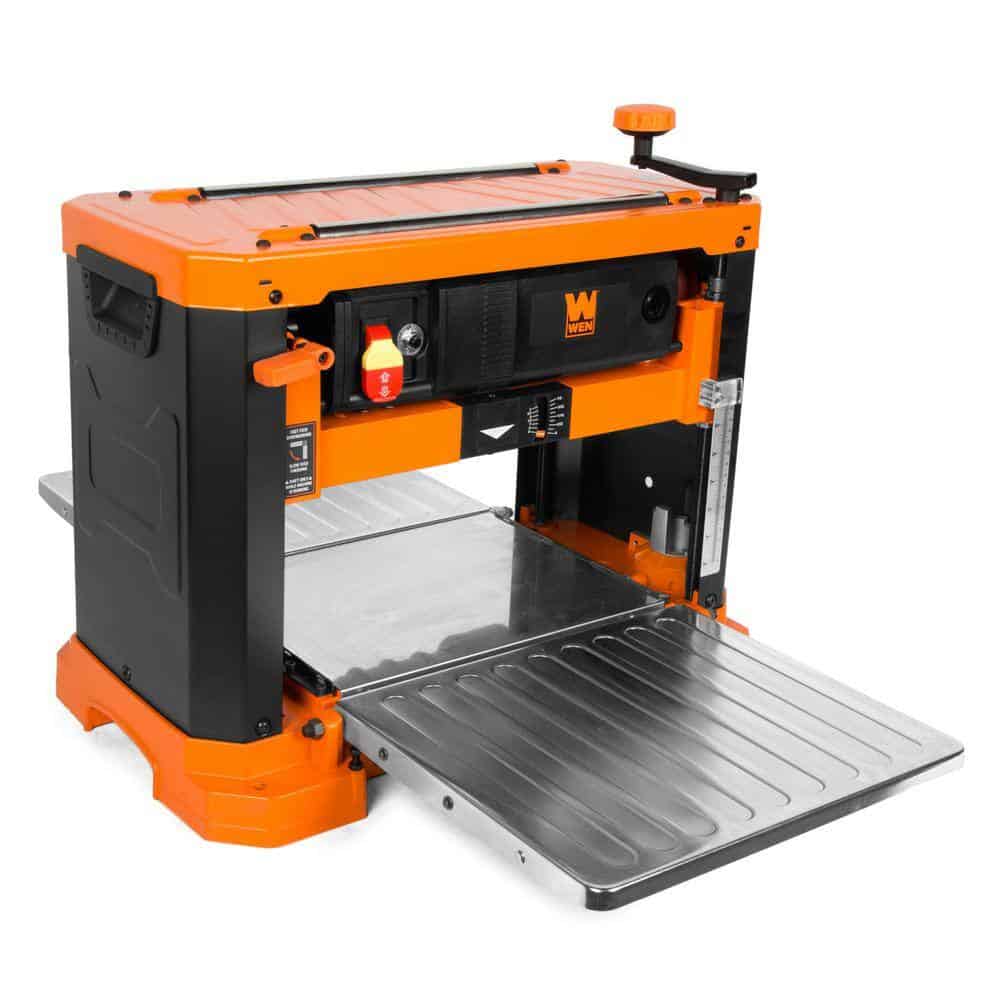

WEN PL1337 Thickness Planer, Two Speed, 13-Inch Spiral Blade, Benchtop

WEN PL1337 Thickness Planer, Two Speed, 13-Inch Spiral Blade, Benchtop

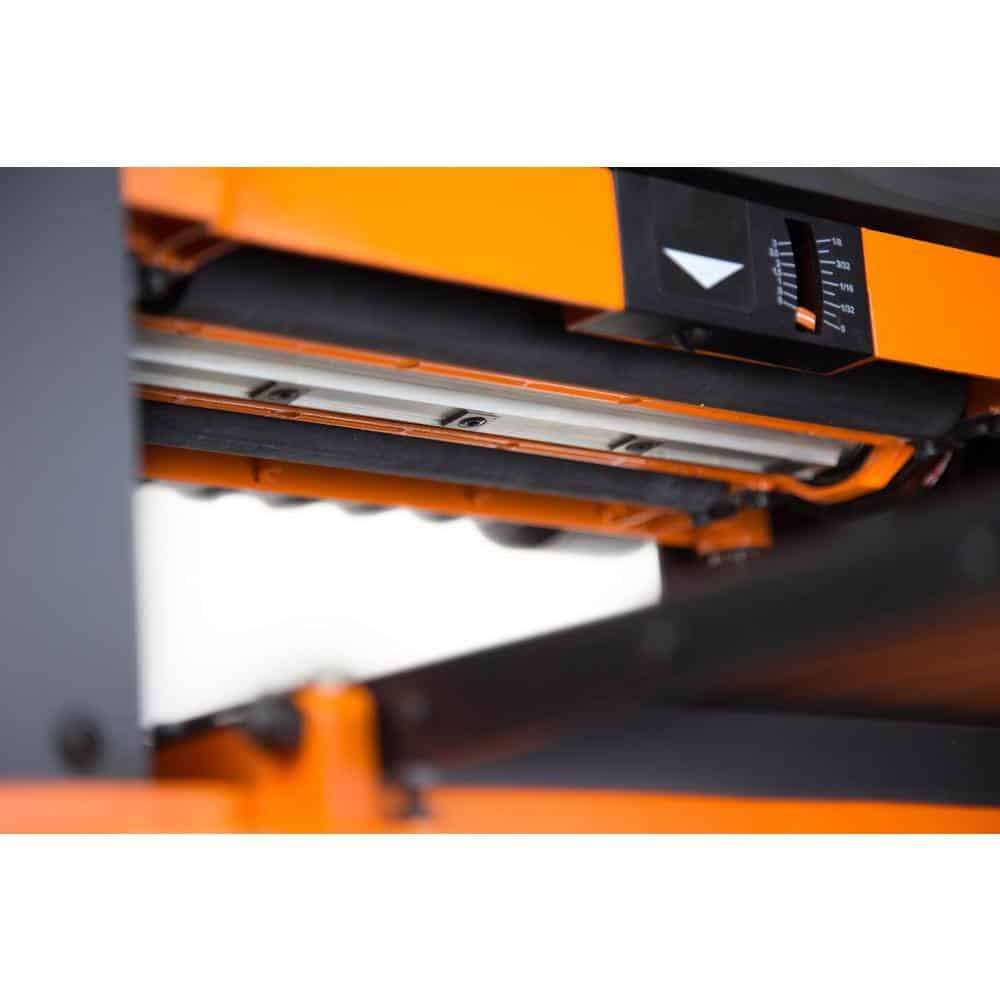

Our spiral cutterhead utilizes 26 staggered HSS blades to provide a perfect finish to hard and soft woods alike. The powerful 15-amp motor rotates the cutterhead at up to 10,000 RPM. Two-speed operation gives maximum control; choose the 26-feet-per-minute feed rate for quick dimensioning and 833 cuts per inch, or switch to the slower 16-feet-per-minute 1354 CPI option for perfect finishes every time. Plane boards up to 13 inches wide and 6 inches thick with ease. The onboard planing gauge helps inform users about the amount of material being removed during each pass. Combine that with the heavy-duty base for a sturdy planer that does not walk or wobble during operation. The handy depth adjustment knob makes it easy to take off anywhere from 0 to 1/8 of an inch per pass. The adjustable dust port removes chips and sawdust from the workpiece and blasts them out of the way. The onboard depth stop allows users to achieve an exact workpiece thickness with maximum precision. This package also includes height-adjustable infeed and outfeed tables to limit snipe while providing extra support to your workpiece during planing. Easily mount the planer to a work surface or stand (such as the WEN MSA658T Planer Stand) using the predrilled base holes. Compatible with the WEN BP510H Replacement Spiral Blades. And because it’s a WEN product, this planer comes backed by a nationwide network of skilled service technicians, a helpful customer support line and a two-year warranty.

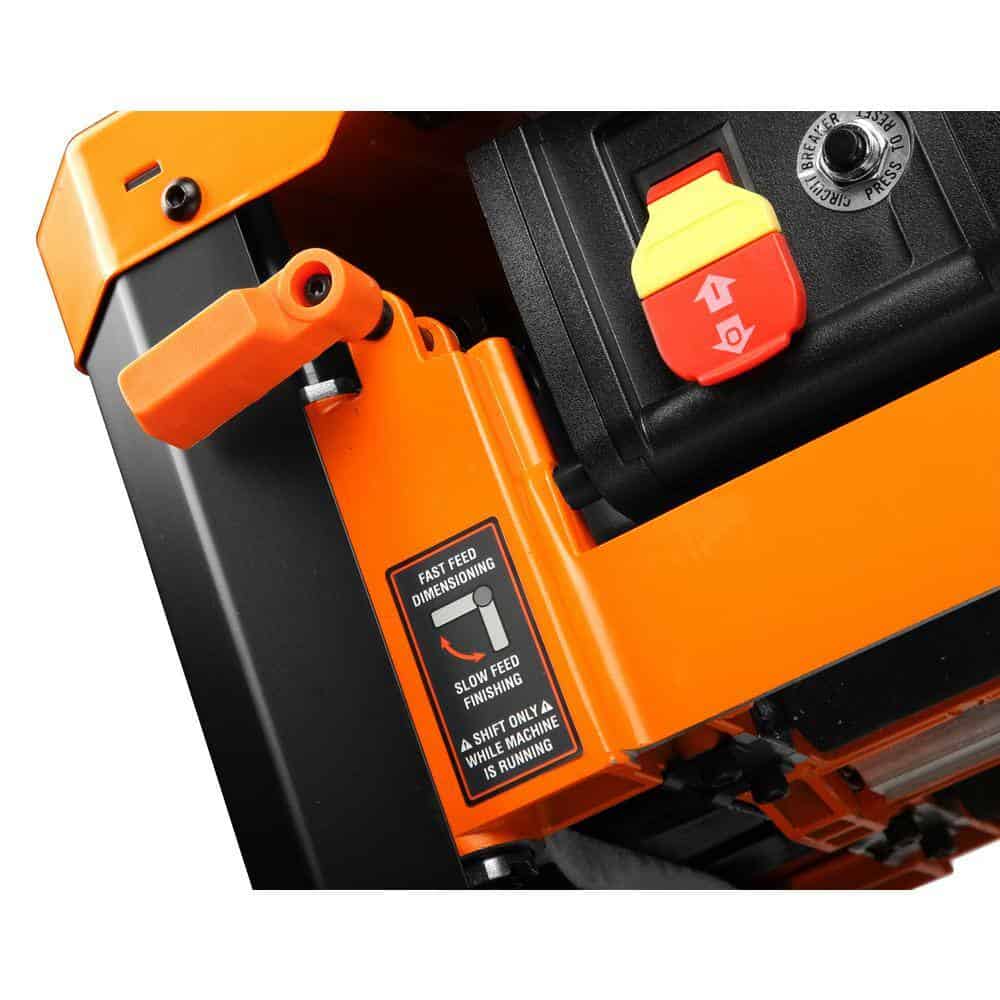

• Two-speed operation provides a 26 FPM feed rate for quick dimensioning and a 16 FPM feed rate for perfect finishes
• Spiral cutterhead utilizes 26 staggered and rotatable HSS blades for a clean, smooth finish
• Plane boards up to 6 inches thick and 13 inches wide
• 15-amp motor generates 10,000 cutterhead rotations per minute and up to 1354 cuts per inch
• California residentssee Prop 65 WARNINGS

Dimensions

Maximum cut depth (in.)	0.0625	Product Depth (in.)	21.46 in
Product Height (in.)	16.93 in	Product Width (in.)	34.25 in

Details

Amperage (A)	15 A	Bench & Stationary Tool Type	Planer
Color Family	Black	Color/Finish	Black
Condition	New	Cordless/Corded	Corded
Cutterhead Type	Spiral	Included	No Additional Items Included
Maximum Board Thickness (in.)	6 in	Maximum Board Width (In.)	12 in
Maximum Speed (RPM)	10000 RPM	Minimum cut depth (in.)	0.125
Number of Cutting Blades	26	Portability	Bench
Power Tool Features	No Additional Features	Product Weight (lb.)	68.78 lb
Voltage (V)	120V	Tools Product Type	Power Tool

Warranty / Certifications

Certifications and Listings	CSA Certified	Manufacturer Warranty	2-year limited
