Big Red TR3942 1/2-Ton Telescoping Transmission Floor Jack

Big Red TR3942 1/2-Ton Telescoping Transmission Floor Jack

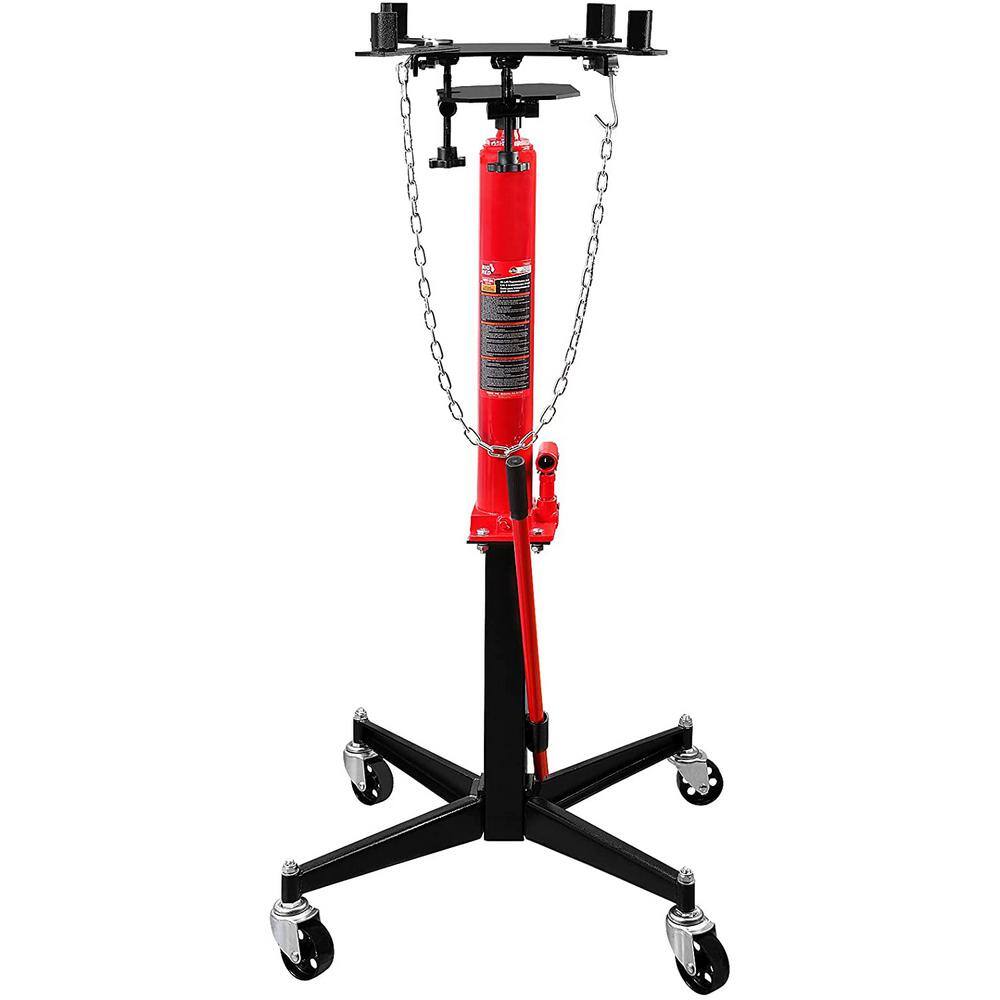

This 1/2-Ton capacity pedestal transmission jack has all the quality features you want. Durable steel, dipped enamel finish and 49.6 in. to 68.7 in. H lift range. Rolls smoothly under hoisted vehicle, making it easy to remove or install any transmission from car or light truck, manual or automatic. Designed to use with in-ground and above-ground lifts. Release valve for control of lowering. Adjustable saddle with corner brackets and safety chains. Hardware and instructions included. Saddle adjusts to fit any transmission, safety chain tilts forward, backward and side-to-side, 1-piece jack handle, stable 39-1/2 in. x 39-1/2 in. 4-leg base and 3 in. steel wheels swivel full 360°on ball bearing casters.

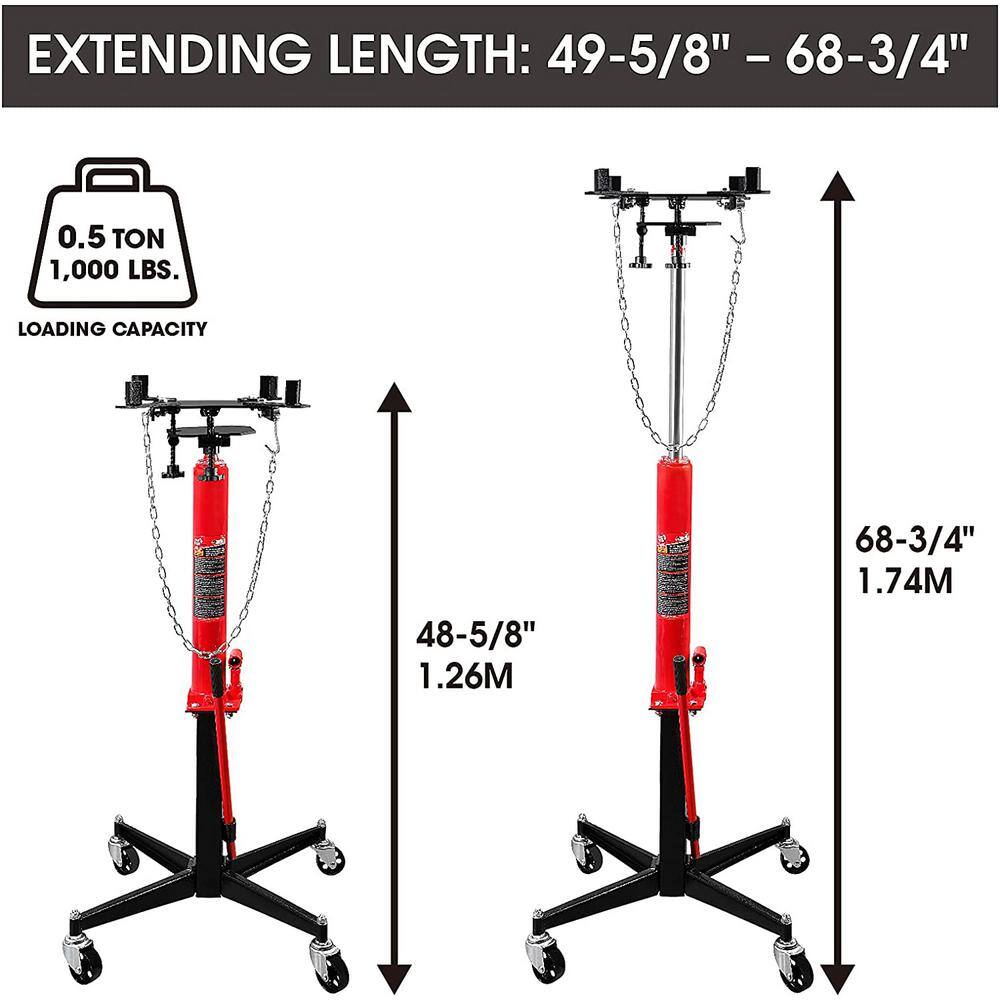

• 1/2 ton capacity pedestal transmission jack with 49.6 in. to 68.7 in. H lift range
• Durable steel and dipped enamel finish
• Designed to use with in-ground and above-ground lifts and easy to remove or install any transmission from car or light truck, manual or automatic

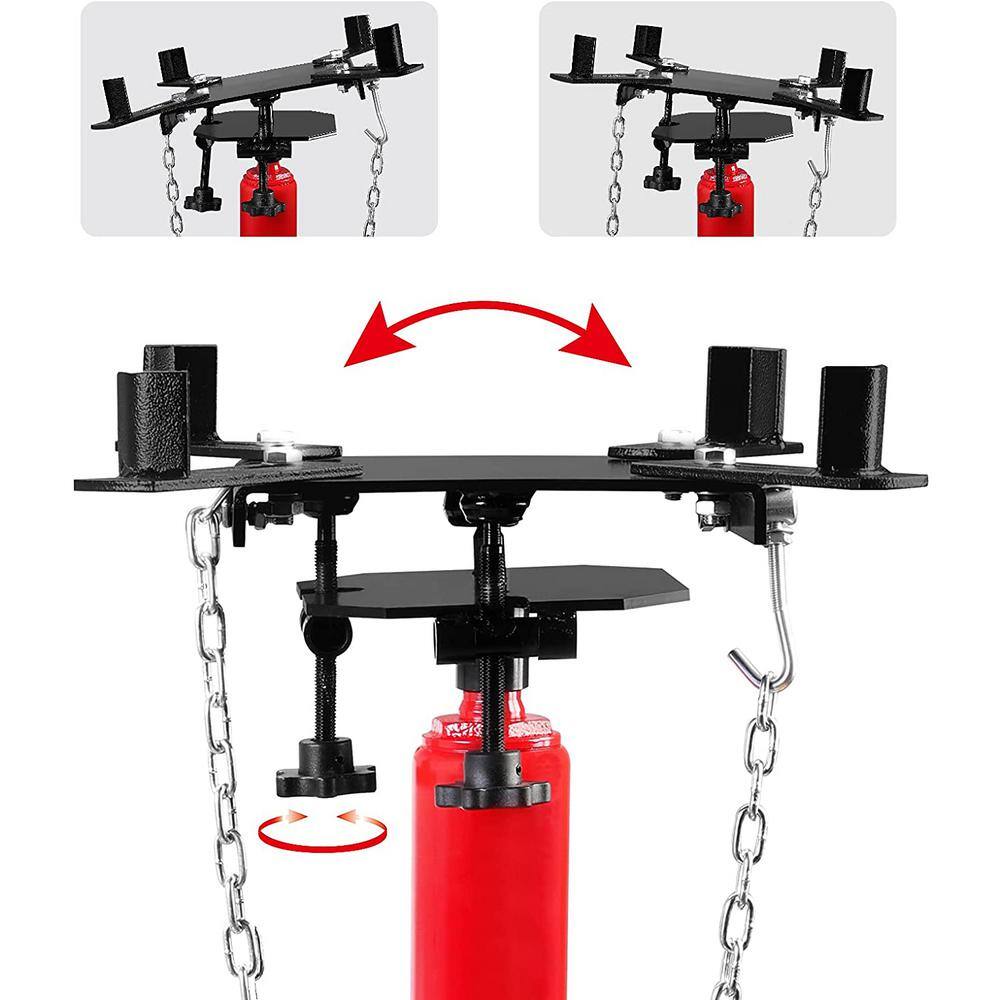

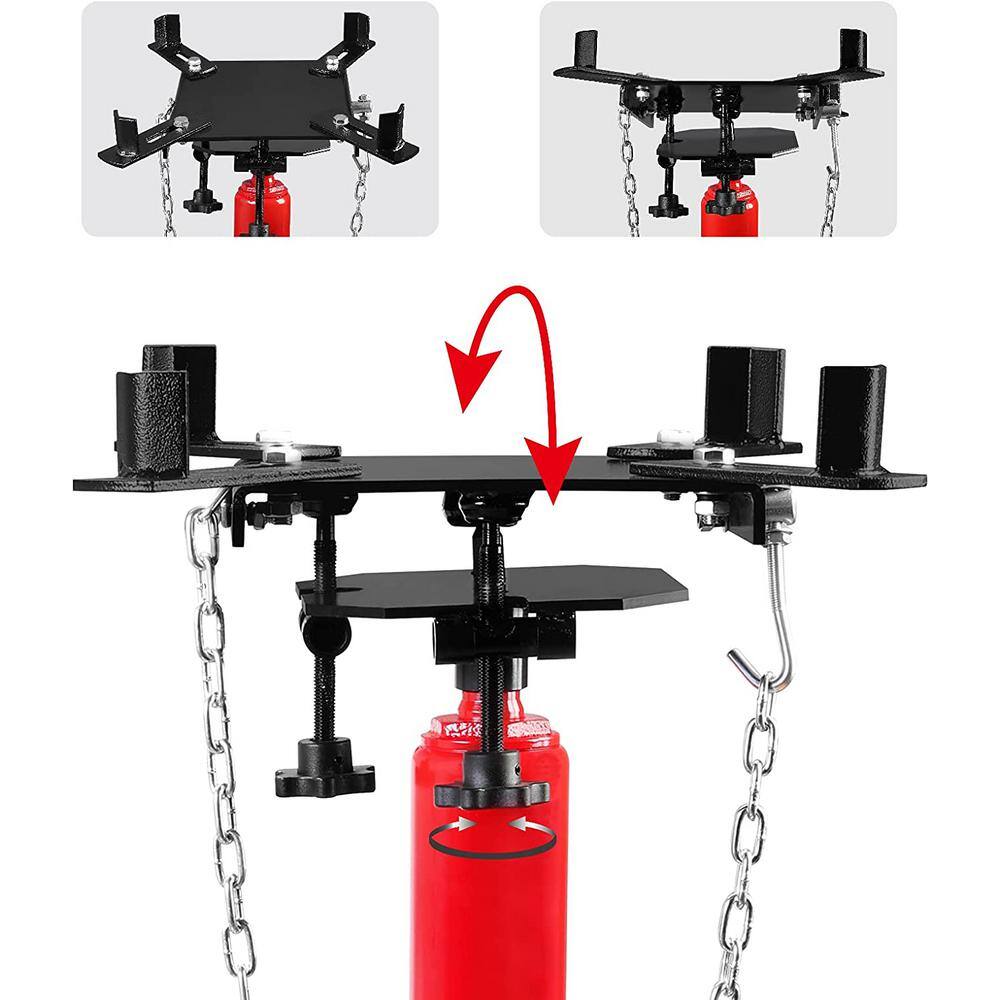

• Saddle adjusts to fit any transmission and safety chain tilts forward, backward and side-to-side

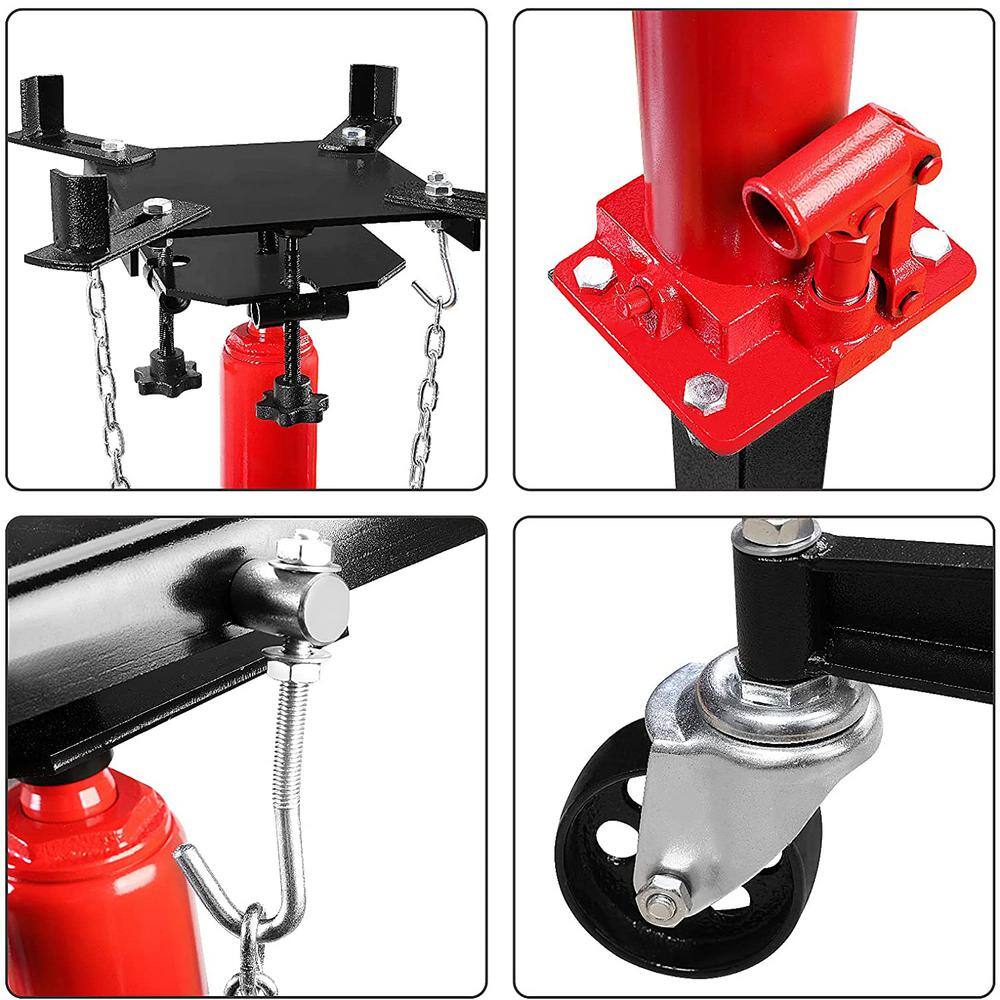

• 4-leg base with 3 in. steel wheels that swivel full 360° on ball bearing casters
• California residentssee Prop 65 WARNINGS



Dimensions

Base Length (in.)	39.50	Base Width (in.)	39.50
Collapsed height (in.)	49.63	Handle Length (in.)	22.83 in
Product Depth (in.)	26 in	Product Height (in.)	7.50 in
Product Width (in.)	16.10 in

Details

Features	Rust Resistant	General Part Type	Transmission Jack
Ideally Used For	General, SUV, Truck	Included	Brackets, Casters, Handle, Hardware, Hydraulic Jacks, Mounting Hardware
Material	Steel	Maximum Lift Height (in.)	69 in
Mechanism type	Hydraulic	Minimum Lift Height (in.)	69
Product Weight (lb.)	58 lb
Tilt Capacity Back (degrees)	0	Tilt Capacity Front (degrees)	0
Tilt Capacity Side (degrees)	0	Weight Capacity (lb.)	1000 lb

Warranty / Certifications

Manufacturer Warranty	Limited 1 Year Manufacturer Warranty

Manuals and Support

• Instructions / Assembly
