California Air Tools 10020CHAD 10 Gal. 2.0 HP Ultra-Quiet and Oil-Free Electric Stationary Air Compressor with Auto Drain
$581.25
- Designed as one of the quietest air compressors in the industry
- Oil-free pump 3000 hours before service
- Steel tank for easy transporting
-
Free shipping -
Estimated Delivery: 5-10 days -
Pickup not available
California Air Tools 10020CHAD 10 Gal. 2.0 HP Ultra-Quiet and Oil-Free Electric Stationary Air Compressor with Auto Drain

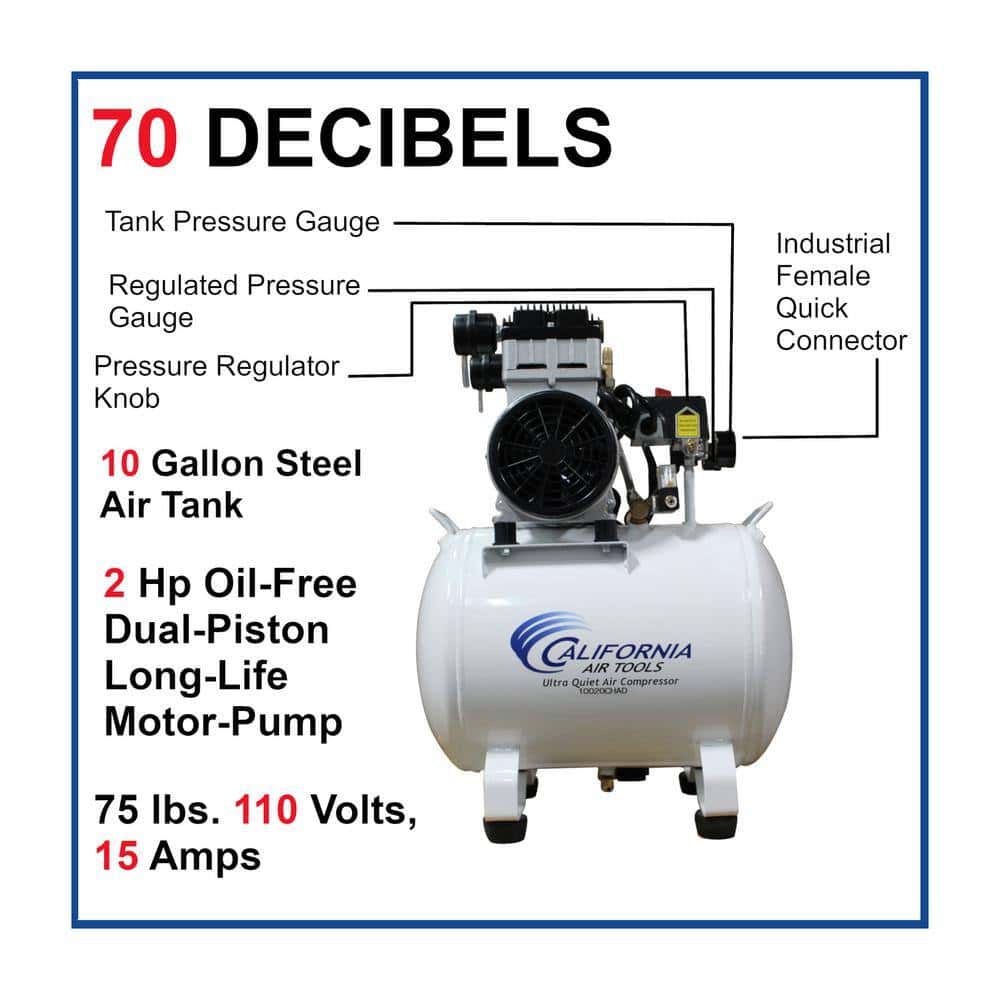

The California Air Tools 10020CHAD ultra quiet and oil-free air compressor is designed to be one of the quietest 2.0 HP air compressors in the industry having only 70 decibels of sound. The powerful 2.0 HP motor operates at only 1680 RPM creating less noise and less wear. SP series of ultra quiet air compressor motors have been designed to increase duty cycle and allow for longer continuous run times. The oil-free dual piston pump system is engineered for high performance and durability. The CAT-10020CHAD air compressor has a oil-free dual piston pump designed to have a life cycle before wear of 3000 plus hours compared to other comparable air compressors with life cycles of 500-hours or less. The easy start valve feature allows for a easier start up using less starting amps. The easy start valve releases a small amount of air from the pump at start up to produce a no-load condition allowing the motor to spin freely. This no-load start up requires less amps for a easier start up in cold temperatures. The large low profile 10 Gal. steel horizontal air tank makes storing under a bench, desk or shelf very easy. The factory installed California Air Tools EZ-1 Automatic DrainValve has been designed to eliminate manually draining your air compressor air tank. The 10020CHAD is designed for the person looking for power, air flow, less service and maintenance with at least 30% less noise.

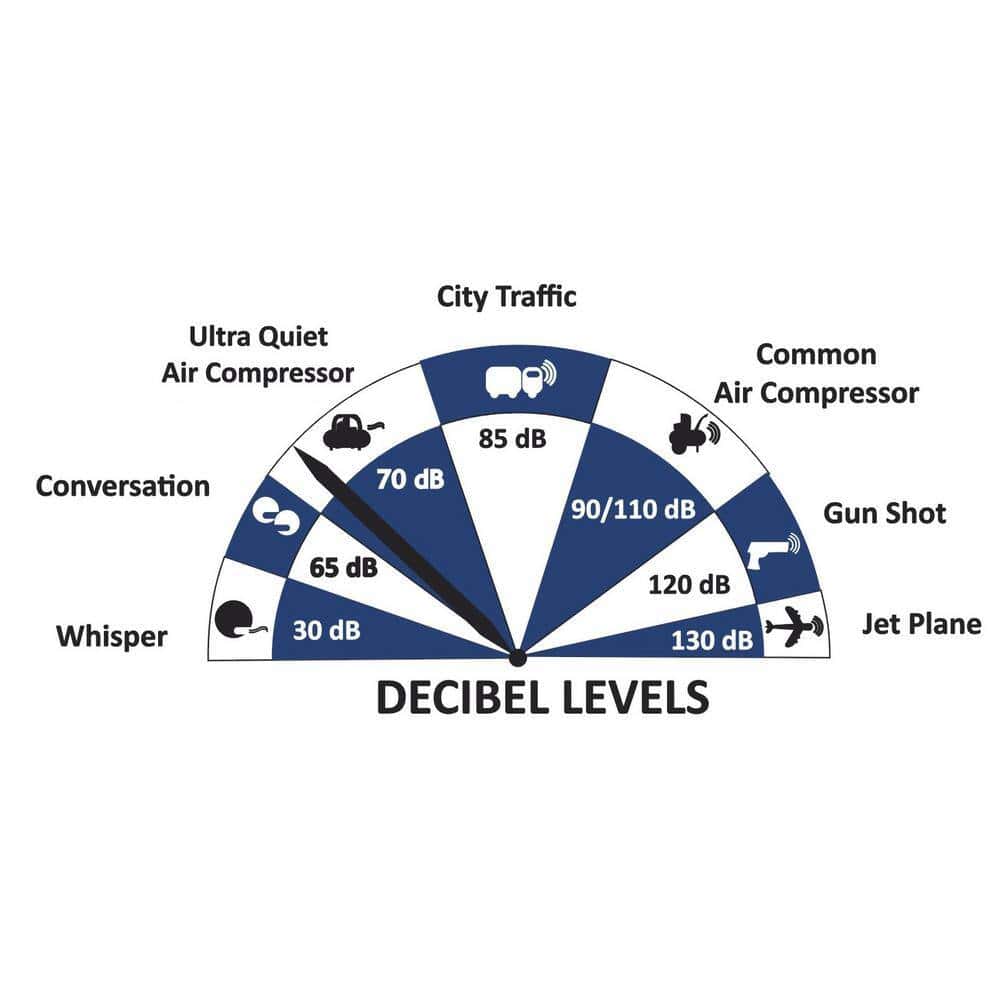

- Ultra quiet only 70 dB
- Oil-free pump cleaner air for better tool operation, less maintenance and costs
- Powerful 2.0 HP motor
- 6.40 CFM at 40 psi and 5.30 CFM at 90 psi
- 125 psi maximum pressure
- 10 Gal. horizontal steel air tank
- EZ-1-2321 auto drain valve factory installed
- 2 pressure control gauges 1 universal industrial 1/4 in. quick connector
- Low amp draw – 14 Amp
- 110-Volt 60 Hz
- Easy start valve – for less starting amperage
- 19 in. L x 15 in. D x 26.5 in. H – 75 lbs.
- Time to fill tank from empty to full – 120-seconds
- Recovery time from 95 psi to 125 psi – 25-seconds
Dimensions
| Product Depth (in.) | 15 in | Product Height (in.) | 26.5 in |
|---|---|---|---|
| Product Width (in.) | 19 in |
Details
| Air Delivery SCFM @ 40PSI | 6.4 | Air Delivery SCFM @ 90PSI | 5.3 |
|---|---|---|---|
| Amperage (A) | 14 A | Application Use | Air Brushing, Blow Cleaning, Bolting, Brad Nailing, Finish Nailing, Framing Nailing, Hobby Nailing, Hobby Painting, Inflation, Roof Nailing, Spraying, Stapling, Surface Prep, Wrenching |
| Battery Amp Hours | No Battery | Charger Included | Charger Not Included |
| Compressor Tank Capacity (gal.) | 10 gal | Compressor Type | Industrial |
| Compressor Volume Rating | Quiet | Compressor/Air Tool Features | Automatic Start/Stop, Household Power Cord, Oil Free Compressor, Tank Pressure Gauge, Universal Quick Connectors |
| Condition | New | Decibel Rating (Outdoor) | 70 dBA |
| Horsepower (hp) | 2 hp | Included | No additional components or accessories are included |
| Lubrication Type | Oilless | Maximum Pressure (PSI) | 125 PSI |
| Number of Total Batteries Included | 0 | Phase Type | 1 Phase |
| Portable | No | Power Source | Electric |
| Power Type | Corded Electric | Product Weight (lb.) | 75 lb |
| Reconditioned | No | Voltage (v) | 110v |
| Stage Count | Single Stage | Tank Material | Steel |
| Tank Style | Horizontal | Tools Product Type | Air Compressor |
| Voltage (V) | 110 V |
| Brand |
|---|
Reviews
There are no reviews yet.
