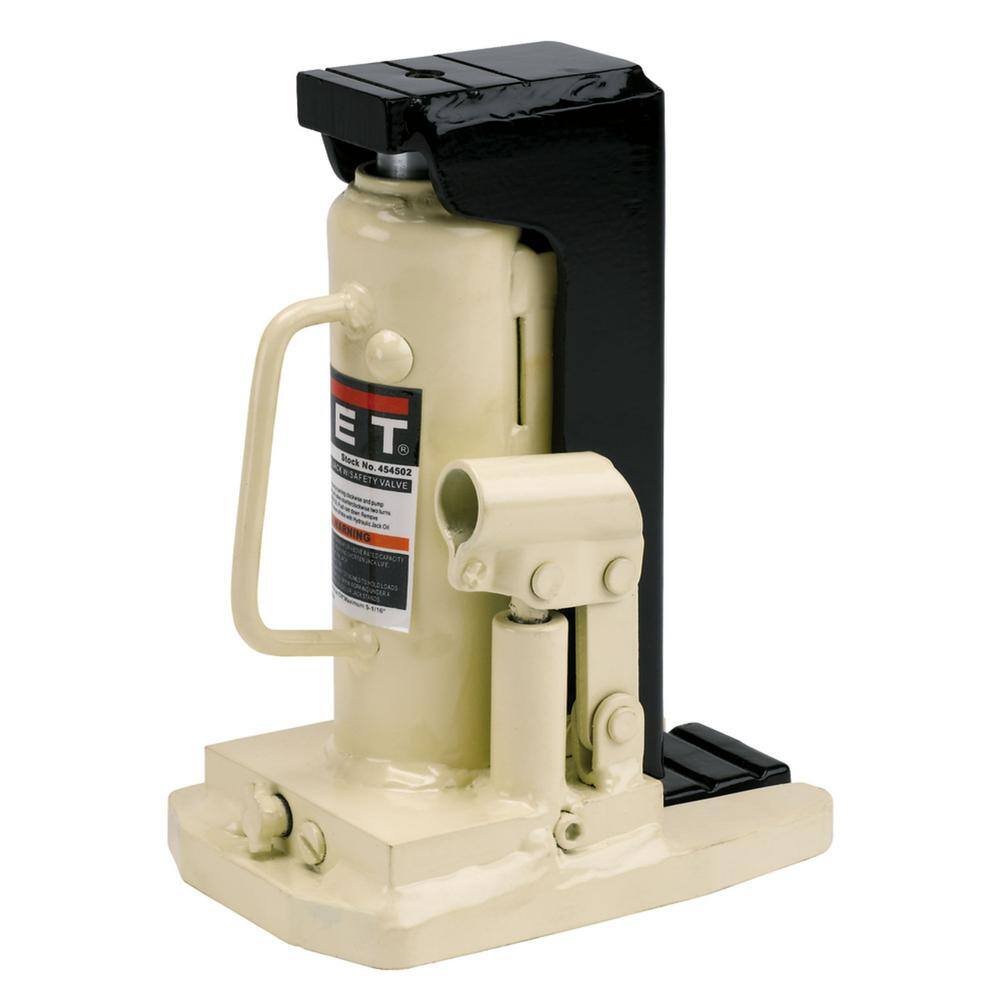

Jet 454502 JTJ 2-Ton Hydraulic Toe Jack

Jet 454502 JTJ 2-Ton Hydraulic Toe Jack

JET JTJ Series Toe Jacks are heavy-duty, industrial, dual purpose jacks. They are designed for lifting loads with low or high clearances. This makes the JET Toe Jack ideal for house moving, machinery installation and applications at shipyards, bridge building, or plant construction sites. JET JTJ Series Toe Jacks comply with ANSI/ASME B30.1 standards.

• Dual purpose jack designed for low or high clearances increases versatility
• Overload protection valve prevents lifting loads past maximum capacity
• Electric welded bases and cylinders virtually eliminating leaks for proven reliability
• High or low extreme temperature fluctuations do not affect jack performance increasing durability
• Heat treated piston resists corrosion
• Lifting, pushing, spreading, bending, pressing or straightening capabilities for multi-function use
• Pump handle included
• Complies with ANSI/ASME B30.1 standards

Dimensions

Base Length (in.)	4.3125	Base Width (in.)	7
Collapsed height (in.)	9.25	Handle Length (in.)	25.375
Product Depth (in.)	8 in	Product Height (in.)	10 in
Product Width (in.)	5.5 in

Details

Features	No Additional Features	General Part Type	Bottle Jack
Included	Handle	Material	Steel
Maximum Lift Height (in.)	14	Mechanism type	Hydraulic
Minimum Lift Height (in.)	14	Product Weight (lb.)	20 lb
		Saddle Diameter (in.)	2
Weight Capacity (lb.)	4000 lb

Warranty / Certifications

Manufacturer Warranty	2 Years

Manuals and Support

• Warranty
• Use and Care Manual
